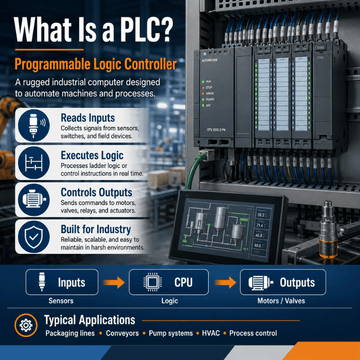

What is a PLC? In industrial automation, a PLC is a programmable logic controller: a rugged digital control device that reads field signals, runs stored logic, and switches outputs to control machines, lines, pumps, panels, and safety-related support equipment.
This article is about the industrial controller meaning of PLC. It is not about a public limited company, a school learning community, or a business legal structure. If you are checking a spare part, replacing a failed CPU, or trying to understand a control panel, the PLC is often the device that turns sensor status into machine action.
Quick Specs: PLC
- Full name: programmable logic controller.
- Main job: read inputs, run logic, update outputs.
- Common field signals: 24 VDC, 120 VAC, 4-20 mA, 0-10 V.
- Common links: Ethernet/IP, Modbus, Profinet, serial networks, vendor backplanes.
- Typical related devices: HMI panels, sensors, drives, relays, remote I/O, SCADA systems.
For buyers, the useful question is not only "what is a PLC?" It is also "which PLC, with which inputs and outputs, for which machine, on which network, and with what downtime risk?" That is where a definition turns into a real sourcing or replacement decision.
What Is a PLC? Programmable Logic Controller in Industrial Automation
A PLC is an industrial control system component with user-programmable memory. It stores instructions for I/O control, logic, timing, counting, PID control, communication, arithmetic, and data handling. In plain terms, it watches the machine, makes decisions from its program, and tells devices what to do next.
Historically, PLCs began as relay-replacement controllers in the late 1960s, but today's controller can act as an industrial computer inside a larger automation system. The PLC still has one core job: keep input and output devices tied to reliable machine logic for industrial processes.
Unlike a desktop computer, a PLC is built for panels, machines, and plants. It is expected to run for long periods, tolerate electrical noise better than office hardware, and work with industrial signal wiring. Small units can control one compact machine. Modular PLCs can support remote racks, many I/O modules, networked drives, and plant-level data systems.
In an iTrustbot context, that matters because the part number on the CPU, power supply, expansion rack, or I/O card often decides whether a repair is quick or difficult. If the original part is obsolete, you may need a tested replacement, a matching family module, or a quote for a compatible part from brands such as Omron, Mitsubishi, or Schneider Electric.
How Does a PLC Work From Input to Output?
Most PLCs follow a repeated scan. The exact timing depends on the CPU, program size, network load, and module family, but the sequence is easy to picture.
- Read inputs: the controller checks sensors, switches, pushbuttons, encoders, and analog transmitters.
- Run the program: the CPU compares those signals with stored logic, timers, counters, setpoints, and safety interlocks.
- Update outputs: the output modules switch solenoids, lamps, contactors, valves, relays, alarms, or drive commands.
- Communicate: the unit may send data to an HMI, SCADA system, drive, remote I/O rack, or data gateway.
- Repeat: the scan starts again, often fast enough that the machine appears to react instantly to normal operators.
Take a conveyor example. A photoelectric sensor sees a carton, the PLC input changes state, the program checks whether the downstream lane is clear, and the output starts a motor starter or drive. If a jam switch turns on, the controller can stop the motor, set an alarm bit, and show a message on the HMI panel.
Engineering note: Do not size a replacement only by "number of points." A 16-point digital module and a 16-point analog module solve very different problems. Voltage, current range, sourcing/sinking logic, isolation, update rate, terminal type, and network family can all change the quote.
One practical shortcut is to follow the signal path from the field device to the input terminal, from the input image to the program instruction, from the output bit to the output module, and from the terminal back to the actuator that should move.
Output signals deserve the same care as input signals. A controller may read a switch correctly and still fail to move the machine if the output module type, load current, or interposing relay is wrong.
What Does a PLC Consist Of?
A PLC control system is a set of parts, not just one box. The table below gives the buyer-level view.
| Part | What it does | Quote detail to collect |
|---|---|---|
| CPU | Runs the program, memory, scan cycle, and communication tasks. | Exact model, firmware range, memory size, network ports. |
| Power supply | Feeds the rack, CPU, and modules from AC or DC input power. | Input voltage, output rating, rack family, connector type. |
| Digital input module | Reads on/off signals such as 24 VDC sensors, limit switches, and pushbuttons. | Point count, voltage, sourcing/sinking type, terminal style. |
| Digital output module | Switches on/off loads such as relays, lamps, solenoids, and alarms. | Relay, transistor, or triac output; load current; voltage. |
| Analog input module | Reads variable signals such as 4-20 mA pressure or 0-10 V position feedback. | Signal range, channel count, resolution, isolation needs. |
| Analog output module | Sends variable commands to valves, drives, and process devices. | Signal range, load type, channel count, wiring method. |
| Communication module | Connects the rack to Ethernet, serial, fieldbus, remote I/O, or another controller. | Protocol, port type, node address, network speed. |
| HMI or operator panel | Shows alarms, status, recipes, and operator controls. | Screen model, software project, cable, protocol. |
| Field devices | Provide the real-world signals: sensors, drives, valves, motors, and switches. | Device model, signal type, supply voltage, failure symptoms. |
If you are replacing an older system, take photos of the whole rack, module labels, side labels, terminals, and the cabinet nameplate. That simple record can reduce quote back-and-forth when you contact iTrustbot for a PLC part quote.
Labels matter. When the printed model number on the CPU differs from the label on a removable communication card, quote the device as a set and include both numbers, because the card may be the part that keeps the old line talking to the rest of the plant.
What Are PLC Inputs and Outputs?
PLCs work with both discrete and variable signals. Digital I/O is on/off. Analog I/O is a measured range. A machine often needs both.
| Signal type | Example | Common range | Buyer risk |
|---|---|---|---|
| Digital input | Door switch, part-present sensor | 24 VDC or 120 VAC | Wrong sourcing/sinking type can prevent the input from turning on. |
| Digital output | Alarm lamp, solenoid valve, interposing relay | 24 VDC, 120 VAC, relay contact | Wrong current rating can damage the output. |
| Analog input | Pressure transmitter, temperature signal | 4-20 mA, 0-10 V | Wrong range gives bad readings or flatlined values. |
| Analog output | Valve command, VFD speed reference | 4-20 mA, 0-10 V | Wrong output range can command the wrong speed or position. |
| Remote I/O | Panel near machine, networked back to CPU | Protocol-specific | Network family and firmware can matter as much as point count. |
When a request says "PLC module needed," the fastest next question is usually: input or output, digital or analog, how many channels, and what voltage or signal range?
PLC Programming Basics: Ladder Logic, Function Blocks, and Structured Text
PLC programming is the method used to tell the controller what to do with signals. A buyer does not need to write code to purchase a replacement module, but a basic view helps you avoid mismatched parts.
PLCopen describes IEC 61131-3 as a standard that defines programming languages for programmable controllers, including Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, and Sequential Function Chart. In everyday maintenance discussions, you will most often hear ladder logic, function blocks, and structured text.
PLC programs are usually stored and backed up as project files, not just as printed drawings. You may also see function block diagrams on systems that group repeatable control actions into reusable blocks.
What is ladder logic?
Ladder logic is a graphical programming style that looks similar to electrical relay diagrams. Inputs and conditions appear on rungs, and outputs or instructions appear at the end of those rungs. This made PLCs easier for electricians and maintenance teams to adopt because the logic view matched familiar control drawings.
Function blocks are common when a machine needs repeatable control blocks, such as timers, counters, PID instructions, or drive commands. Structured Text is more text-based and can be useful for math, loops, data handling, and more compact logic. The best language depends on the controller family, site standard, and support team.
PLC vs HMI, SCADA, DCS, Relay Control, Microcontroller, and Industrial PC
Many purchase mistakes start with naming confusion. A PLC may be installed beside several other devices that are all part of the control system. NIST places PLCs, SCADA systems, DCS systems, and other control configurations inside the wider OT/ICS security and reliability context.
| Device type or system | Main role | Common buyer confusion |
|---|---|---|
| PLC | Runs machine logic and controls I/O. | The CPU is mistaken for the whole panel. |
| HMI | Lets operators view alarms and enter setpoints. | The screen is mistaken for the controller. |
| SCADA | Monitors and supervises wider processes or sites. | Software platform is confused with field control hardware. |
| DCS | Controls large process systems with distributed controllers. | Used as a catch-all term for any plant control system. |
| Relay control | Uses hardwired contacts and coils for fixed logic. | May be confused with PLC ladder logic because diagrams look related. |
| Microcontroller | Embedded chip used inside products and boards. | Not normally a drop-in plant-floor controller. |
| Industrial PC | Runs PC-based control, data, or visualization applications. | May be paired with a PLC rather than replacing it. |
| Remote I/O | Extends input and output points near the machine. | Can be mistaken for a standalone PLC. |
| Drive or servo controller | Controls motor speed, torque, or position. | Often receives commands from a PLC but is a separate device. |
For a wider view of how controllers, sensors, drives, and panels fit together, read iTrustbot's guide to industrial automation and control systems.
The HMI is often the operator interface, while the controller keeps the real-time logic close to the machine wiring.
The 9-Point Signal-to-Scan PLC Selection Matrix
The 9-point Signal-to-Scan PLC Selection Matrix is a practical way to turn a vague request into quote-ready information. Use it before replacing a CPU, buying spare I/O, or deciding whether a repair, refurbished part, or new stock makes sense.
| Selection factor | What to check | Why it changes the part choice |
|---|---|---|
| 1. Existing family | Brand, series, exact model, rack size. | Most modules are family-specific and backplane-specific. |
| 2. CPU class | Memory, ports, firmware, motion or process features. | A lower CPU may not run the existing project or network load. |
| 3. Digital I/O count | Total 24 VDC or 120 VAC inputs and outputs. | Point count and wiring type decide the module family. |
| 4. Analog channels | 4-20 mA, 0-10 V, RTD, thermocouple, or special module. | Analog mismatch can break measurement or control quality. |
| 5. Network protocol | Ethernet/IP, Modbus, Profinet, serial, or vendor network. | Communication protocols, cards, and firmware must match the plant network. |
| 6. Scan and response needs | General machine logic, fast counting, motion, or process loop. | Some jobs need high-speed counters or motion modules. |
| 7. Panel environment | Cabinet space, heat, dust, vibration, IP rating, terminal access. | Physical fit can block an otherwise correct part. |
| 8. Lifecycle status | Active, mature, discontinued, or obsolete line. | Legacy status affects lead time, substitute options, and risk. |
| 9. Downtime window | Same-day need, planned shutdown, or stock replenishment. | Urgency affects whether to choose in-stock, tested, or alternate parts. |
If you already know the brand family, start with the relevant collection: Omron PLC parts, Mitsubishi automation parts, Schneider Electric parts, or top-rated industrial automation parts. If the machine is down and the label is hard to read, send photos through the contact page or request a quote with all visible numbers.
When a PLC Problem Is a Hardware, Wiring, Program, or Field Device Issue
When a machine stops, the controller is not always the failed part. Before buying a replacement, separate the problem into four buckets.
- Hardware: CPU fault LED, bad power supply, failed I/O channel, damaged terminal, battery or memory issue.
- Wiring: loose terminal, broken conductor, missing common, wrong voltage, electrical noise, shield problem.
- Program: bad permissive, timer value, changed setpoint, lost recipe, or incorrect downloaded project.
- Field device: sensor, valve, drive, motor, switch, or actuator sending the wrong signal.
For deeper fault isolation, use iTrustbot's PLC troubleshooting guide. This article stays focused on what the controller is and what to gather before selecting or sourcing parts.
What Is the Future of PLCs as Factories Add IIoT, MQTT, and Data Systems?
Yes. PLCs still sit close to the machine because deterministic machine control is different from dashboards, cloud analytics, and enterprise reporting. Modern plants may add edge gateways, OPC UA, MQTT, historians, and asset platforms, but the field I/O still needs a reliable controller near the process.
Modern PLCs may share selected data with higher systems, but not every old or compact unit is ruggedized for the same environment, network design, or firmware support window. That is why replacement work starts with the exact part number and the installed application, not the acronym alone.
CISA notes that industrial control system environments often include legacy technology and brownfield deployments where newer tools are added to existing infrastructure. That is why PLC replacement decisions often involve both old hardware compatibility and newer data requirements.
The OPC Foundation describes OPC UA and MQTT as a common pairing for IoT expansion, with gateways bridging on-premises industrial networks and cloud networks. In practice, that usually means the PLC continues handling machine logic while another layer publishes data, stores history, or sends selected values to business systems.
Keep control and reporting roles separate when you plan upgrades: a dashboard can show a pressure trend from the last 30 days, but the controller still has to react correctly when a live input changes, a permissive drops out, or an output should be forced off during a fault.
Are PLCs still widely used?
For many factories, yes. A PLC is still a sensible choice when the job involves real-world I/O, electrical panels, machine interlocks, serviceable modules, and support from maintenance staff. The device may be older than the reporting system above it, but it may still be the control layer the line depends on.
What Are the Benefits of a PLC and Its Limitations?
| Area | Advantage | Limitation |
|---|---|---|
| Machine control | Good fit for repeated signal-based control. | Not a substitute for every PC or database task. |
| Maintenance | Modules, terminals, and status LEDs help field teams isolate faults. | Software access and backup files may be needed for CPU replacement. |
| Lifecycle | Many families run for years in stable production lines. | Legacy units can become hard to source quickly. |
| Expansion | Modular racks and remote I/O can grow with a machine. | Rack, firmware, and network rules can limit mix-and-match changes. |
| Data | Can share selected values with HMI, SCADA, gateways, and historians. | Older systems may need bridge hardware or protocol conversion. |
PLC Buying Checklist Before You Request a Quote
Before contacting a supplier, collect these details. They help separate a true match from a near miss.
- Brand, series, and exact model from the front and side labels.
- CPU, power supply, rack, and every I/O module part number.
- Digital and analog channel count, including spare channels.
- Input voltage, output type, and signal range.
- Network protocol and any communication module number.
- Photos of wiring terminals, module order, and fault lights.
- Whether the machine has a current program backup.
- Downtime window and whether tested used, refurbished, or new stock is acceptable.
- Target delivery location and any plant approval rules.
iTrustbot supplies industrial automation parts across PLCs, touch screens, sensors, motors, and related components, with a focus on sourcing parts for current and legacy systems. If you are unsure whether a part is the right match, use the request a quote page and include photos.
FAQ
Q: What is a PLC in simple terms?
A PLC is a machine controller. It reads signals from sensors and switches, follows a stored program, and turns outputs on or off to control motors, valves, lights, alarms, and other devices.
Q: What does PLC stand for?
PLC stands for programmable logic controller. In this article, PLC means an industrial controller, not a public limited company or education term.
Q: What are the three main types of PLC?
People often group PLCs as compact, modular, and rack-mounted systems. Compact units fit smaller machines. Modular and rack systems support more I/O, networks, and expansion.
Q: What is the difference between a PLC and an HMI?
The PLC runs the machine logic. The HMI is the operator screen used to view status, alarms, recipes, and settings. Many systems need both.
Q: What is the difference between a PLC and SCADA?
A PLC controls equipment near the machine. SCADA supervises wider systems, collects data, shows trends, and can send commands to controllers across a plant or site.
Q: What does a PLC cost?
Cost depends on brand, CPU family, I/O count, lifecycle status, condition, accessories, and delivery urgency. A bare relay-style unit and a rack CPU with many modules are not the same quote.
Q: Can a PLC be repaired?
Sometimes. A fault may come from a power supply, I/O card, wiring issue, field device, or CPU. If the controller hardware is damaged or obsolete, a tested replacement may be faster than board-level repair.
About This Analysis
This guide was written for industrial automation buyers and maintenance teams researching PLC basics before checking parts or requesting a quote. It uses public references from NIST, CISA, PLCopen, ISA, OPC Foundation, and iTrustbot site pages. No private plant data or customer repair records were supplied.
