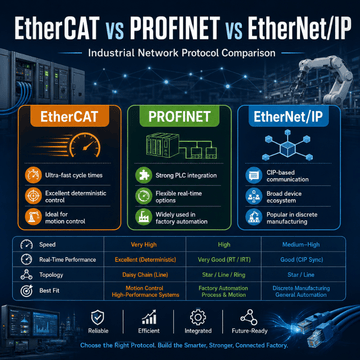

EtherCAT vs PROFINET vs EtherNet/IP: Industrial Network Protocol Comparison

Choosing between EtherCAT, PROFINET, and EtherNet/IP is rarely an abstract decision — it is shaped by the PLC sitting in your control cabinet, the cycle time your motion axis demands, and whether your plant wants a Siemens-coloured cabinet or a red Allen-Bradley one. According to the HMS Networks 2025 industrial network market shares report, PROFINET now holds 27% of new node installations, EtherNet/IP holds 23%, and EtherCAT 17% — together about two-thirds of every new fieldbus node shipped. This guide compares ethercat vs profinet vs ethernet/ip across cycle time, topology, vendor ecosystem, functional safety, and cross-protocol gateways, then closes with a decision matrix that maps each protocol to specific applications.

Quick Specs: EtherCAT vs PROFINET vs EtherNet/IP

• Fastest cycle time — EtherCAT at 31.25 µs (TSL Automation; ETG comparison whitepaper)
• Largest 2025 market share — PROFINET at 27% of new automation nodes (HMS Networks 2025)
• Default protocol for Allen-Bradley plants — EtherNet/IP, CIP-based
• Standards bodies — EtherCAT Technology Group (ETG), PROFIBUS & PROFINET International (PI), ODVA
• Common safety profiles — FSoE, PROFIsafe, CIP Safety, all SIL 3 capable per IEC 61508
• Industrial Ethernet share of new factory nodes in 2025 — 79% per HMS Networks

Industrial Ethernet Protocols at a Glance: 2025 Market Reality

Industrial Ethernet has stopped being the future of factory networking. It is the present. According to HMS Networks' 2025 Industrial Network Market Shares report, 79% of new factory automation nodes ship with an industrial Ethernet protocol rather than a legacy fieldbus such as PROFIBUS or DeviceNet. Three protocols lead that wave: PROFINET at 27% share (up four percentage points from 2024), EtherNet/IP at 23% (up two points) and EtherCAT at 17% (up one point). Modbus TCP retains a meaningful slice through universal compatibility rather than performance.

Mordor Intelligence's 2025 industrial Ethernet report puts PROFINET at 24.72% of the broader industrial Ethernet pie when measured by hardware revenue rather than node count, with the same three protocols dominating. Global Market Insights values the industrial Ethernet market at USD 9.8 billion in 2025 and projects a 7.9% CAGR through 2035, driven by IT/OT convergence, robotic cell expansion, and the displacement of serial fieldbus in retrofits.

For buyers, the takeaway is straightforward: the protocol you choose today will likely outlive the PLC running it. The good news is that all three leaders have stable governance, mature ASIC supplies, and active TSN-profile work in progress.

How Each Protocol Works: Architecture and Communication Models

Industrial Ethernet is a misleading umbrella. The three protocols share Cat 5e/6 cabling and 802.3 framing, but the way frames are interpreted on the wire is fundamentally different. Understanding the architecture is what stops you misreading datasheets when comparing devices from Omron Sysmac PLCs, Beckhoff CX controllers, or Allen-Bradley CompactLogix racks.

What Is EtherCAT and How Does "Processing on the Fly" Work?

EtherCAT — Ethernet for Control Automation Technology — was published by Beckhoff Automation in 2003 and is now stewarded by the EtherCAT Technology Group. Its defining trick is "processing on the fly": a single Ethernet frame leaves the master, threads through every slave node in a logical line or ring, and each slave reads its inputs and writes its outputs while the frame is still in flight. There is no store-and-forward stage, no per-node protocol stack, and no need to repackage telegrams. Each slave device implements the protocol in a dedicated ASIC such as the Beckhoff ET1100, which is why third-party EtherCAT slaves are typically engineered around an off-the-shelf chip rather than a software stack. An EtherCAT coupler unit like the Omron NX-ECC202 is a typical example: it acts as the EtherCAT slave for a downstream NX I/O system.

What Is PROFINET and How Do RT and IRT Differ?

PROFINET — Process Field Network — is the Ethernet successor to PROFIBUS, governed by PROFIBUS & PROFINET International (PI). It uses an IO-controller / IO-device model. PROFINET RT (Real-Time) prioritises traffic at Ethernet layer 2 and reaches 1 ms cycle times; PROFINET IRT (Isochronous Real-Time) reserves bandwidth on PROFINET-aware switches and reaches 250 µs cycles, suitable for synchronised motion. Discovery uses DCP (Discovery and Configuration Protocol), which automatically resolves device names without DHCP. PROFINET's specification is fully open — vendors can implement the protocol without licensing friction, which is one reason TIA Portal's third-party device library is so deep.

What Is EtherNet/IP and Why Is CIP at Its Core?

EtherNet/IP runs the Common Industrial Protocol (CIP) over standard TCP/UDP/IP. CIP is the application layer; Ethernet/IP is just CIP's Ethernet adaptation, which is why Allen-Bradley engineers often say "CIP" and "EtherNet/IP" interchangeably. ODVA stewards both. Devices use producer-consumer multicast for cyclic I/O and explicit messaging for configuration. Each device ships with an EDS (Electronic Data Sheet) file that the engineering tool — typically Studio 5000 — reads to generate tag-based access. The CIP specification remains partially proprietary despite ODVA's stewardship; in practice that means Rockwell-native devices like the Omron CJ2H EtherNet/IP-enabled CPU and 1734-AENT, 1769-AENTR, 1756-ENBT, 5069-AENTR adapter modules dominate cleanly, while non-Rockwell EtherNet/IP devices vary in CIP conformance.

Speed and Determinism: The Real-Time Performance Showdown

"Which is fastest" is the wrong question. A more useful question is: which protocol meets your cycle time requirement with margin to spare? A bottle-filling line that needs 50 ms is wasted on EtherCAT; a high-speed pick-and-place robot at 32 axes needs every microsecond EtherCAT can deliver. Cross-checked numbers in the table below come from TSL Automation's published benchmarks and the EtherCAT Technology Group's official "Industrial Ethernet Technologies" comparison whitepaper.

Is PROFINET Faster Than EtherNet/IP?

In their default configurations, yes — but only in the IRT class. PROFINET IRT, when running on PROFINET-aware switches, delivers a guaranteed 250 µs cycle with sub-microsecond jitter; EtherNet/IP on standard managed switches typically lands between 500 µs and 10 ms with jitter that spikes under network load. This picture changes once Time-Sensitive Networking (TSN) profiles enter the conversation: ODVA's CIP Safety over TSN and PI's PROFINET over TSN both target sub-millisecond cycles on shared TSN switches by 2027–2028. Until those profiles are widely deployed, choose PROFINET IRT or EtherCAT for any motion-control axis whose loop closes faster than 1 ms.

📐 Engineering Note: Cycle time is meaningless without jitter. A protocol that hits 250 µs on average but spikes to 2 ms once per minute will throw a synchronised conveyor out of phase. Specify both the median cycle time and the 99.9th-percentile worst case in your machine acceptance test, and verify with a hardware tap (Wireshark with a managed mirror port) — not just the PLC's diagnostic counter.

Topology, Cabling, and Hardware Constraints

Industrial Ethernet shares the same Cat 5e/Cat 6 cable and RJ45 or M12-X connector hardware. The differences appear at the topology layer and the switch capabilities required.

EtherCAT uses a logical line — physically a daisy chain or ring with optional branches via junction modules such as the Beckhoff EK1122. "Processing on the fly" means there is no per-node store-and-forward, which is why standard managed switches break the timing.

PROFINET supports star, line, and ring topologies via switched Ethernet. PROFINET RT runs on any managed switch with QoS; PROFINET IRT requires PROFINET-aware switches with hardware-level time slot reservation.

EtherNet/IP behaves like standard Ethernet — star or hierarchical with managed switches. ODVA recommends Device Level Ring (DLR) for fault-tolerant rings; the 1783-ETAP tap is a typical Rockwell DLR component.

Is EtherCAT Routable Through Standard Managed Switches?

No. EtherCAT requires dedicated network segments. Cross-machine communication needs OPC UA gateways, Modbus TCP bridges, or parallel EtherNet/IP networks. This is the most common architectural mistake in greenfield design — engineers specify a single managed switch backbone and then discover that EtherCAT cells cannot share it. Plan EtherCAT segmentation during machine design: each EtherCAT cell sits behind a master controller that exposes summary data via a second protocol on the plant backbone. Industrial-grade managed industrial Ethernet switches are still the right backbone, but they sit upstream of the EtherCAT cell, not inside it.

Vendor Ecosystems and PLC Lock-In Reality

In practice, the protocol decision is made the moment the PLC brand is chosen. The tooling — Studio 5000, TIA Portal, TwinCAT — assumes its native protocol, and adding a foreign protocol to a brownfield cell typically costs more in commissioning hours than the gateway hardware. Default protocol mapping by PLC family is shown below; nearly every vendor offers gateway adapters for the others, but those add latency and bill-of-materials cost.

Engineers on r/PLC consistently observe that PLC brand drives protocol choice for roughly 80% of plants — the protocol is rarely shopped independently. The exceptions are motion-heavy machine builders who specify Beckhoff or another EtherCAT-native controller specifically because EtherCAT's cycle time is the binding constraint. If your plant uses Mitsubishi PLCs or Schneider Electric PLCs, the native protocol path saves both engineering hours and recurring license costs.

Functional Safety: FSoE, PROFIsafe, and CIP Safety

Each major protocol carries a certified safety profile that runs over the same physical wire as the standard cyclic data. All three reach SIL 3 per IEC 61508, the framework that defines safety integrity levels. There is a catch: safety needs certified hardware on both ends of the link — adding safety to an existing line means controllers, I/O modules, and engineering tools that are explicitly certified.

FSoE (Safe-over-EtherCAT) — defined in IEC 61784-3-12 — overlays a safety container on EtherCAT frames. SIL 3 is achievable end-to-end, with no special routing required because the safety telegrams travel inside ordinary EtherCAT frames. Beckhoff's TwinSAFE family and HMS's Ixxat Safe T100 module are typical implementations.

PROFIsafe — defined in IEC 61784-3-3 — runs over PROFINET and PROFIBUS. SIL 3 capable, governed by PI. Siemens' S7-1500F controllers and ET 200SP-F modules dominate adoption.

CIP Safety — defined in IEC 61784-3-2 — extends CIP over EtherNet/IP (and DeviceNet). SIL 3 capable, stewarded by ODVA. Allen-Bradley GuardLogix controllers and POINT Guard I/O are the reference implementations.

📐 Engineering Note: All three safety profiles support SIL 3 — they are not differentiators on safety integrity. What differentiates them is which safety controller your plant already operates. Mixing safety profiles within a single safety function is not supported by any vendor; gateway between protocols at the standard-data level only.

Cross-Protocol Gateways and Mixed-Vendor Reality

Most plants are not single-protocol. A Beckhoff EtherCAT motion cell sits inside a Rockwell EtherNet/IP plant backbone; a Siemens PROFINET line feeds telemetry to a Schneider Modbus TCP SCADA. Cross-protocol gateways bridge these worlds — at the cost of latency, configuration overhead, and one more failure mode in your acceptance test.

Which Industrial Protocol Has the Lowest Integration Pain in Multi-Vendor Systems?

Modbus TCP wins on raw compatibility — every PLC, drive, HMI, and SCADA package supports it without licensing fees. However, Modbus leaves data typing, byte order, and register addressing partly undefined. One documented horror story: power-factor values where register 400077 bit 6 toggles whether register 400007 should be scaled by ten. That kind of vendor-specific bit manipulation is invisible from datasheets and only appears at commissioning. For purely supervisory data with low timing demands, Modbus TCP is still the right answer. For real-time multi-vendor systems, OPC UA with Companion Specifications is the supervisory layer of choice — but device-level traffic still rides the native protocol of each vendor's PLC.

⚠️ Important: Engineers commonly underestimate gateway jitter when forwarding motion data. A 10 ms cycle time on EtherNet/IP becomes 30–60 ms once it has crossed an EtherNet/IP-to-PROFINET gateway and back. Keep motion loops on a single protocol and use gateways only for non-real-time data exchange — production counters, recipe data, alarm state.

EtherCAT vs PROFINET vs EtherNet/IP: Decision Framework

Below is a matrix mapping common industrial scenarios to a recommended protocol. It is the synthesis of the cycle-time, ecosystem, safety, and gateway analysis above, plus the integration pain points reported on r/PLC and in HMS Networks' 2025 deployment data.

Two patterns surface from this matrix. First, the "right" protocol is rarely a question of which is technically superior — it is a question of which engineering tool your team already runs. Second, mixing protocols inside a single real-time loop is almost always wrong; mixing them at the supervisory layer is normal and well-supported.

Industry Outlook 2026: TSN, OPC UA, and Protocol Convergence

Fieldbus retirement is now well past the halfway point. According to HMS Networks' 2025 share data, industrial Ethernet's combined slice grew four percentage points year over year, with PROFINET, EtherNet/IP, and EtherCAT each posting net positive growth. Time-Sensitive Networking (TSN) is the technology that will shape the next five years. According to DataIntelo's 2025 TSN switch market preview, TSN-capable switch revenue is projected to grow from USD 1.8 billion in 2025 to USD 7.2 billion by 2034 — a 16.7% CAGR, more than twice the 7.9% pace of overall industrial Ethernet (Global Market Insights, 2025).

OPC UA is the parallel story. Future Market Insights values the OPC UA FX market at USD 15.87 billion in 2025, projected to reach USD 37.4 billion by 2036. Mordor Intelligence frames the convergence directly: "Architectures increasingly pair TSN segments with OPC UA." In practice, that means TSN switches carry standard cyclic traffic at sub-millisecond determinism while OPC UA Companion Specifications handle the information modelling for plant-wide data exchange. None of the three protocols compared in this guide are at risk of being replaced by 2030 — they are gaining TSN profiles instead.

"PROFINET, EtherNet/IP, and EtherCAT will all continue to dominate device-level traffic through 2030. The shift is not protocol replacement — it is convergence on a shared TSN physical layer with OPC UA as the supervisory model. Buyers planning capex for 2026–2028 should specify TSN-capable switches even where a non-TSN protocol is in use today."

— industry analyst commentary, IndustrialEthernet.net Special Report 2025: State of Industrial Connectivity

For procurement teams, the actionable conclusion is concrete: if you are issuing RFQs for switch infrastructure between now and 2027, specify TSN-capable hardware even if your current protocol does not yet require it. The incremental cost is small; the cost of replacing every cabinet switch in 2029 is not.

Frequently Asked Questions

Q: Is EtherCAT the same as EtherNet/IP?

No. They share Cat 5e/6 cabling and 802.3 framing but differ at the application layer. EtherCAT uses a master/slave model with processing-on-the-fly through dedicated ASICs; EtherNet/IP runs the Common Industrial Protocol (CIP) over standard TCP/UDP/IP with producer-consumer multicast. EtherCAT targets sub-millisecond motion control; EtherNet/IP targets discrete I/O in Rockwell-centric plants.

Q: Is PROFINET the same as EtherCAT?

No. PROFINET uses an IO-controller / IO-device model with standard switched Ethernet (RT) or PROFINET-aware switches (IRT). EtherCAT uses a logical line topology with custom slave ASICs. PROFINET IRT and EtherCAT can both deliver hard real-time performance, but EtherCAT generally reaches lower cycle times (31.25 µs vs 250 µs).

Q: What are the four main types of industrial communication protocols today?

By 2025 share, the four most-deployed industrial Ethernet protocols are PROFINET (27%), EtherNet/IP (23%), EtherCAT (17%), and Modbus TCP (~5%). Legacy serial protocols — PROFIBUS, DeviceNet, ControlNet, RS-485 Modbus — still exist in installed base but are no longer specified for new installations.

Q: Can Modbus TCP replace PROFINET or EtherNet/IP?

Only for non-real-time data. Modbus TCP is non-deterministic and lacks device diagnostics, integrated safety profiles, and topology features such as DLR or ring redundancy. For supervisory data collection, Modbus TCP works. For machine control with synchronised distributed I/O, PROFINET or EtherNet/IP is required.

Q: When should OPC UA be used instead of Modbus TCP?

OPC UA is the right choice when the data requires complex typing, security certificates, or information modelling — typical of SCADA, MES, and historian integration. Reserve Modbus TCP for simple polling of legacy devices or low-cost sensor monitoring where OPC UA's overhead is unjustified.

Q: Should new systems avoid serial protocols like DeviceNet?

Yes for new installations. Extend existing DeviceNet, ControlNet, or RS-485 Modbus only when wholesale replacement is cost-prohibitive. New installations should use Ethernet-based protocols on managed switches with VLAN segmentation; this preserves the option to add TSN profiles later without re-cabling.

Q: Why does Modbus TCP cause more integration headaches than EtherNet/IP?

Modbus leaves data typing, byte order, and register addressing under-specified. Vendors implement these differently — 0-based vs 1-based register addressing, big-endian vs little-endian within 16-bit registers, vendor-specific bit-flag scaling — which forces device-by-device verification. EtherNet/IP's CIP layer provides standardised data structures and explicit data typing, eliminating most of that ambiguity.
