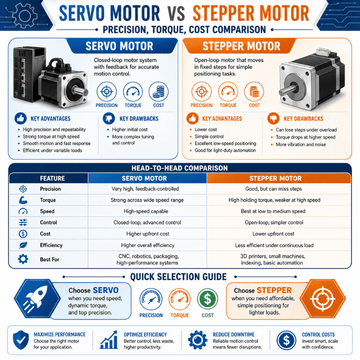

Servo Motor vs Stepper Motor: Precision, Torque, Cost Comparison

Engineers asking servo motor vs stepper motor usually begin with a one-line rule: stepper is cheap, servo is expensive. That heuristic is true about 60 percent of the time—and ships the wrong motor about 40 percent of the time. Your real decision depends on torque-speed behavior under load, your tolerance budget, system-level cost (not motor cost), and whether your machine ever sees variable resistance. This walkthrough explores how each architecture actually works, how the trade-offs actually show up in real CNC, 3D-printer, and robotics builds, and where closed-loop steppers split the difference at about 60 percent of servo system cost.

Quick Specs: Servo vs Stepper at a Glance

• Control loop: open-loop (stepper) vs closed-loop with encoder feedback (servo)
• Step resolution: 1.8° / 200 full steps per rev (typical hybrid stepper) vs continuous rotation (servo)
• Single-step accuracy: ±0.005° (stepper) vs ±0.02° (servo, but corrected by encoder every cycle)
• Standstill torque: Full holding torque while energized (stepper) vs requires brake hardware (servo)
• High-speed torque: Drops sharply past mid-speed (stepper) vs sustained through rated speed (servo)
• Pole count: 100+ (stepper) vs 4–8 (servo)
• Single-axis BOM (NEMA 23 frame, mid-2025 pricing): ~$80–180 open-loop stepper vs ~$400–900 AC servo
• Common frame standards: NEMA 17, NEMA 23, NEMA 34 (both motor types)

How a Stepper Motor Works (Open-Loop Architecture)

A stepper motor translates electrical pulses into accurately defined angular movements. Most industrial steppers are hybrid steppers — a permanent-magnet rotor inside a wound electromagnetic stator with high pole count. DC current energizes stator coils in sequence; with each pulse, the rotor jumps to align with the next energized phase. That classic 1.8° step angle provides 200 full steps per revolution.

Modern stepper drivers add microstepping — dividing each full step into 16, 32, 128, or 256 micro-positions by interpolating sine-shaped current between phases. NEMA 17 steppers at 1/256 microstepping address 51,200 positions per revolution, allowing smooth motion and low audible vibration.

This architecture is fundamentally open-loop: the controller outputs pulses and assumes the motor moved exactly that many steps. There is no feedback confirming the rotor actually arrived. Provided the load remains within the motor's torque envelope, this assumption remains valid. Stepper motors also generate full holding torque while energized, holding position without active braking.

📐 Engineering Note: A typical NEMA 17 hybrid stepper delivers about 40 N·cm holding torque at 12V / 1A continuous draw, with native 1.8° step angle (200 full steps per revolution). NEMA 23 frames step up to about 1.5 N·m rated torque at 24–48V drive voltage.

How a Servo Motor Works (Closed-Loop Architecture)

A servo motor combines a low-pole-count motor with an encoder (or resolver) and a drive controller that operates a closed-loop control system. Most industrial servos use a three-phase brushless AC stator with a permanent-magnet rotor, driven by PWM or sine-wave commutation from the servo amplifier. Inside the drive, the encoder reports actual shaft position several thousand times per second, and the drive's PID control loop continually compares actual to commanded position, fine-tuning current to minimize error.

Modern servo drives employ Field Oriented Control (FOC) — also known as vector control — which decomposes stator current into torque-producing and flux-producing components. FOC delivers smooth torque across the full speed range and clean acceleration, both of which matter when a robot joint or pick-and-place axis has to settle within a few milliseconds.

What makes a servo a servo? Encoder feedback. Resolutions range from 1,024 PPR (entry-level incremental) through 4,096 PPR (mid-tier) to 17-bit absolute encoders, which address 131,072 unique positions per revolution. Higher resolution narrows the closed-loop error band and tightens path-following accuracy on multi-axis coordinated motion. For more detail on how servo systems integrate with drives and controllers, read our complete guide to servo motors and precision motion control.

Servo vs Stepper: The Real Architectural Difference

Strip away the marketing and one line separates them: a stepper assumes commanded steps equal actual motion; a servo measures actual motion and corrects. Everything else — cost, complexity, tuning effort — flows from that single difference.

Failure modes follow from this too. Steppers will silently lose steps under sudden load spikes, mechanical binding, or excessive acceleration. Your controller has no idea. Position error builds up, and on long jobs you finish a part that's off by half a millimeter with no warning. Servos can't lose position the same way — encoder feedback always knows the true position. They have a different fault mode: under heavy disturbance the servo might not catch up fast enough and trigger a following-error fault, but the error is reported, not hidden.

If you're running an existing open-loop stepper machine and want to decide whether you really need a servo upgrade, instrument the existing motor first. Add an external rotary encoder to the output shaft, log commanded steps versus encoder counts at the end of each move, and run a typical cutting cycle for an hour. If the delta remains within one or two steps, your loads are predictable enough that closed-loop is overkill. If you see drift of five to twenty steps per cycle, you have a real missed-step problem and either a closed-loop stepper or a servo is the answer.

Torque Behavior Under Load (Where Steppers Hit a Wall)

On the data sheet, a stepper torque curve looks great at low speed and drops off steeply above mid-speed. The reason is back-EMF: as the rotor spins faster, it generates a counter-voltage that opposes the drive current, reducing the available torque. By the time a NEMA 23 stepper reaches 1,500 rpm, the useful torque is down to about twenty percent of its low-speed number. By 3,000 rpm, there's pretty much nothing left to do useful work.

Servos are designed for the opposite envelope. Using encoder feedback and FOC, a properly sized servo holds rated torque from zero through its rated speed, and most servo drives can supply two or three times rated torque for short transient overloads — useful for accelerating heavy payloads on a pick-and-place arm or driving a CNC axis through a sudden change in cut depth.

Practitioners on desktop CNC forums commonly report stepper torque collapse around 1,200–1,500 rpm under aggressive aluminum feed rates — a threshold that often forces a servo upgrade rather than a larger stepper, because doubling the motor frame mostly extends the low-speed portion of the curve, not the high-speed portion. One place steppers genuinely beat servos on torque is standstill: full holding torque while energized, no brake hardware, no power-off drift. For positioning systems that pause and grip, that is a real advantage.

Precision and Repeatability: The ±0.005° vs ±0.02° Trap

The spec sheets show a stepper as more accurate than a servo. A 200-step stepper at full step is ±0.005° per step, while a typical servo's quoted single-step accuracy sits closer to ±0.02°. Engineers see those figures and conclude steppers are the precision choice. That conclusion is backwards in most real-world applications.

Per-step accuracy describes one isolated movement. What matters in actual machining and motion control is cumulative position error over a full cycle under load. A stepper that spec'd at ±0.005° per step but loses four steps to a torque overload during a 10,000-step move is now off by 0.02° with no way to detect or recover. A servo that's ±0.02° per step but corrects every PID cycle from a 17-bit encoder reading holds total accumulated error to roughly the encoder resolution — about ±0.0028° on a 131,072-position absolute encoder.

This is the trap: high resolution per step does not translate into better real-world accuracy when the load can perturb position. Closed-loop verification matters more than the raw step number. A stepper that never loses steps performs to its spec; a stepper that occasionally loses one or two steps performs much worse than its spec, and you only find out by measuring the finished part. Encoder-equipped systems — servos and closed-loop steppers — converge on encoder-resolution accuracy because they verify position every cycle. This is also why most industrial CNC and robotics builds standardize on servo or closed-loop stepper for any axis where part quality depends on path-following accuracy.

System Cost Reality Check (What "20–30% Cheaper" Actually Means)

"Steppers are 20–30% cheaper than servos" is a true statement at the motor-only level and a misleading one at the machine-build level. Motor cost is one line item in a four-line BOM: motor, drive, feedback hardware, and tuning labor. Component-level pricing collapses to a different ratio once all four are summed.

The table below shows representative single-axis BOM ranges from mid-2025 distributor pricing for NEMA 23 frame size with comparable rated torque (~1.5 N·m). Your real numbers will shift with brand selection, country of purchase, and whether you buy motor + drive bundles versus mixing brands.

So at the system level the gap is 3–5×, not 20–30%. Another hidden cost: commissioning. An open-loop stepper drops in and runs — set the current limit, set step resolution, done. Servo systems demand current-loop tuning, velocity-loop tuning, and notch filters for any mechanical resonance. On a 6-axis robot that's a day's work even for an experienced engineer; on a single CNC axis it's an hour or two if the mechanics behave. Closed-loop steppers sit in the middle: more tuning than open-loop, much less than servo. For a four-axis machine, the labor cost differential alone can match the hardware cost differential.

Application Match: CNC, 3D Printers, and Robotics

Architecture selection makes more sense when you map it onto specific machine archetypes — the buyer's decision rarely starts at "do I want closed-loop?" It starts at "I'm building a CNC router / 3D printer / pick-and-place arm." The motor type that wins shifts predictably with the machine class.

• Desktop FDM 3D printers (Prusa, Bambu Lab, Voron): NEMA 17 open-loop steppers dominate. Loads are predictable, print speeds rarely exceed 300 mm/s, and silent stepper drivers (Trinamic TMC2209, TMC2226) handle resonance and audible noise.
• Hobby and desktop CNC routers ($800–$3,000): NEMA 23 open-loop steppers for soft materials and engraving; closed-loop stepper retrofits for users cutting aluminum or hardwood at depth.
• Mid-tier production CNC ($5,000–$15,000): closed-loop steppers increasingly default, because a missed-step disaster mid-job is more expensive than the upgrade.
• Industrial CNC mills, lathes, plasma tables ($25,000+): AC servos for spindle and axis drives. Sustained torque above 2,000 rpm, FOC-grade smoothness, encoder-verified accuracy.
• 6-axis articulating robots: Servo on every joint. No exceptions — multi-axis coordinated motion needs continuous closed-loop correction.
• Pick-and-place stations and packaging lines: Servo where cycle time is the spec; closed-loop stepper where cycle time is loose and budget is tight.
• Laboratory automation and pharma syringe pumps: Open-loop steppers because loads are minute, speeds are slow, and missed steps are extremely rare.

Q: Stepper or Servo for a 3D Printer?

For desktop FDM 3D printing, NEMA 17 open-loop steppers are the right answer at almost every price point under $5,000. Print loads are predictable (extruder mass plus a small carriage), speeds rarely exceed 300 mm/s, and modern silent stepper drivers eliminate the audible whine that plagued earlier generations. Servos appear only in production-class industrial 3D printers (HP Multi Jet Fusion, Stratasys F-series, large-format machines above $15,000) where print speeds approach 1 m/s and the cycle-time payback justifies the system cost. Resin printers (SLA, MSLA) likewise stay on steppers because the build platform moves slowly through the vat regardless of print resolution.

Q: Servo or Stepper for CNC?

CNC selection scales with cut depth, material, and machine cost tier. A hobby CNC router under $3,000 cutting MDF or softwood runs fine on NEMA 23 open-loop steppers — the standstill holding torque is a bonus when pausing mid-job. Step up to aluminum at depth, hardwood production runs, or any machine in the $5,000–$15,000 zone, and closed-loop steppers prevent the missed-step disasters that scrap a part halfway through a 90-minute job. Above $25,000 — production CNC mills, lathes, plasma cutters, full-size routers — AC servos own the segment because spindle drives need sustained torque well above 2,000 rpm and the cost differential disappears against total machine value.

Closed-Loop Stepper: The Hybrid That Splits the Difference

The closed-loop stepper closes a real gap in the market. Bolt an encoder onto a hybrid stepper, pair it with a driver that monitors actual position against commanded position, and you get a system that detects missed steps, adjusts current dynamically to hold position under disturbance, and can run substantially smoother than open-loop steppers thanks to digital current loops and improved microstepping algorithms.

Where it wins: predictable mechanics with mid-tier accuracy needs, mid-volume production where servo tuning labor is a real cost line, retrofits of existing stepper machines with missed-step problems. System math works out to closing roughly 70–80% of the precision gap to a comparable AC servo at about 60% of total system cost — the trade is acceleration headroom and high-speed smoothness, both of which still favor servos.

Where it loses: continuous high-speed motion above 2,000 rpm (stepper torque collapse is a physics problem feedback can't solve), ultra-smooth coordinated multi-axis motion (the high pole count of stepper motors creates inherent torque ripple that no encoder corrects), and any application where cycle time is the binding constraint. Closed-loop steppers also still draw rated current at standstill the way open-loop steppers do, so thermal management is closer to a stepper than to a servo.

How to Choose: Decision Framework

The decision compresses into six clear conditions and one five-question filter. Run your application through both.

Five-Question Motor Selection Filter:

1. Load. What is the peak torque needed at the working point? Above ~2 N·m on a NEMA 23 frame at moderate speed, lean servo.
2. Speed. What is the continuous duty cycle speed? Above 1,500 rpm sustained, lean servo. Below 500 rpm, stepper is fine.
3. Tolerance. What is the total accumulated position-error budget per cycle? Under 0.05° under load, you need encoder feedback — servo or closed-loop stepper.
4. Variability. Does the load change during a move? If yes, lean servo or closed-loop stepper. If no, open-loop stepper.
5. Budget. What is the per-axis BOM ceiling? Under $200, open-loop stepper. $200–$350, closed-loop stepper. $400 and above, servo becomes feasible.

This filter is deliberately blunt — it doesn't capture every edge case, but it gets 80% of selections right at first pass. If the answers are inconsistent (e.g., budget says stepper but speed says servo), the binding constraint usually wins, because most build projects have a hard ceiling on either money or capability, not both.

Industry Outlook: What's Changing in 2025–2026

Three signals are reshaping the servo vs stepper decision over the next 18 months. First, search interest in closed-loop stepper systems is stable with a slight upward trend, while 3D-printer stepper interest is up roughly 60% year-over-year — the broadening 3D-printing market is enlarging the entire stepper segment from below, particularly NEMA 17 and silent driver SKUs.

Second, modern servo drives are integrating IIoT capabilities — real-time current monitoring, thermal profiling, vibration analysis — that feed predictive maintenance dashboards. Motion industry consensus, summarized by a recent A3 / Automate.org analysis: "Closed-loop stepper systems — sometimes referred to as servo steppers — add encoder feedback to traditional steppers, providing improved reliability without the full cost of a servo solution." For asset-heavy manufacturing, the ability to detect a failing axis before it scraps a part adds maintenance value beyond the motion control core function.

Third, digital current loops — previously a servo-only technique — are migrating into stepper drivers, narrowing the smoothness gap further. Practical implication: by mid-2026, expect closed-loop stepper systems to overlap servo capability across the entire sub-2 N·m torque tier, leaving servos exclusively dominant on high-speed, high-torque industrial axes. If you are specifying a system today for an 18+ month deployment, the closed-loop stepper option deserves a longer look than it would have gotten in 2023, and a modern FOC-equipped AC servo deserves the same look at the upper end — both are on cost-down trajectories that don't favor staying on the technology you used last cycle.

Frequently Asked Questions

Q: Is a servo motor just a stepper motor with feedback?

No — the motor architectures are fundamentally different. A servo uses a low-pole-count motor (4–8 poles) optimized for continuous, smooth torque production via FOC. A stepper uses a high-pole-count motor (100+) optimized for discrete steps. Bolting an encoder onto a stepper creates a closed-loop stepper, which is a hybrid — it gains servo-like position verification but keeps stepper torque ripple at high speeds.

Q: What is better — stepper or servo?

Neither wins universally. Servos win on speed, accuracy under variable load, and dynamic responsiveness. Steppers win on cost, holding torque at standstill, and simplicity of commissioning. Which is right depends on your duty cycle, accuracy budget, and total system cost — not on motor type alone. Run your application through the five-question filter above.

Q: Can a stepper motor be used as a servo motor?

A closed-loop stepper system mimics servo-like behavior — encoder feedback lets the controller detect missed steps and adjust current. It does not, however, become a true servo. Stepper torque still collapses at high speeds, and the high pole count produces torque ripple that no closed-loop algorithm fully smooths. For continuous high-speed motion, a true servo with FOC outperforms a closed-loop stepper.

Q: What are the disadvantages of a servo motor?

Servos cost more upfront, demand more complex tuning (PID parameters plus FOC parameters plus mechanical resonance handling), require encoder or resolver feedback hardware, and take longer to commission. Servos also need an active brake for zero-speed holding torque, while steppers hold position with continuous current.

Q: Are servo motors more energy-efficient than stepper motors?

Yes — servos draw current proportional to load, so an unloaded or lightly loaded servo runs cool and consumes little power. Steppers draw rated current continuously even at standstill, which generates heat 24/7 in always-energized applications. For long dwell times or holding loads in thermally constrained enclosures, servos consume meaningfully less power and reduce the cooling burden.

Q: Can a stepper motor run at high speed?

Steppers can spin past 3,000 rpm mechanically, but their useful torque collapses well before that. On a NEMA 23 stepper, the torque curve drops below 0.1 N·m by 3,000 rpm. For sustained high-speed work above 1,500 rpm under any meaningful load, a servo or a substantially larger stepper is required.

Q: Do all servo motors need an encoder?

By definition, yes. An encoder (or resolver) is what makes a motor a servo — it provides the closed-loop feedback the drive uses to verify position and adjust current. Sensorless control techniques exist for BLDC motors, but those are typically classified as BLDC drives rather than true servos because they lack guaranteed position accuracy under all conditions.

Q: What's the cheapest way to add closed-loop control to an existing stepper machine?

Add a 1,000 PPR incremental encoder to the stepper's output shaft and replace the open-loop driver with a closed-loop stepper driver such as the Leadshine HBS series or JMC iHSS series. Per-axis cost stays under $250, compared to roughly $500+ for a full servo replacement that also requires changing the controller's pulse-output configuration and tuning the new drive.

Match the Motor to Your Build

If your application points toward a servo motor — CNC retrofit, robot joint, packaging-line axis, or any system where continuous closed-loop accuracy matters — browse the iTrustBot servo motor collection for AC servo, BLDC, and integrated drive options across NEMA 17 through NEMA 34 frames. For multi-axis builds where brand mix matters, our guide to the top servo motor and driver brands compares the major manufacturers on accuracy, drive features, and parts availability.

Why We Wrote This Comparison

This comparison reflects 2025 distributor pricing, manufacturer specification sheets, and motion-control industry association reports — not internal first-party test data. iTrustBot stocks AC servo, BLDC, and integrated servo motor systems for CNC retrofits, robotics builds, and industrial automation. We wrote this because the standard "servo vs stepper" framing oversimplifies a decision that turns on closed-loop verification, system-level cost, and where closed-loop steppers now occupy the middle ground — and getting that decision right matters more than the motor type itself.
