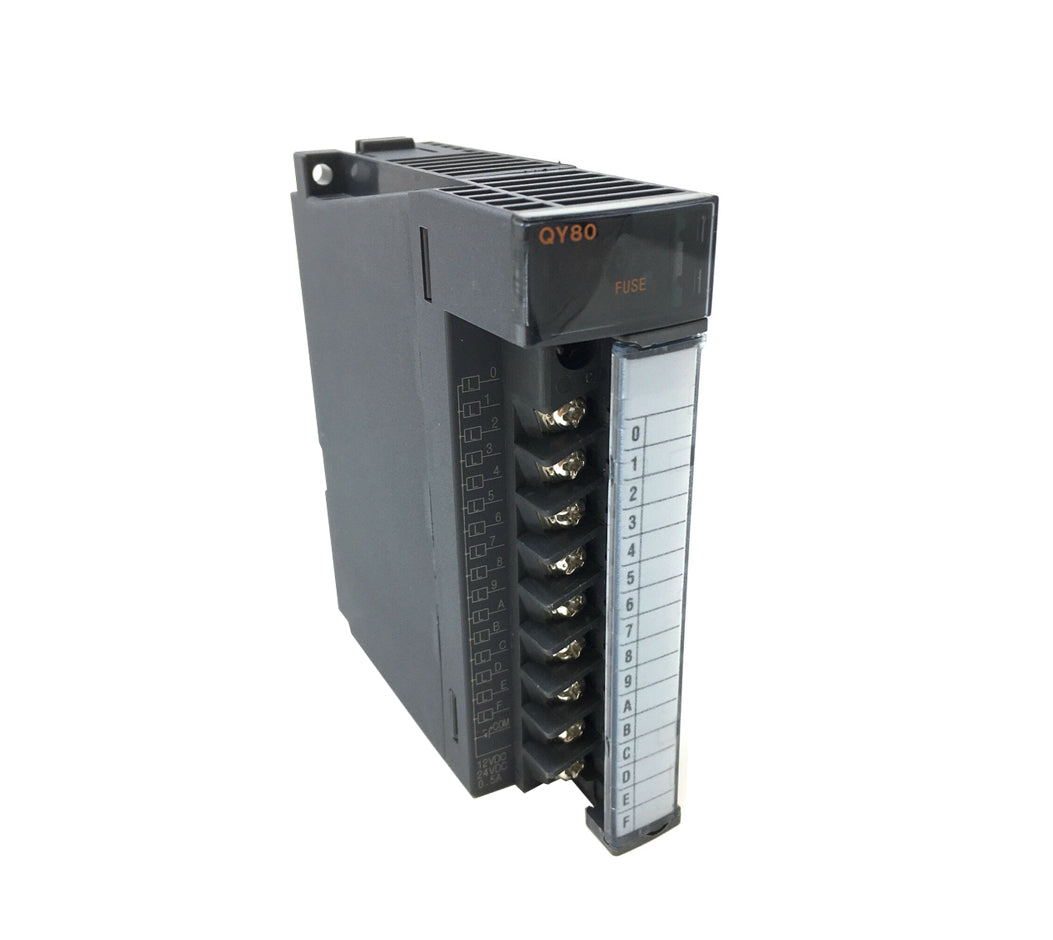

QY80 | Mitsubishi| Transistor Output Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QY80 stands as a highly reliable 16-point transistor output module, a cornerstone component within the MELSEC-Q Series PLC ecosystem. Meticulously engineered for precise, high-speed output control, this module is perfectly suited for driving a wide array of industrial actuators, solenoids, and indicators with exceptional efficiency. Its robust design ensures steadfast performance in demanding automation environments, making it an indispensable choice for control engineers and purchasing managers prioritizing both agility and durability in their systems. This module is indeed quite versatile, offering reliable output capabilities where it truly counts, seamlessly integrating into your existing MELSEC-Q architectures.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q SERIES |
| Type | Transistor Output (Source) |
| Number of Output Points | 16 points |
| Rated Load Voltage | 12-24 VDC |
| Max. Load Current | 0.5A/point, 4A/common |
| Leakage Current at OFF | 0.1mA or less |
| Response Time (ON/OFF) | 1ms or less |
| Internal Current Consumption (5VDC) | 0.08 A (80mA) |
| Wiring Method | Screw terminals |
| Isolation Method | Photocoupler |
| Surge Suppressor | Zener diode |
| Protection Class | IP2X |
| Dimensions (W x H x D) | 27.4 x 98 x 90 mm |
| Weight | 0.152 kg |
| Conformity | CE, UL/cUL, UKCA Compliant |
