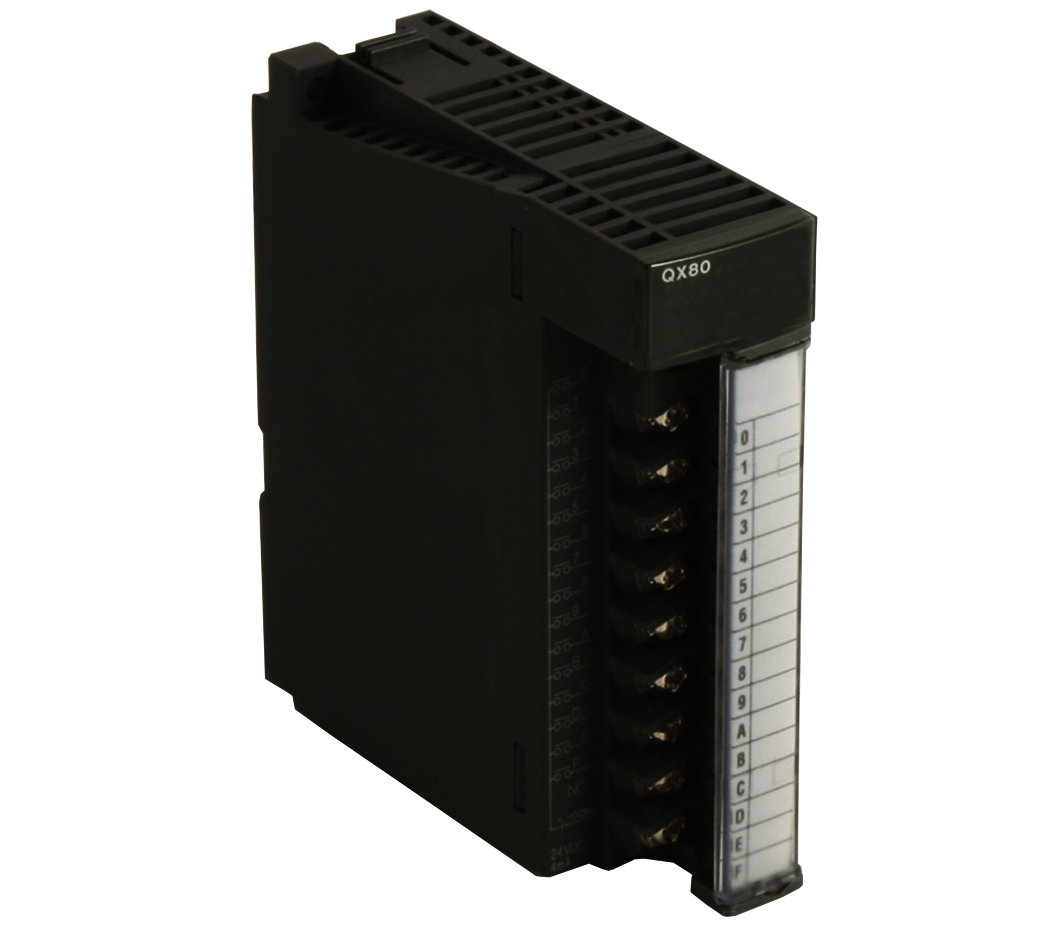

QX80 | Mitsubishi| Q-Series Digital Input Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QX80 stands as a critical component within the MELSEC-Q series, delivering reliable digital DC input capabilities essential for various industrial automation tasks. This 16-point input module, engineered with a negative common type, provides robust signal processing and features advanced photocoupler isolation for enhanced system integrity. Furthermore, its configurable response times allow for precise adaptation to diverse application requirements, proving invaluable for control engineers prioritizing both flexibility and performance.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Type | DC Input Module (Negative Common Type) |
| Number of Input Points | 16 points |
| Rated Input Voltage | 24 V DC (+20/-15%, ripple ratio within 5%) |
| Rated Input Current | Approx. 4 mA |
| ON Voltage / ON Current | 19 V or more / 3 mA or more |
| OFF Voltage / OFF Current | 11 V or less / 1.7 mA or less |
| Input Impedance | Approx. 5.6 k¦¸ |
| Isolation Method | Photocoupler |
| Input Response Time (OFF to ON / ON to OFF) | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less (Initial: 10ms) |
| External Connections | 18-point terminal block (M3 screw) |
| Internal Current Consumption (5V DC) | 50 mA (TYP. all points ON) |
| Protection Degree | IP2X |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Weight | 0.16 kg |
