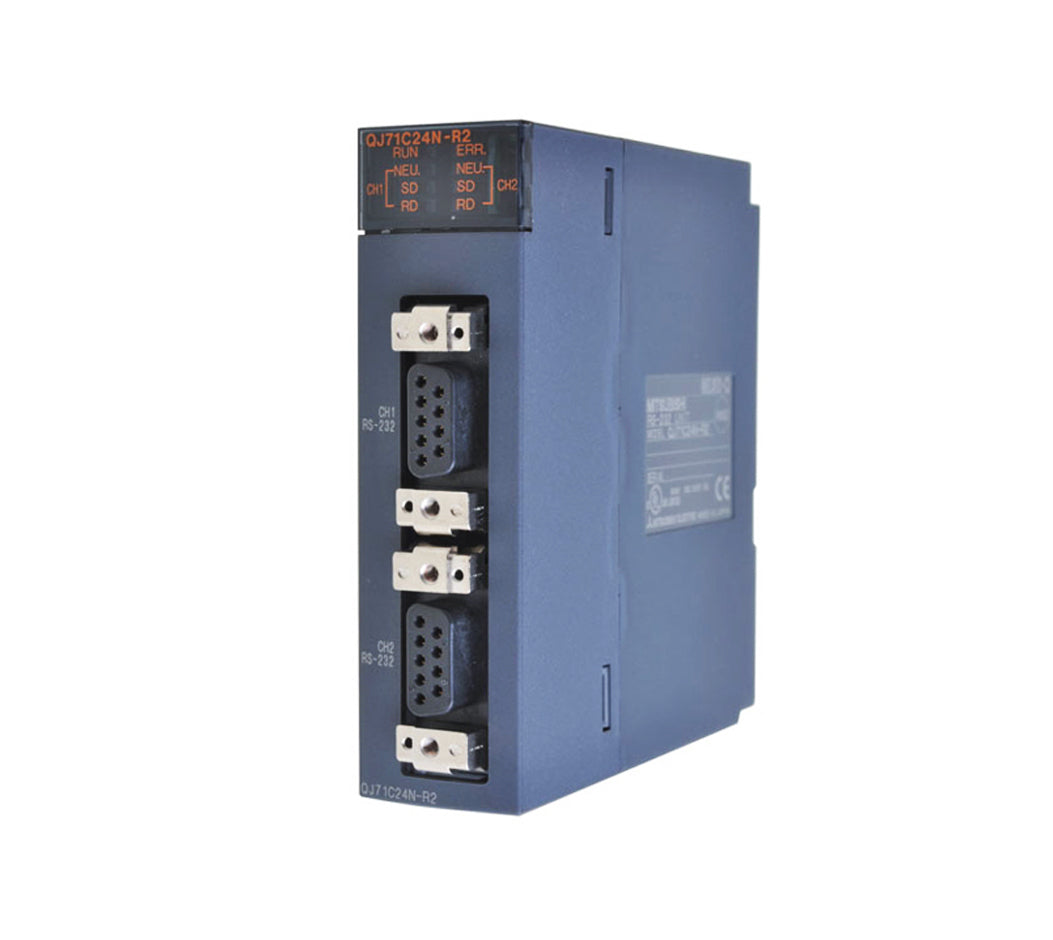

QJ71C24N-R2 | Mitsubishi Link Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for seamless integration within MELSEC-Q Series PLC systems, the Mitsubishi QJ71C24N-R2 stands out as a high-performance serial communication module. Designed to facilitate robust and swift data exchange, this unit is absolutely critical for connecting PLCs with a myriad of serial devices, including HMIs, barcode readers, and various other instruments across demanding industrial environments. Furthermore, its dual RS-232 interface ensures versatile connectivity, underpinning enhanced system responsiveness and, ultimately, boosting overall factory productivity, particularly in applications like process control and assembly automation.
| Parameter | Specification |
|---|---|
| Product Type | PLC Serial Communication Module |
| Series | MELSEC-Q Series |
| Interface | RS-232 |
| Channels | 2 channels |
| Max. Transmission Speed | 230.4 kbps (per channel, total up to 230400 bps) |
| Max. Transmission Distance | 15 m |
| Synchronization Method | Start-stop synchronization method |
| Communication Methods | MC protocol, Predefined protocol, Nonprocedural protocol, Bidirectional protocol |
| Data Format | 1 start bit, 7/8 data bits, 1 (vertical parity) or none parity bit, 1/2 stop bits |
| Error Detection | Parity check, Sum check code |
| Occupied I/O Points | 32 points/slot |
| Width | 27.4 mm |
| Height | 98 mm |
| Depth | 90 mm |
| Weight | 0.135 kg (135 g) |
| Conformance Standards | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
