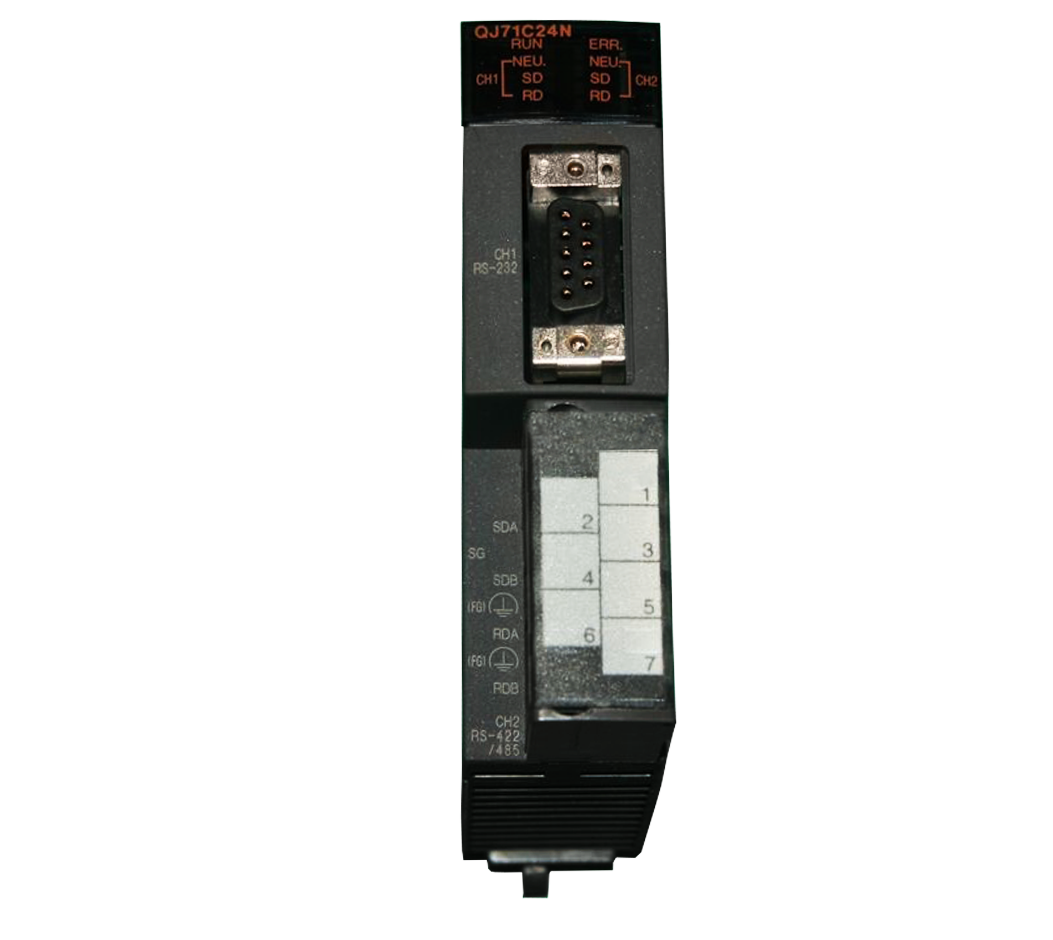

QJ71C24N | Mitsubishi| Mitsubishi Link Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QJ71C24N stands as a cornerstone in industrial automation, a high-performance serial communication module meticulously engineered for the MELSEC-Q Series PLCs. It provides exceptional dual-channel connectivity, encompassing both RS-232 and RS-422/RS-485 interfaces. This versatile design ensures reliable and robust data exchange across a wide spectrum of industrial applications, thereby enabling seamless integration of PLCs with an array of external devices, sensors, and monitoring systems. Its ability to handle varying transmission speeds and support multiple communication protocols makes it an invaluable asset for complex automation networks, significantly enhancing system connectivity and overall operational efficiency.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Module Type | Serial Communication Module |
| Communication Interfaces | CH1: RS-232, CH2: RS-422/RS-485 |
| Number of Channels | 2 |
| Transmission Speed (CH1) | 50 to 230,400 bit/s |
| Total Transmission Speed (Both Channels) | Up to 230,400 bps (CH1), up to 115,200 bps (both channels simultaneous) |
| Synchronization Method | Start-stop synchronization method |
| Data Format | 1 start bit, 7 or 8 data bits, 1 (vertical parity) or none parity bit, 1 or 2 stop bits |
| Error Detection | Parity check, Sum check code |
| Occupied I/O Points | 32 points per slot |
| Width | 27.4 mm |
| Height | 98 mm |
| Depth | 90 mm |
| Weight | 0.18 kg |
| RoHS Compliance | COMPLIANT |
| CE Compliance | COMPLIANT |
