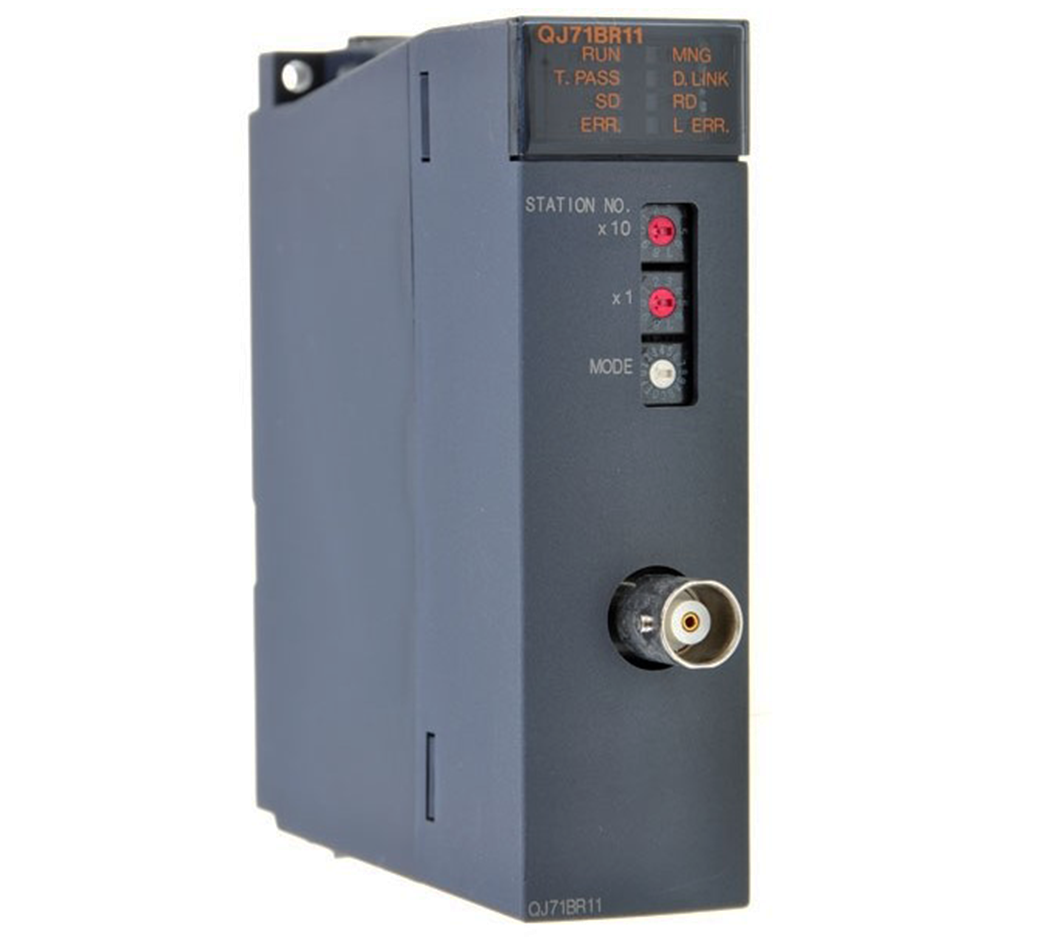

QJ71BR11 | Mitsubishi| Coaxial Bus System
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Mitsubishi QJ71BR11 coaxial bus module is an indispensable component for establishing resilient MELSECNET/H networks within the MELSEC-Q Series, designed to facilitate both PLC-to-PLC communication and seamless remote I/O integration. It boasts a single bus topology, supporting a wide range of applications from control station operations to remote master station functionality. Moreover, it ensures reliable and high-speed data exchange, becoming a cornerstone for robust industrial automation architectures.
| Parameter | Specification |
|---|---|
| Product Type | Coaxial Bus Unit / Network Module |
| Series | MELSEC-Q Series |
| Network Interface | MELSECNET/H |
| Network Topology | Coaxial Bus System (Single Bus) |
| Communication Speed | 25 Mbps / 10 Mbps |
| Max. Number of Stations | Up to 64 (1 control, 63 normal) |
| Overall Cable Distance | Up to 30 km (25/10 Mbps) |
| Communication Cable | 3C-2V / 5C-2V / 5C-FB Coaxial Cable |
| Max. Link Points (LX/LY per network) | 8192 points |
| Max. Link Points (LB/LW per network) | 16384 points (MELSECNET/10 mode: 8192 points) |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Weight | 0.11 kg |
| Conformance Standards | UL, cUL, CE (EMC, RoHS), KC (EMC), LR, NK, DNV, ABS, RINA, UKCA |
| RoHS Compliance | Compliant |
