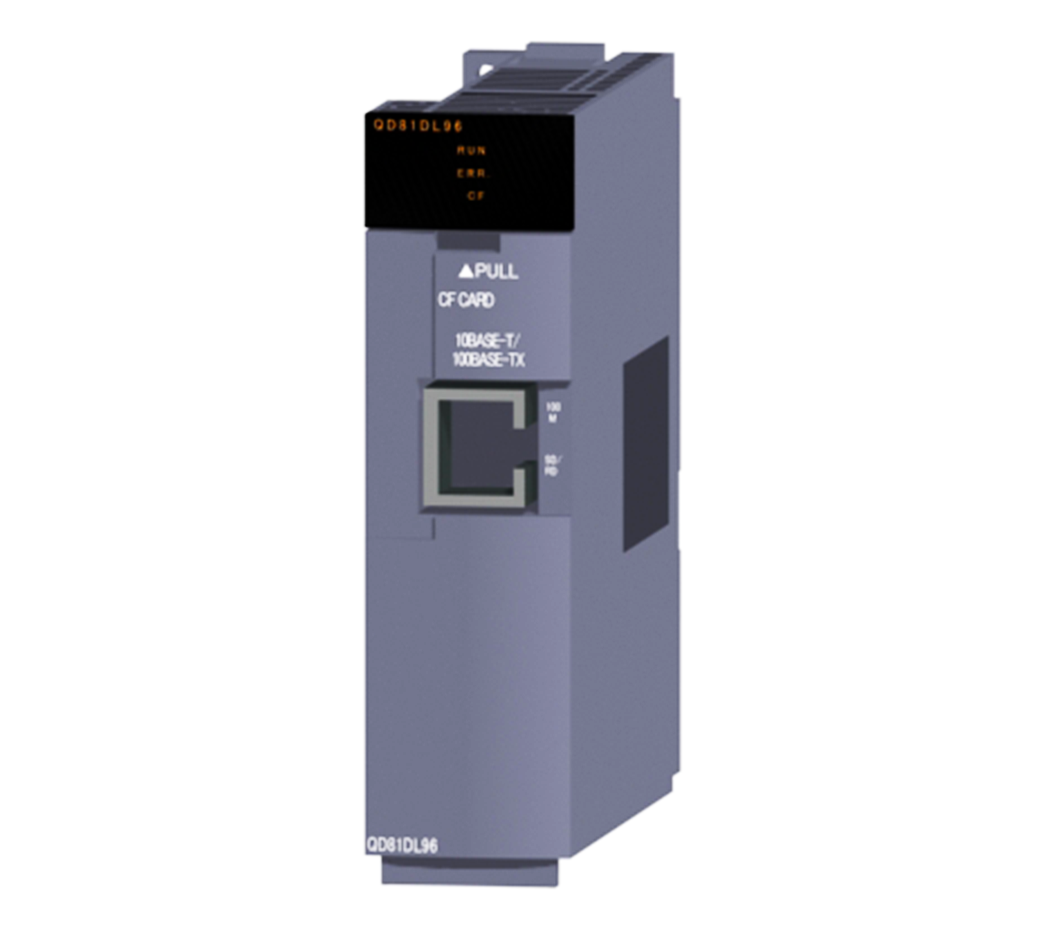

QD81DL96 | Mitsubishi| High-speed data logger unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for demanding industrial applications, the Mitsubishi QD81DL96 serves as a pivotal high-speed data logger module within the MELSEC-Q Series. Capable of capturing events with an astonishing 1ms sampling rate, this unit provides granular insights into even the most dynamic processes, ensuring unparalleled accuracy for detailed operational analysis and proactive troubleshooting. Furthermore, its robust data management capabilities, coupled with seamless integration into existing Mitsubishi PLC systems, simplify data acquisition and processing, offering significant advantages in optimizing control strategies and enhancing overall system performance.
Nevertheless, it¡¯s not just about raw speed; this module also offers flexible configuration options and advanced diagnostics, facilitating comprehensive data collection from up to 64 CPUs across various network connections. This versatile approach dramatically reduces the need for multiple data logging solutions, delivering both cost efficiencies and simplified management. Finally, with support for standard Compact Flash cards up to 8GB, extended data histories can be securely stored and easily analyzed, whether for compliance or continuous improvement initiatives.
Key Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | High-speed Data Logger Module |
| Series | MELSEC-Q Series |
| High-Speed Data Sampling Rate | 1ms (synchronizes with sequence program scan) |
| Data Storage | Up to 8 GB (Standard Compact Flash card) |
| Network Interface | Ethernet (10BASE-T / 100BASE-TX) |
| Max. CPUs Monitored | Up to 64 CPUs |
| Internal Current Consumption (DC5V) | 0.50 A |
| Dimensions (H x W x D) | 98 mm x 27.4 mm x 90 mm |
| Mass | 0.15 Kg |
| Logging Type | Continuous Logging, Trigger Logging |
| File Formats Supported | CSV, Binary, Excel (for reports) |
| Communication Method (Ethernet) | Full duplex / half duplex |
| Data Transmission Speed (Ethernet) | 10 Mbps / 100 Mbps |
| RoHS Compliance | Compliant |
