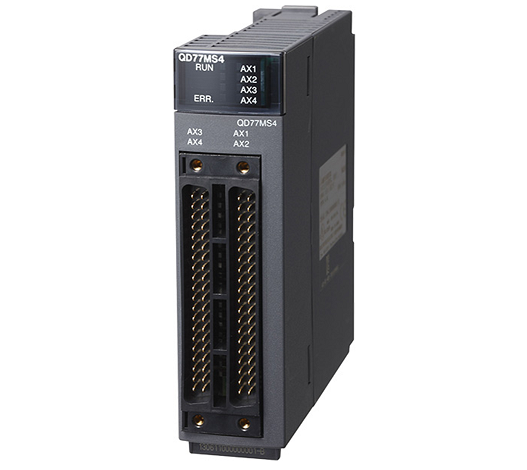

QD77MS4 | Mitsubishi| Simple Motion Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Mitsubishi Electric QD77MS4 Simple Motion Module, an integral component of the MELSEC-Q Series, delivers robust and highly precise 4-axis control. It excels in complex industrial automation, supporting diverse control methods like positioning, speed, torque, cam, and advanced synchronous control. Utilizing the SSCNET III/H interface, this module is engineered for seamless integration and superior performance in demanding motion applications, significantly enhancing system response and overall operational efficiency.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q SERIES |
| Type | SIMPLE MOTION MODULE |
| Number of Control Axes | Up to 4 axes (including virtual servo amplifier axis) |
| Command Interface | SSCNET III/H, SSCNET III |
| Program Capacity | 600 data/axis |
| Program Capacity Unit | POSITIONING DATA / AXIS |
| Operation Cycle | 0.88 ms, 1.77 ms |
| Interpolation Function | Linear interpolation (max 4 axes), 2-axis circular interpolation |
| Control Method | PTP, Trajectory, Speed, Speed/Position Switching, Position/Speed Switching, Speed/Torque, Fixed-pitch feed, Advanced Synchronous, Cam, Continuous Path |
| Acceleration/Deceleration Processing | Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration |
| Control Unit | mm, inch, degree, pulse |
| Inputs | 4 |
| Backup | Parameter, positioning data, block start data saved in flash ROM (battery-less) |
| Mass (Weight) | 0.16 kg |
| Exterior Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
