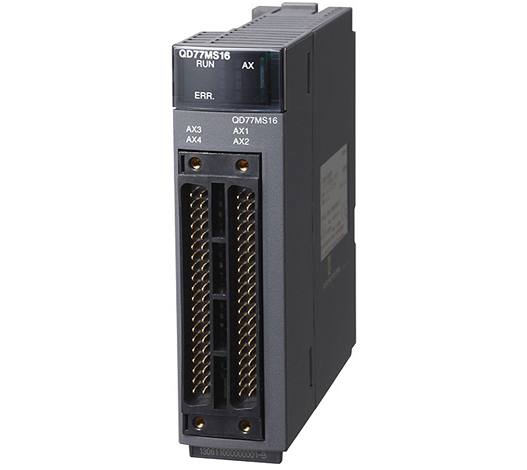

QD77MS16 | Mitsubishi| Simple Motion Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD77MS16 Simple Motion Module stands as a cornerstone for advanced industrial automation, delivering high-performance, multi-axis control. It empowers systems with precise positioning, speed, and torque capabilities, seamlessly integrating into demanding applications through its robust SSCNET III/H connectivity. This module is engineered to handle complex motion tasks efficiently, providing unparalleled flexibility and reliability for control engineers and purchasing managers alike.
| Parameter | Specification |
|---|---|
| Maximum Control Axes | Up to 16 axes (virtual servo amplifier axis included) |
| Servo Amplifier Connection | SSCNET III/H connection type |
| Operation Cycle | 0.88 ms, 1.77 ms |
| Interpolation Functions | Linear interpolation (up to 4 axes), 2-axis circular interpolation |
| Supported Control Methods | Positioning, Speed, Speed-Torque, Speed-Position Switching, Fixed-Pitch Feed, Advanced Synchronous, Cam, Continuous Path |
| Positioning Data Capacity | 600 data (positioning data No. 1 to 600) / axis |
| Max. Distance Between Stations | 100m (between stations), 1600m (per system) |
| Number of Occupied I/O Points | 32 points |
| Mass | 0.16 kg |
| Exterior Dimensions (W x H x D) | 274 x 98 x 90 mm |
| Acceleration/Deceleration Processing | Trapezoidal, S-curve |
| Compensation Functions | Backlash compensation, Electronic gear, Near pass function |
