QD75P4N | Mitsubishi| Positioning Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget

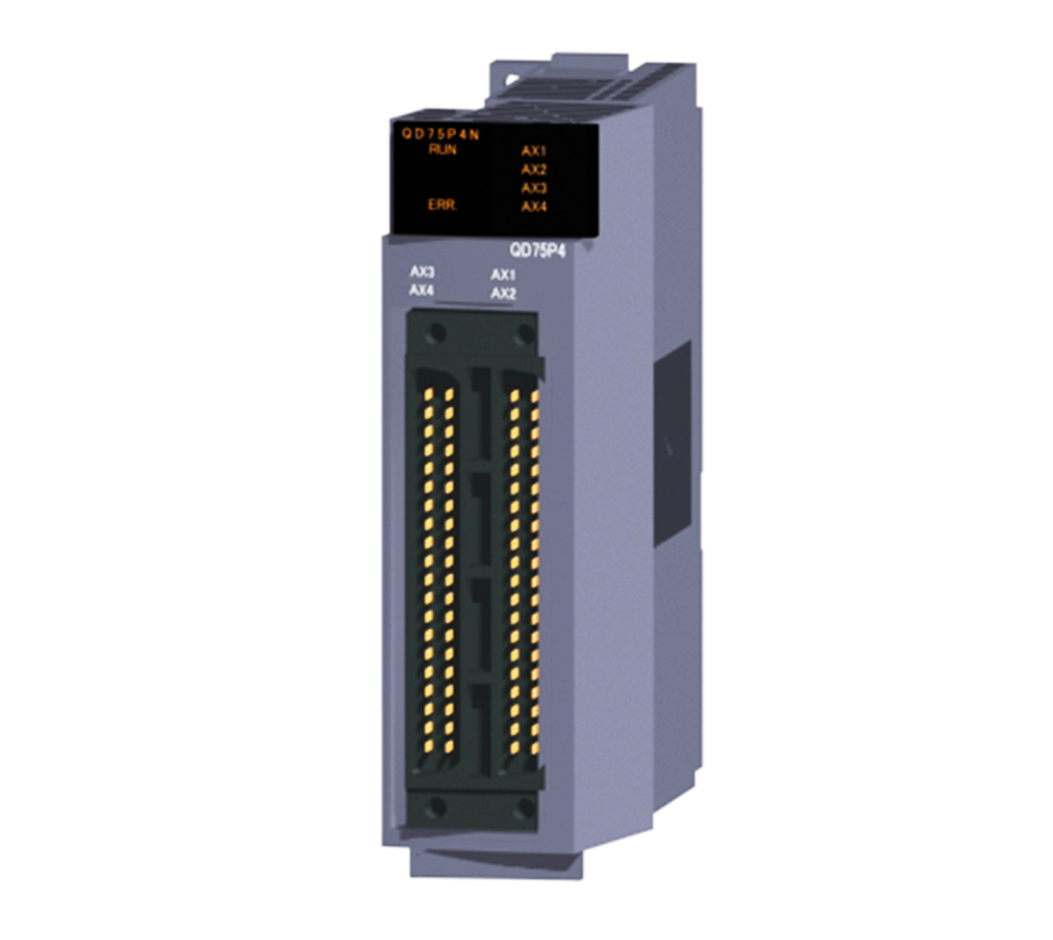

The Mitsubishi QD75P4N is a robust 4-axis positioning module, a core component of the acclaimed MELSEC-Q Series PLC family, specifically engineered for unparalleled precision in motion control applications. It boasts open collector outputs and supports a comprehensive array of interpolation functions, including linear, circular, and helical, making it ideally suited for demanding, high-speed multi-axis automation scenarios across various industries. This module integrates seamlessly, ensuring efficient and reliable operation.
| Parameter | Specification |
|---|---|
| Number of Control Axes | 4 axes |
| Output System | Open Collector Output |
| Maximum Output Pulse | 200 kpulse/s |
| Interpolation Functions | 2-axis circular, 2-/3-/4-axis linear, 3-axis helical interpolation |
| Control Unit | pulse/mm/inch/degree |
| Number of Positioning Data | 600/axis |
| I/O Occupied Points | 32 points (intelligent function module) |
| DC5V Current Consumption | 0.58A |
| Weight | 0.16 kg (0.35 lb) |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), LR, NK, DNV, ABS, RINA, BV |
| Backup | Flash ROM (battery-less backup) |
| Positioning System | Incremental/Absolute system |
