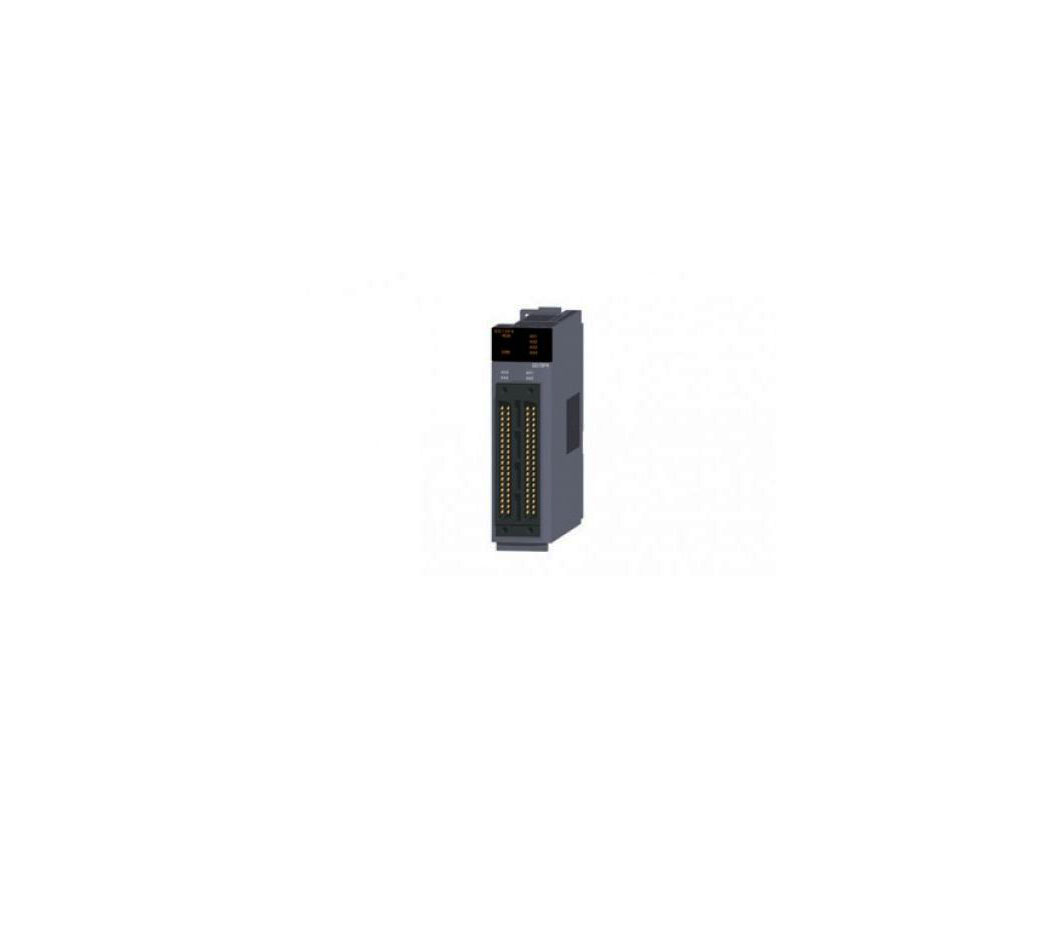

QD75P4 | Mitsubishi Positioning Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for precision and robust performance, the Mitsubishi QD75P4 positioning module, a core component of the esteemed Melsec-Q series, provides advanced control capabilities for up to four axes. This intelligent module, featuring open-collector pulse output, is exceptionally well-suited for demanding automation environments that require intricate point-to-point and path control, ensuring seamless integration and superior operational accuracy. Furthermore, its versatile interpolation functions allow for highly dynamic and precise motion sequences, crucial for modern industrial machinery.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product Line | Melsec-Q |
| Number of Control Axes | 4 axes |
| Output Type | Open Collector |
| Max. Output Pulse | 200 kpulses/s |
| Interpolation Function | 2-, 3-, or 4-axis linear, 2-axis circular |
| Control System | PTP, Path (linear/arc), Speed, Speed-Position Switching, Position-Speed Switching |
| Control Unit | mm, inch, degree, pulse |
| Occupied I/O Points | 32 points (for intelligent function module) |
| External Dimensions (H x W x D) | 98 x 27.4 x 90 mm |
| Weight | 0.16 kg |
| Internal Current Consumption (5VDC) | 0.58 A |
| Max. Connection Distance to Drive Unit | 2 m |
| Positioning Data | 600 data/axis |
| External Wiring Connector | 40-pin connector |
| Backup | Flash ROM (battery-less) for parameters, positioning, and block start data |
