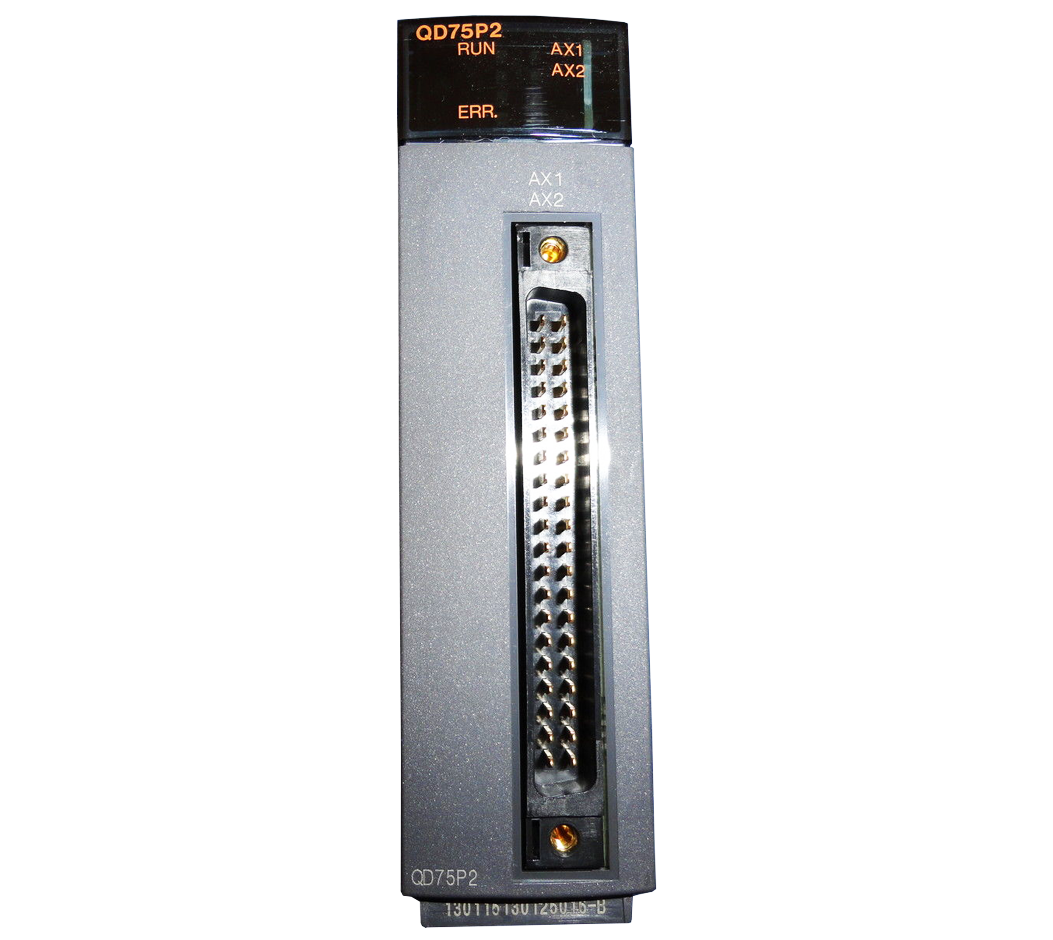

QD75P2 | Mitsubishi Two Axis Position Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD75P2 is a robust 2-axis positioning module, meticulously engineered for exceptional precision and reliability within diverse industrial automation environments. This intelligent function module, featuring an open-collector pulse output system, empowers control engineers and purchasing managers with advanced capabilities for high-speed linear and circular interpolation, consequently optimizing the performance of servo and stepper motor systems. It seamlessly integrates with Mitsubishi's MELSEC-Q Series PLCs, offering a comprehensive solution for demanding positioning tasks while ensuring efficient and reliable operation through built-in diagnostic functions and sturdy construction.
| Parameter | Specification |
|---|---|
| Number of Controlled Axes | 2 axes |
| Output Type | Open-collector pulse output |
| Max. Output Pulse Rate | 200 kpps |
| Interpolation Functions | 2-axis linear, 2-axis circular |
| Control Unit | mm/inch/degree/pulse |
| Positioning Data | 600 data/axis |
| I/O Occupied Points | 32 points |
| DC5V Current Consumption | 0.46 A |
| Operating Temperature | 0¡ãC to 55¡ãC |
| Protection Class | IP20 |
| Compatible PLC Series | MELSEC-Q Series |
| Weight | Approx. 0.15 kg (0.33 lb) |
