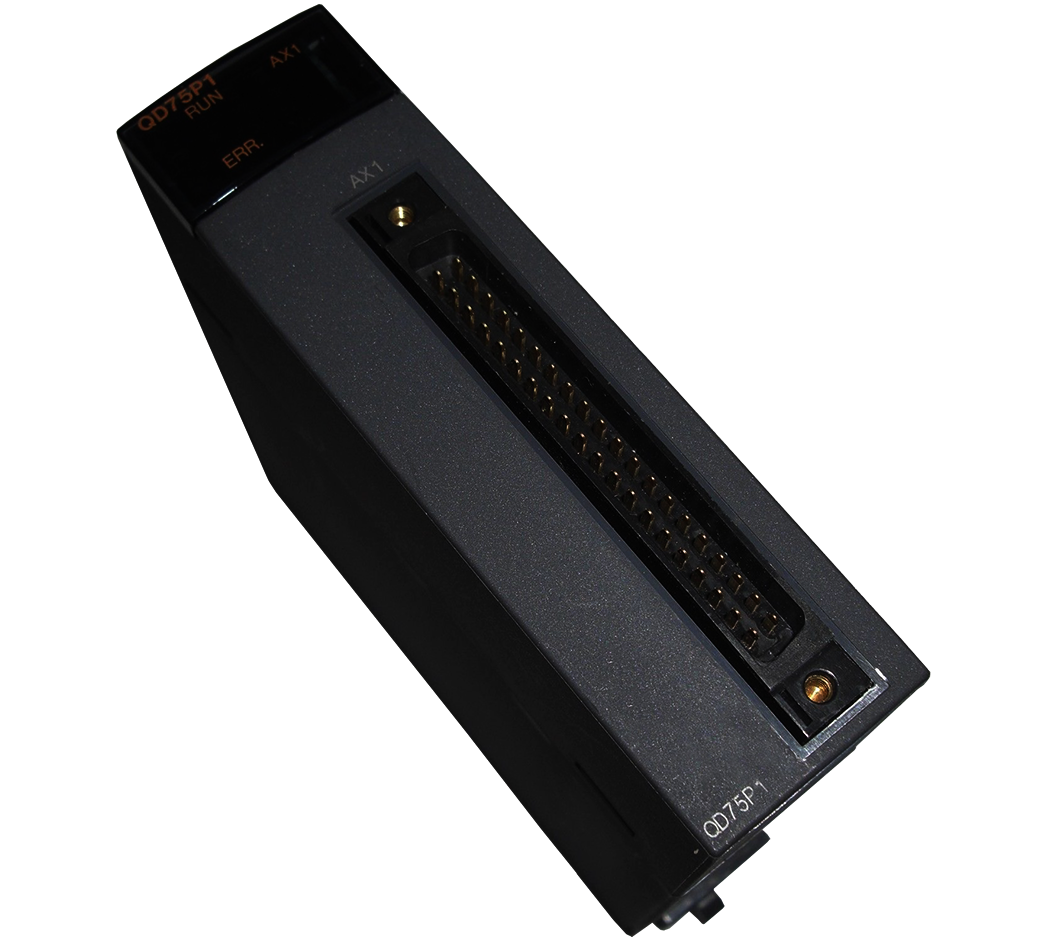

QD75P1 | Mitsubishi Single Axis Pulse Output Position Control Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting control in industrial automation, the Mitsubishi QD75P1 is a robust 1-axis positioning module. It leverages an open collector output system, offering high-precision motion control critical for applications such as CNC machinery, automated assembly lines, and robotics. This module seamlessly integrates into existing Mitsubishi Q Series PLC infrastructures, thus enhancing operational efficiency and reliability across demanding environments.
| Parameter | Specification |
|---|---|
| Model Name | QD75P1 |
| Number of Control Axes | 1 axis |
| Output Type | Open Collector Output |
| Control Unit | mm, inch, degree, pulse |
| Number of Positioning Data | 600 data/axis |
| Maximum Output Pulse | 200 kpps |
| DC5V Current Consumption | 0.40A |
| I/O Occupied Points | 32 points |
| Max. Connection Distance (Servos) | 2m (6.56ft) |
| Connector Type | 40-pin connector (A6CON1/A6CON2/A6CON4 sold separately) |
| Weight | 0.15kg (0.33lb.) |
| Conformance Standards | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
| Sales Status | Discontinued (End of order date: 2021/08) |
