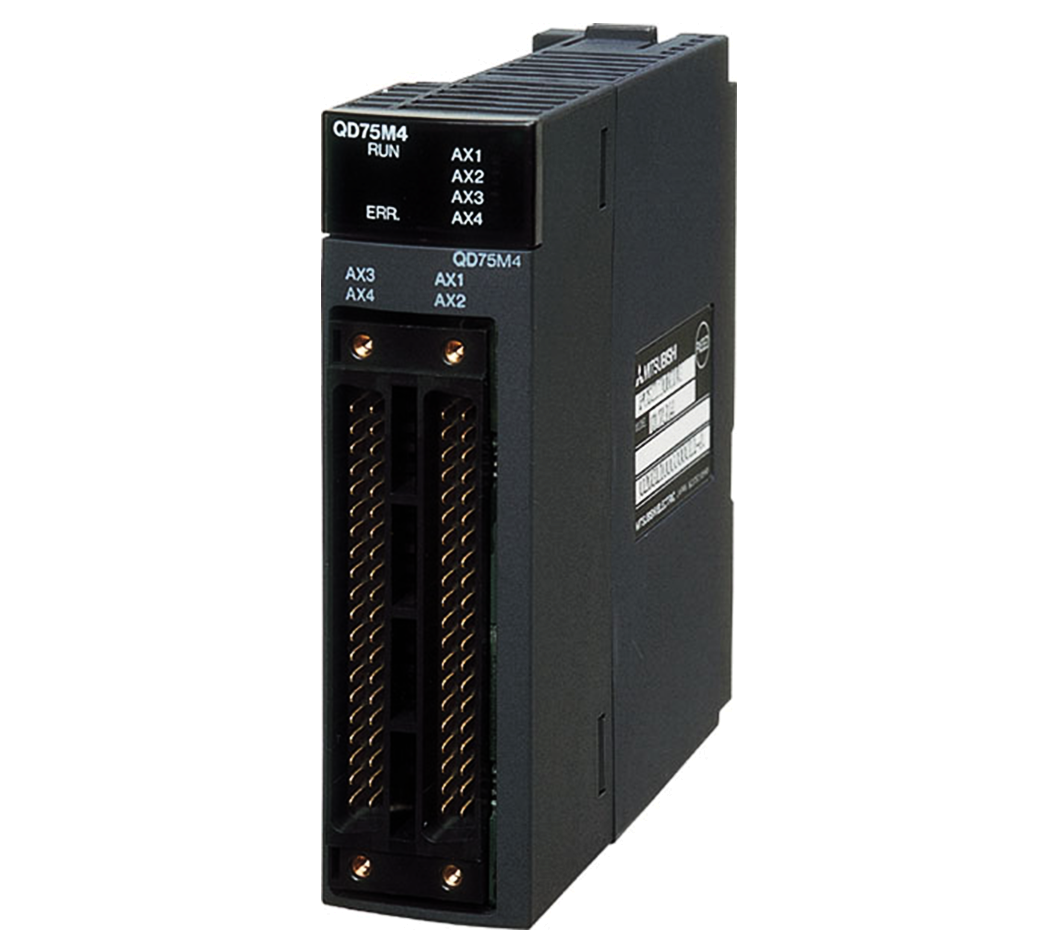

QD75M4 4 axis positioning data number: 600 data / axis SSCNET connection
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD75M4 positioning module, a core MELSEC-Q series component, delivers high-precision motion control for up to four axes. With 600 positioning data items per axis and SSCNET connectivity, it ensures synchronous, real-time command execution crucial for advanced automation and interpolated movements.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model | QD75M4 |
| Series | MELSEC-Q |
| Number of Control Axes | 4 axes |
| Positioning Data Capacity | 600 data/axis |
| Motion Network Interface | SSCNET |
| Max. Output Pulse Rate | 1 Mpulse/s |
| DC5V Current Consumption | 0.82A (max.) |
| I/O Occupied Points | 32 points |
| Flash ROM Write Cycles | Max. 100,000 times |
| Max. Servo Connection Distance | 10 meters |
| Conformance Standards | UL, cUL, CE (EMC, RoHS), KC (EMC) |
| Weight | 0.16 kg (max.) |
