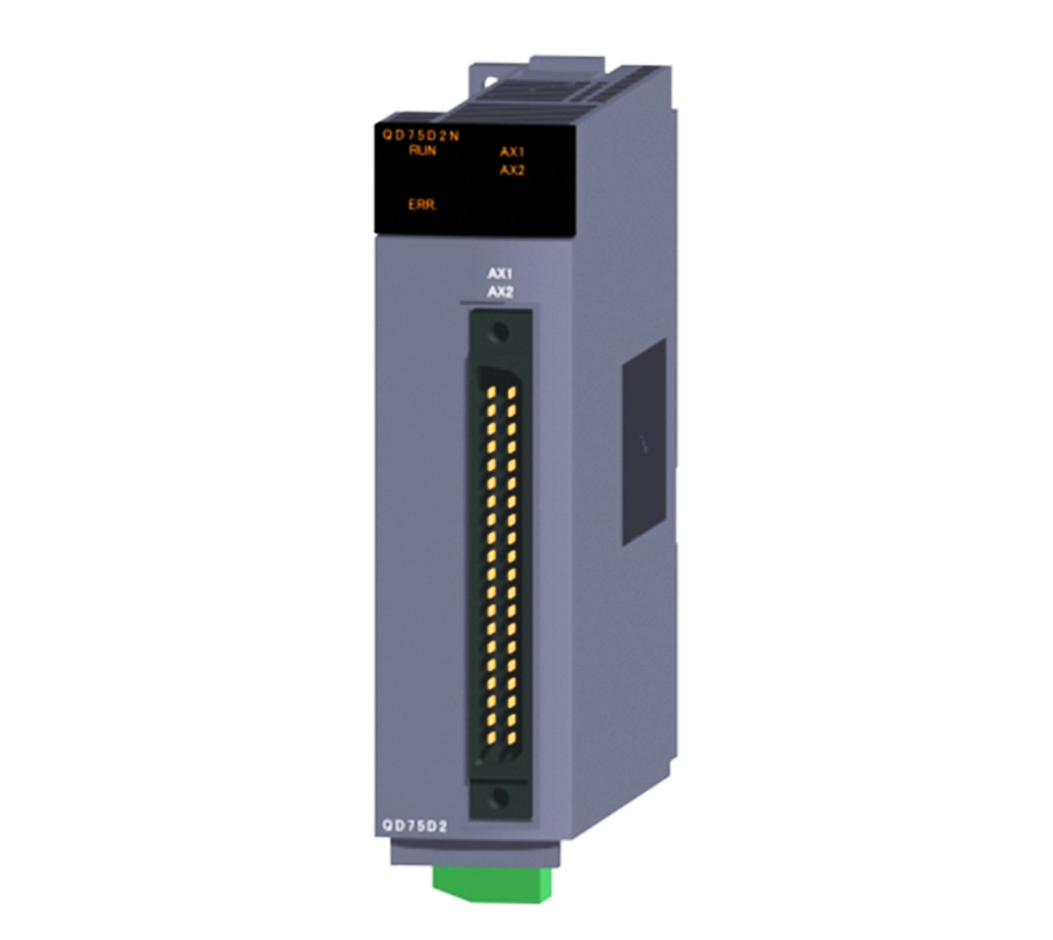

QD75D2N | Mitsubishi| Positioning unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD75D2N module is an exemplary component within the MELSEC-Q Series, designed to deliver unparalleled precision and speed in demanding multi-axis positioning applications. Furthermore, its differential driver output capability ensures reliable signal transmission over extended distances, a crucial advantage in expansive industrial environments. This unit, meticulously engineered for two-axis motion control, stands as a testament to Mitsubishi Electric's commitment to robust industrial automation, while offering flexible control via various units including pulses, millimeters, inches, and degrees. Ultimately, its advanced interpolation functions enable complex trajectory generation, making it an ideal choice for a wide array of high-value machinery and control systems.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Number of Control Axes | 2 axes |
| Output Type | Differential Driver Output |
| Control Unit | Pulse, mm, inch, degree |
| Positioning Data | 600 data/axis |
| Maximum Output Pulse | 1 Mpps (1,000,000 pulses/s) |
| Interpolation Functions | 2-Axis Linear, 2-Axis Circular |
| DC5V Current Consumption | 0.56 A |
| I/O Occupied Points | 32 points |
| Max. Connection Distance (Servo) | 10 m |
| Weight | 0.15 kg |
| Dimensions (W x H x D) | 27.4 x 98 x 90 mm |
