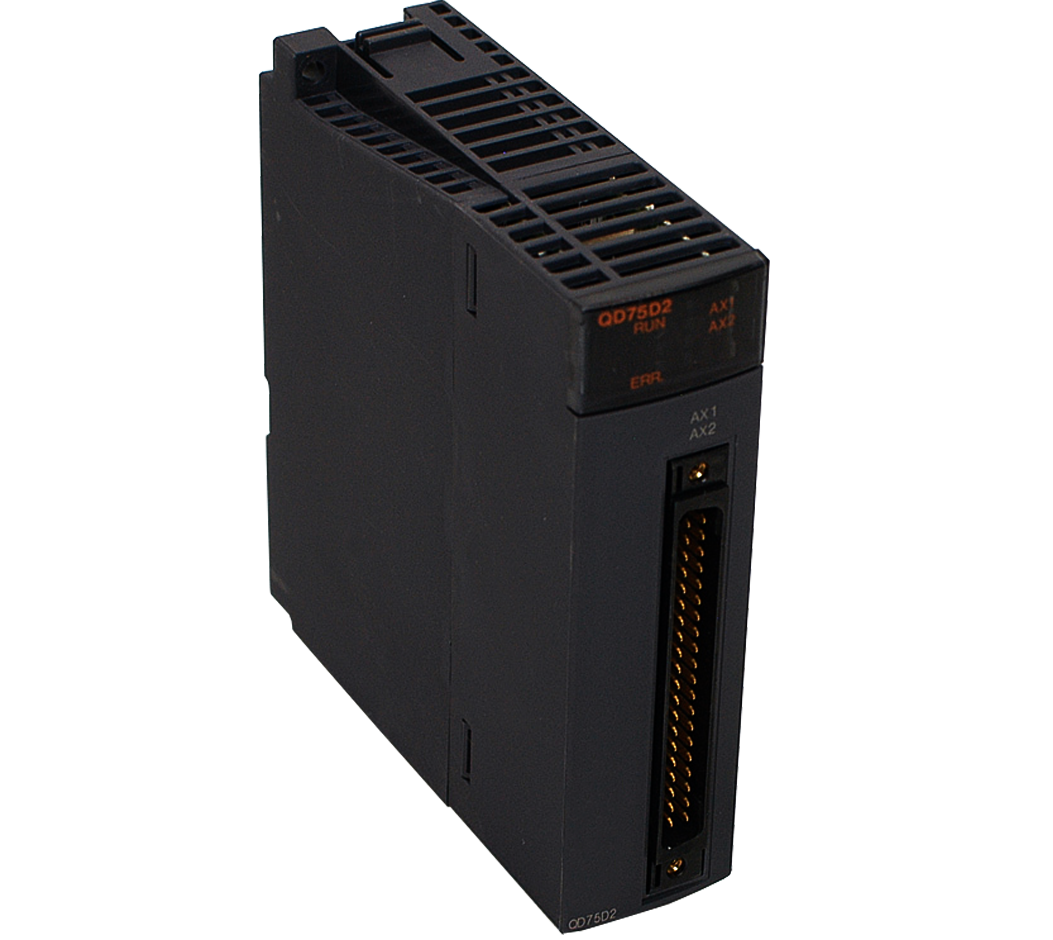

QD75D2 | Mitsubishi Two Axis Pulse Output Position Control Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting motion control, the Mitsubishi QD75D2 stands as a robust 2-axis positioning module, delivering exceptional precision and speed in industrial automation. This module, a critical component in the MELSEC-Q series, leverages a differential driver output system to ensure reliable, high-speed pulse transmission for demanding applications. It masterfully handles complex movements, furthermore facilitating both linear and circular interpolation, thereby providing unparalleled flexibility for intricate machine operations.
| Specification | Detail |
|---|---|
| Number of Control Axes | 2 axes |
| Max. Output Pulse | 1 Mpulse/s |
| Output System | Differential Driver Output |
| Interpolation Functions | 2-axis Linear, 2-axis Circular |
| Control Unit | mm/inch/degree/pulse |
| Number of Positioning Data | 600/axis |
| I/O Points Occupied | 32 points (Intelligent Function Module) |
| DC5V Current Consumption | 0.56A |
| Max. Servo Connection Distance | 10m (32.81ft) |
| Weight | 0.15kg (0.33lb.) |
| Conformance Standards | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
| Applicable Connectors | A6CON1, A6CON2, A6CON4 (Sold Separately) |
