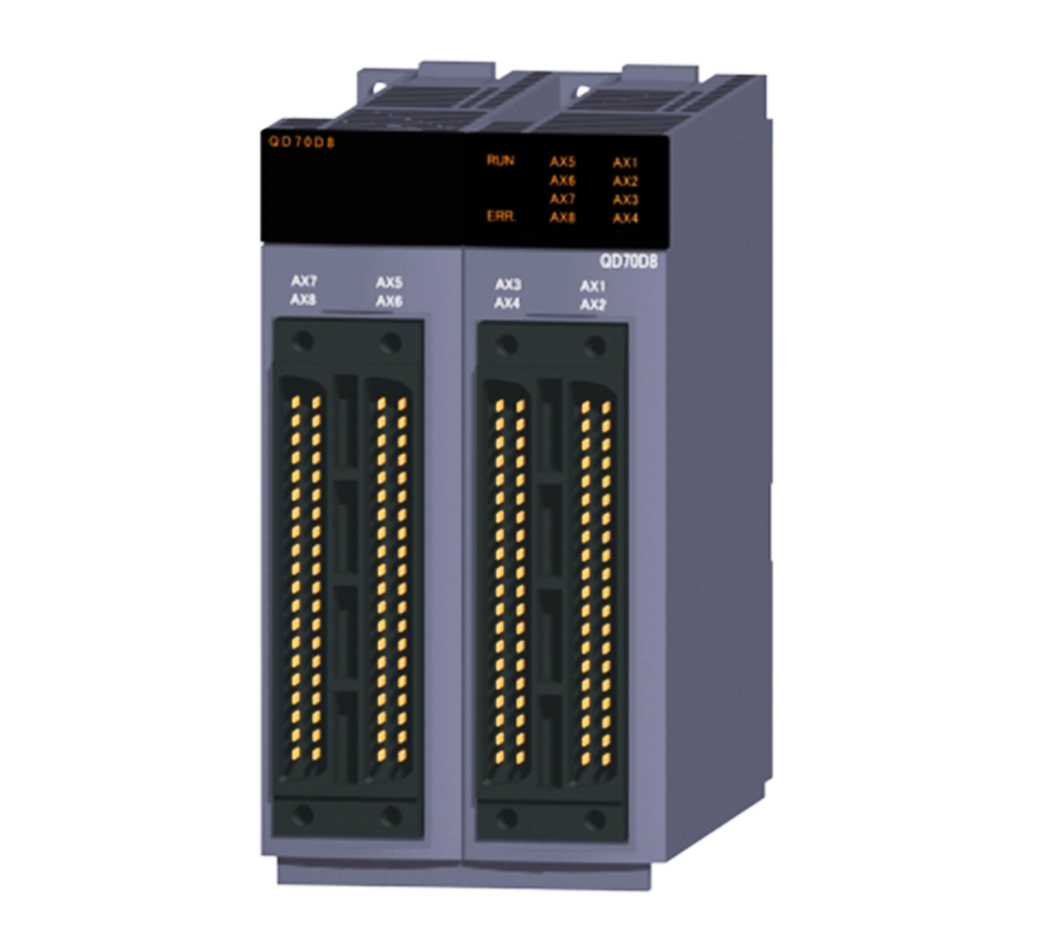

QD70D8 | Mitsubishi Multi Axis Positioning Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Unlock unparalleled precision and dynamic control with the Mitsubishi QD70D8, an 8-axis differential output positioning module. This unit is expertly optimized for simple yet remarkably effective multi-axis positioning, ensuring high-speed linear control where it matters most. Capable of reliably transmitting high-speed instruction pulses up to 4 Mpps, even across distances up to 10 meters, it truly excels in demanding industrial applications, offering smooth acceleration and deceleration curves for refined motion.
Furthermore, its robust design and comprehensive feature set make it an ideal solution for intricate automation tasks, particularly those involving stepper motor control where subtle speed changes and quick starts are critical. It supports both PTP and linear trajectory control, providing versatility, while its differential output type guarantees signal integrity in electrically noisy environments. This module significantly enhances the efficiency and responsiveness of your industrial systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model | QD70D8 |
| Number of Control Axes | 8 axes |
| Control Unit | Pulse |
| Positioning Data | 10 data / axis |
| Maximum Pulse Output | 4 Mpps |
| Pulse Output Method | Differential Output |
| Control Method | PTP, Trajectory (linear), Speed/Position Switching |
| Acceleration/Deceleration | Trapezoidal, S-shaped |
| Max. Connection Distance | 10 m (to drive units) |
| External Connection | 40-pin Connector x 4 |
| Internal Current Consumption | 2.16 A (DC 5V) |
| Occupied I/O Points | 48 points (2 slots) |
| Dimensions (H x W x D) | 98 mm x 55.2 mm x 90 mm |
| Mass | 0.23 Kg |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), LR, NK, DNV, ABS, RINA, BV |
