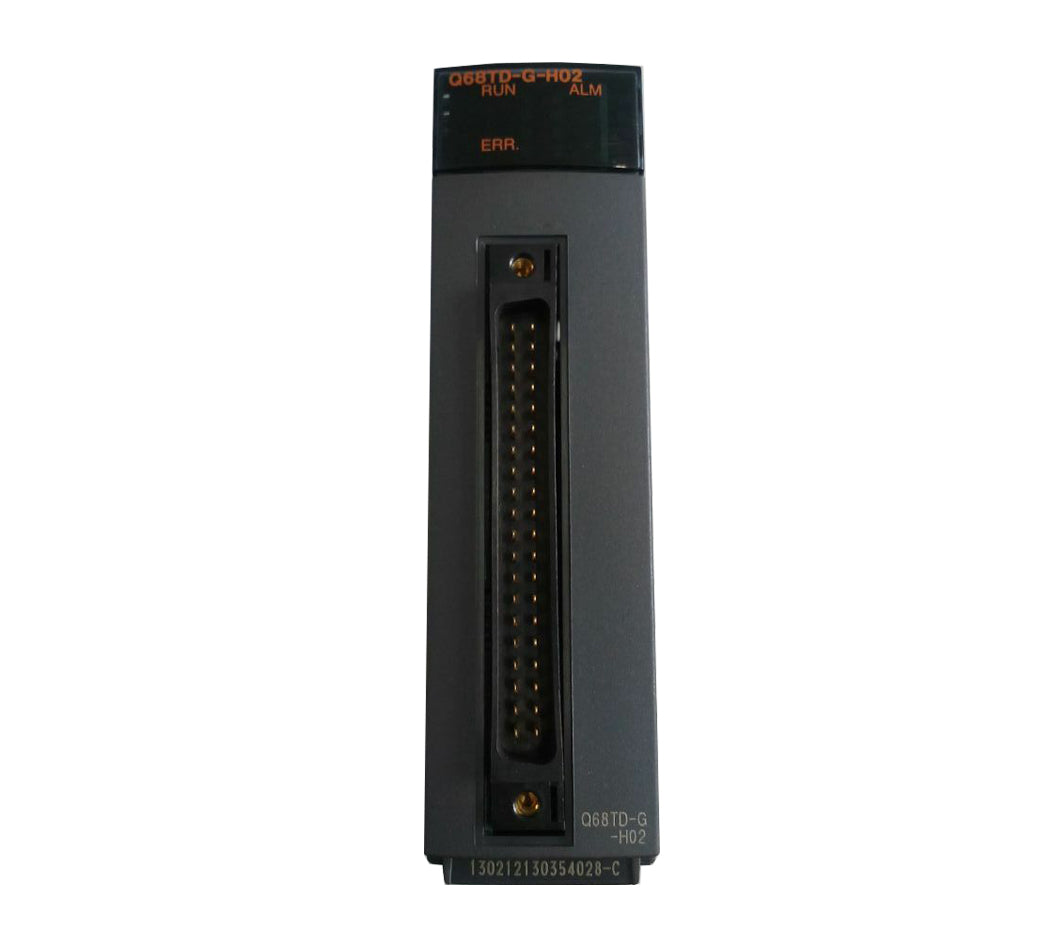

Q68TD-G-H02 | Mitsubishi| Channel-to-channel insulation thermocouple input unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting industrial environments, the Mitsubishi Q68TD-G-H02 stands as a paramount 8-channel temperature input module, purpose-built for seamless integration within the MELSEC-Q Series PLC ecosystem. This module is a crucial component for applications demanding rigorous temperature monitoring and control, delivering exceptionally accurate 16-bit resolution measurements. Its broad compatibility with various thermocouple types, including K, J, T, E, B, R, S, and N, ensures remarkable adaptability across a spectrum of processes, while advanced noise immunity guarantees unwavering data integrity even in challenging electrical conditions. Ultimately, it empowers control engineers and purchasing managers alike with a reliable, high-performance solution for critical thermal management, particularly in sectors like manufacturing, chemical processing, and HVAC systems.
| Parameter | Specification |
|---|---|
| Module Type | Temperature Input Module |
| Number of Channels | 8 channels |
| Input Type | Thermocouple |
| Applicable Thermocouple Types | B, R, S, K, E, J, T, N |
| Conversion Speed | 640 ms/8 channels |
| Resolution | 16-bit (analog-to-digital conversion) |
| Isolation | Channel isolated |
| Connector Type | 40-pin connector |
| Occupied I/O Points on PLC | 16 points |
| Internal Current Consumption | 0.65 A |
| Dimensions (W x H x D) | 27.4 x 102 x 130 mm |
| Weight | 0.22 kg |
| Key Feature | Disconnection detection function |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), LR, NK, DNV, ABS, RINA, BV |
