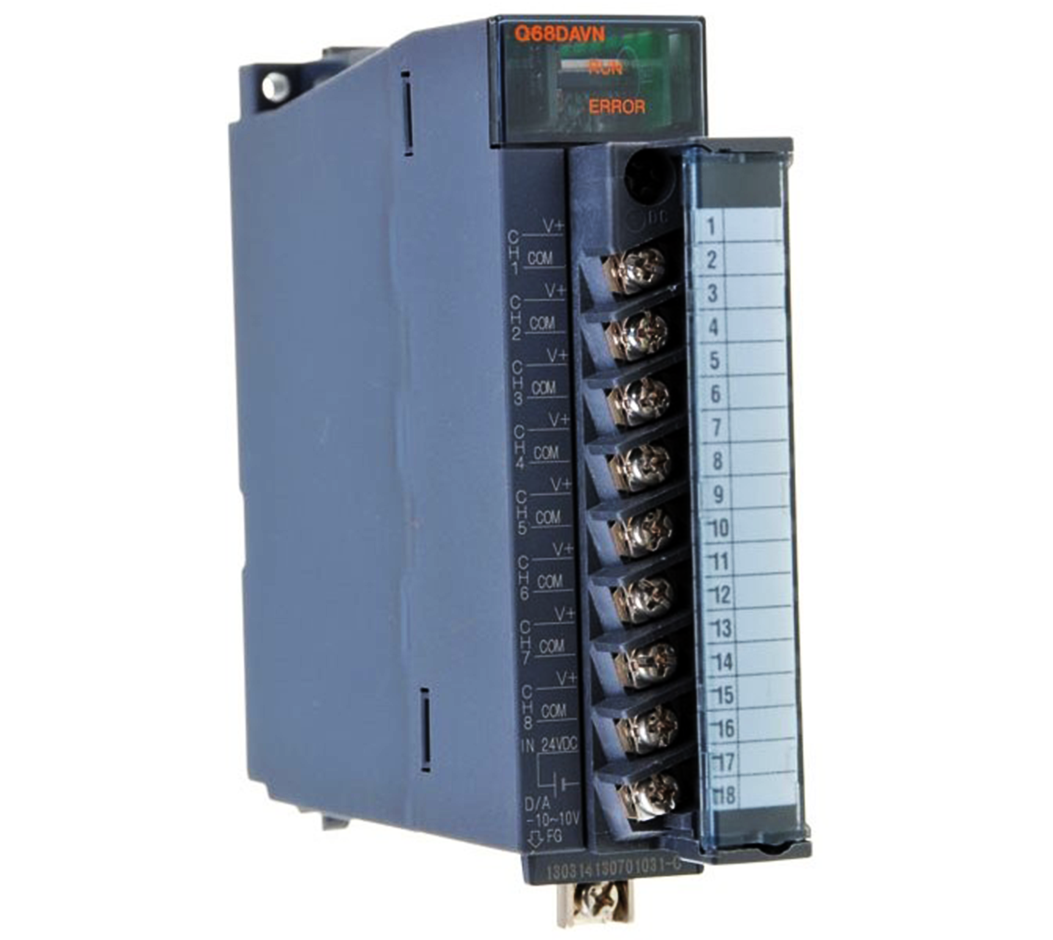

Q68DAVN | Mitsubishi| Digital-Analog Converter Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Mitsubishi Q68DAVN analog output module truly stands out as a robust and indispensable component within the MELSEC-Q Series, designed to meet the rigorous demands of industrial automation. With its eight distinct output channels, this unit delivers exceptional precision through 16-bit digital-to-analog conversion, making it perfectly suited for applications where accurate voltage control is paramount. Furthermore, its versatile output range, including options for -10 to 10 VDC, ensures broad compatibility across diverse control systems, while its rapid 80 ¦Ìs/channel conversion speed guarantees real-time responsiveness in dynamic environments. Control engineers and purchasing managers will appreciate its comprehensive protection features and adherence to numerous international standards, underscoring its reliability and robust design for critical operational continuity.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product Type | Digital-Analog Converter Module |
| Series | MELSEC-Q Series |
| Number of Analog Output Channels | 8 points (8 channels) |
| Analog Output Voltage Range | -10VDC to 10VDC (selectable ranges: 0-5V, 1-5V) |
| Digital Input Resolution | 16-bit signed binary (-4096 to 4095; -12288 to 12287; -16384 to 16383) |
| D/A Conversion Speed | 80 ¦Ìs/channel |
| External Power Supply | 24 V DC +20%, -15% (Ripple, spike 500 mV P-P or less) |
| Internal Current Consumption (5V DC) | 0.38 A |
| I/O Occupied Points | 16 points (Intelligent 16 points) |
| Connection Terminal | 18-point terminal block |
| Applicable Wire Size | 0.3 to 0.75 mm2 |
| Weight | 0.2 kg |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 112 mm |
| Output Short-circuit Protection | Protected |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), LR, NK, DNV, ABS, RINA, BV, UKCA |
