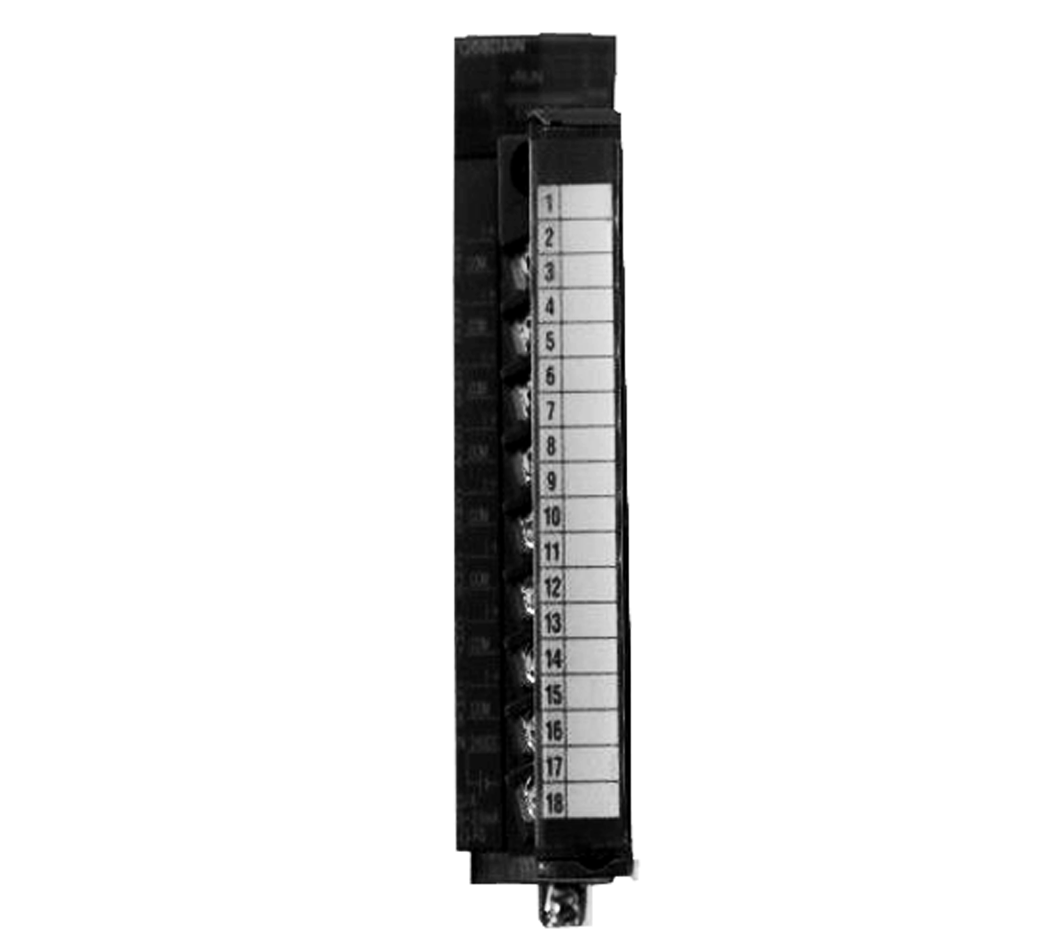

Q68DAIN | Mitsubishi| Digital-Analog Converter Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi Q68DAIN, a high-performance current output analog module, is engineered for demanding industrial automation environments. This robust 8-channel digital-to-analog converter provides unparalleled precision and reliability, essential for intricate process control applications; furthermore, its advanced isolation capabilities significantly reduce electrical interference. Ideal for integration into MELSEC-Q series PLCs, it ensures stable and accurate current output, thereby optimizing system performance.
| Parameter | Specification |
|---|---|
| Product Type | Current Output Analog Module |
| Series | MELSEC-Q Series |
| Output Channels | 8 channels |
| Output Current Range | 0-20mA DC, 4-20mA DC |
| Resolution | 16-bit Signed Binary (Standard: -4096 to 4095; High: -12288 to 12287) |
| Conversion Speed | 80 ¦Ìs/channel |
| Isolation Method | Transformer Isolation (Analog output from external power supply) |
| Dielectric Withstand Voltage | 500VAC for 1 minute (Between analog output and external power supply) |
| Insulation Resistance | 500VDC, 20M¦¸ or more (Between analog output and external power supply) |
| External Load Resistance | 0¦¸ to 600¦¸ (for 0-20mA) |
| Terminal Type | 18-point Terminal Block |
| Internal Current Consumption | 0.38 A |
| Occupied I/O Points on PLC | 16 points |
| External Power Supply | 24VDC +20%, -15% |
| Dimensions (W x H x D) | 27.4mm x 98mm x 112mm |
| Weight | 0.2 kg |
| RoHS Compliance | COMPLIANT |
