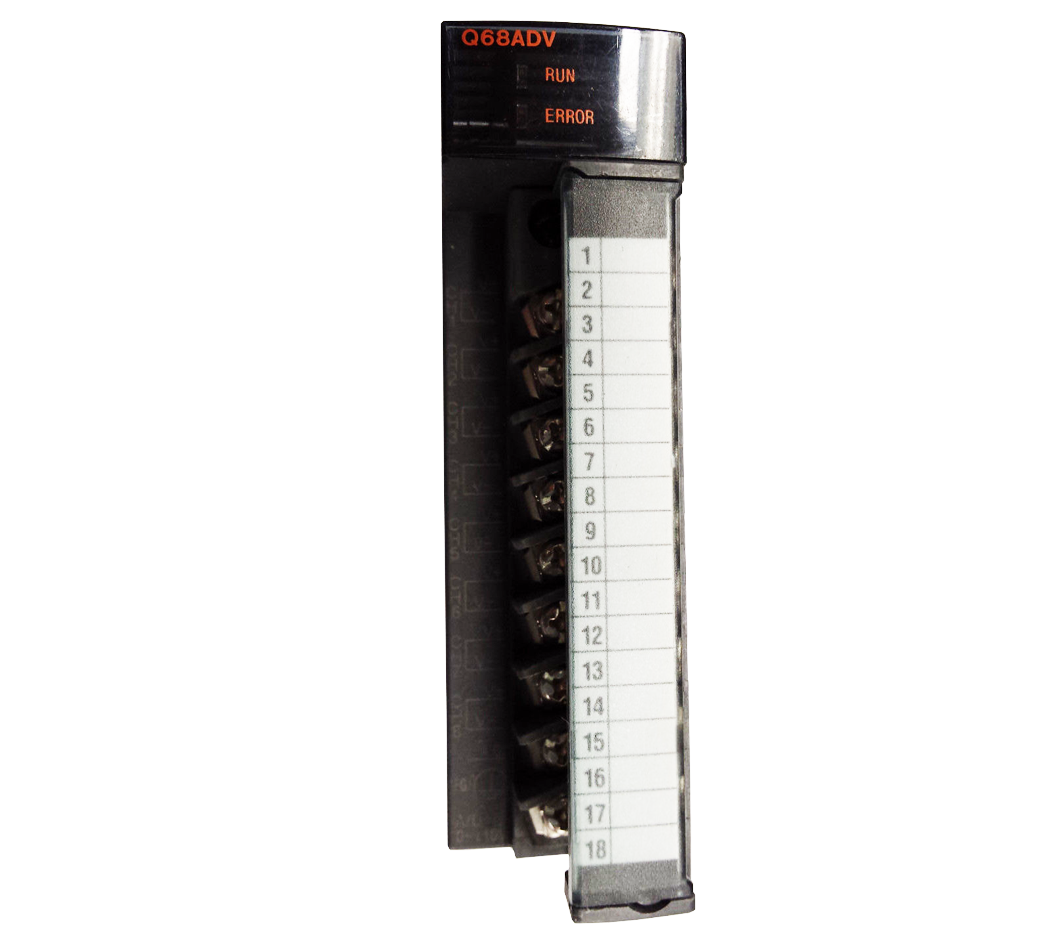

Q68ADV | Mitsubishi| Mitsubishi Analog Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for high-precision industrial automation, the Mitsubishi Q68ADV module seamlessly converts up to eight analog voltage inputs into a 16-bit signed binary digital format, thus enabling accurate data acquisition for sophisticated measurement and control systems. This indispensable component, part of the robust MELSEC-Q Series, ensures reliable performance and swift signal processing in demanding environments, while also incorporating essential safety features.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-Q Series |
| Product Type | Analog to Digital Converter (ADC) Module |
| Number of Analog Input Channels | 8 points (8 channels) |
| Analog Input Voltage Range | -10 to 10 V DC |
| Input Resistance Value | 1 MΩ |
| Digital Output Format | 16-bit signed binary |
| Normal Resolution Output Range | -4096 to 4095 |
| High-Resolution Output Range | -12288 to 12287 or -16384 to 16383 |
| A/D Conversion Speed | 80 µs/channel (plus 160 µs for temperature drift compensation) |
| Accuracy (at 25±5°C) | ±0.1% (relative to max. digital output value) |
| Internal Current Consumption (5V DC) | 0.64 A |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Weight | 0.19 kg |
| Isolation Method | Photocoupler insulation (between I/O terminal and controller power supply) |
| Regulatory Compliance | CE, UL/cUL, UKCA, ABS, BV, DNV GL, LR, NK, RINA |
