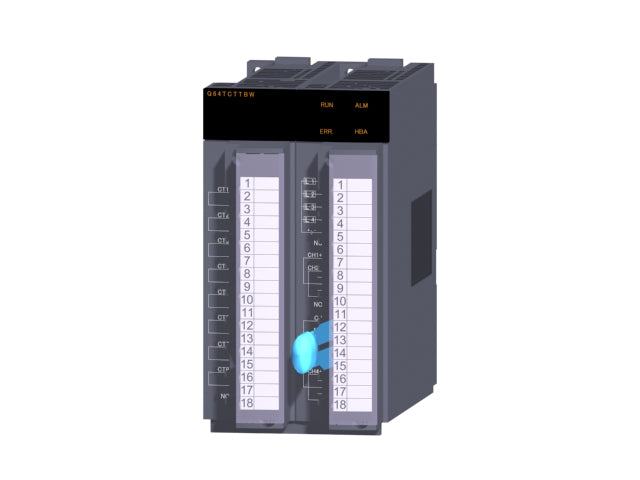

Q64TCTTBW | Mitsubishi| Temperature Control Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi Q64TCTTBW stands as a truly robust 4-channel thermocouple type temperature control module, specifically designed for seamless integration within MELSEC-Q series programmable logic controllers. This unit excels in delivering precise thermal regulation across demanding industrial environments, moreover offering sophisticated PID control alongside exceptionally reliable transistor outputs, guaranteeing optimal process stability and efficiency.
| Parameter | Specification |
|---|---|
| Module Type | Thermocouple Type Temperature Control Module |
| Number of Input Channels | 4 channels/module |
| Applicable Thermocouple Types | R, K, J, T, S, B, E, N, U, L, PLII, W5Re/W26Re |
| Sampling Cycle | 500 ms/4 channels |
| Control Output Type | Transistor output |
| Control Method | PID ON/OFF Pulse or Two-Position Control |
| Rated Load Voltage (Output) | DC10 to 30V |
| Max Load Current (Output) | 0.1A/1 point, 0.4A/common |
| Input Impedance | 1 M¦¸ |
| Cold Junction Compensation Accuracy | Within ¡À1.0 ¡ãC (Measured temp: ¡Ý -100 ¡ãC) |
| Heater Disconnection Detection | Integrated capability with current sensor specifications |
| Isolation Method | Channel Isolated |
