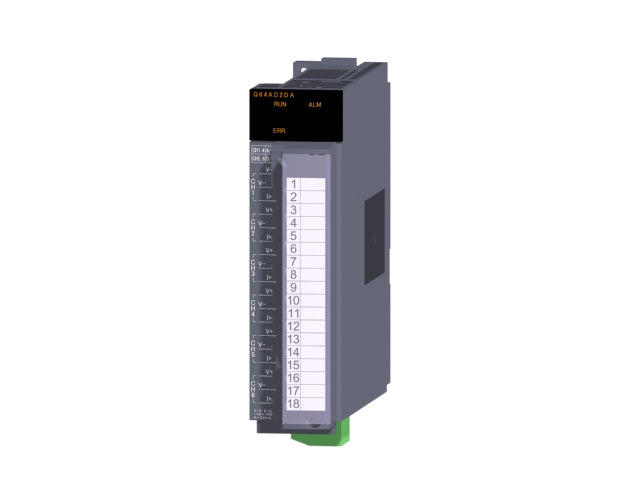

Q64AD2DA | Mitsubishi| Digital-analog conversion unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting industrial applications, the Mitsubishi Q64AD2DA stands out as a high-performance combined analog input/output module within the renowned MELSEC-Q Series. This robust unit is adept at handling both voltage and current signals, featuring four discrete input channels alongside two dedicated output channels. Significantly, it¡¯s a critical component for systems demanding precise data acquisition and stable analog signal transmission, proving invaluable across diverse applications such as process control, sophisticated production lines, and intricate assembly systems. Furthermore, its 16-bit resolution on the input side guarantees exceptional accuracy, making it ideal for critical tasks like temperature regulation, meticulous motor speed control, or even precise actuator positioning.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Type | Analog Input/Output Combined Unit |
| Analog Input Channels | 4 channels |
| Analog Output Channels | 2 channels |
| Input Voltage Range | DC -10 to +10V (also 0-10V, 0-5V, 1-5V) |
| Input Current Range | DC 0 to 20mA (also 4-20mA) |
| Output Voltage Range | DC -10 to +10V (also 0-5V, 1-5V) |
| Output Current Range | DC 0 to 20mA (also 4-20mA) |
| Input Resolution | 16-bit |
| Conversion Speed (A/D & D/A) | 500 ¦Ìs/channel |
| Internal Current Consumption (5V DC) | 0.17A |
| External Power Supply | DC 24V |
| Wiring Connection | 18-point screw terminal block (M3) |
| Operating Temperature | 0 to 55¡ãC |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 112 mm |
| Weight | 0.23 kg |
