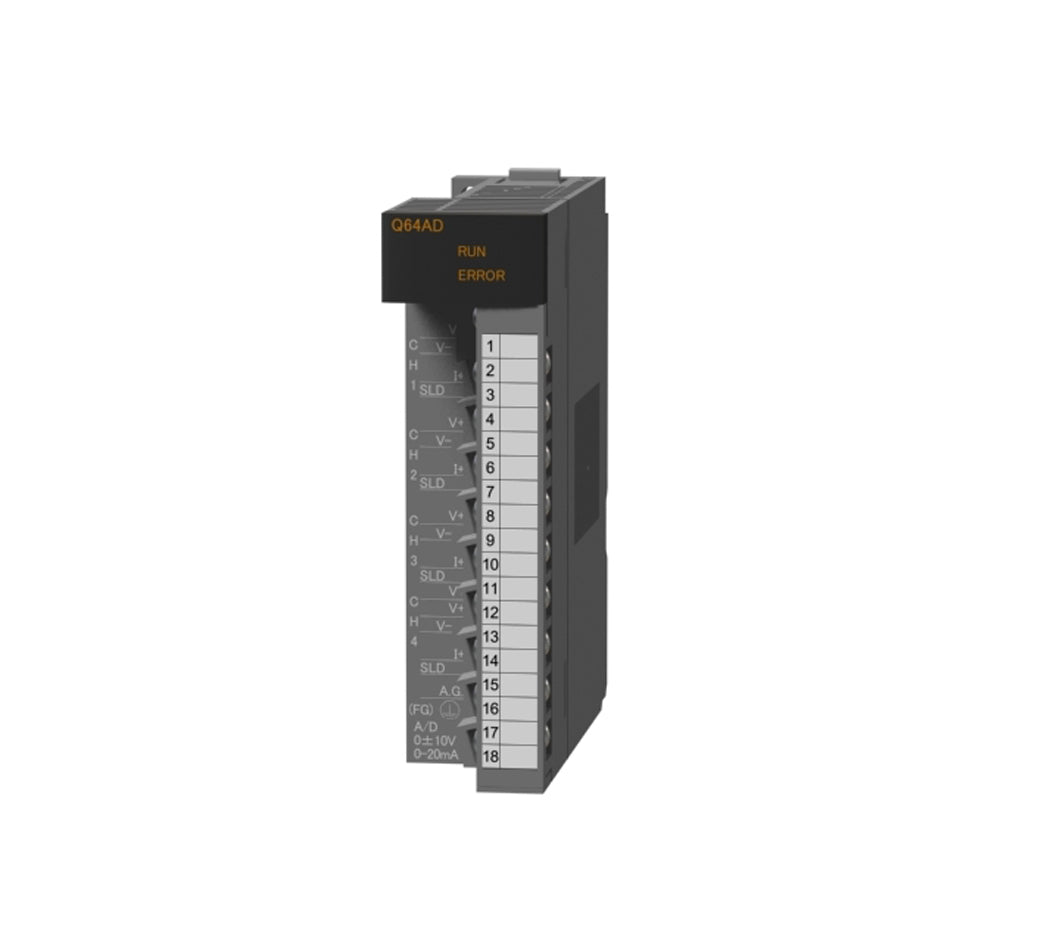

Q64AD | Mitsubishi| Analog Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for the demanding environments of industrial automation, the Mitsubishi Q64AD stands as a highly versatile 4-channel analog input module within the robust MELSEC-Q Series. This unit expertly manages a wide array of voltage and current signals, converting them with remarkable speed and precision for your programmable logic controller; consequently, it proves indispensable in critical process control and intricate machine monitoring applications where reliable data acquisition is paramount.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Module Type | Analog Input Module (A/D Converter) |
| Number of Channels | 4 channels |
| Input Voltage Ranges | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V |
| Input Current Ranges | 0 to 20 mA, 4 to 20 mA |
| A/D Conversion Speed | 80 ¦Ìs/channel |
| Resolution | 16-bit (signed binary) / 32-bit (signed binary) |
| Occupied I/O Points | 16 points |
| Internal Current Consumption | 0.63 A (at 5 VDC) |
| Wiring Type | Screw terminals |
| Accuracy | ¡À 0.1% (at 25 ¡À 5 ¡ãC) |
| Channel-to-Channel Isolation | Non-insulated |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Weight | 0.18 kg |
