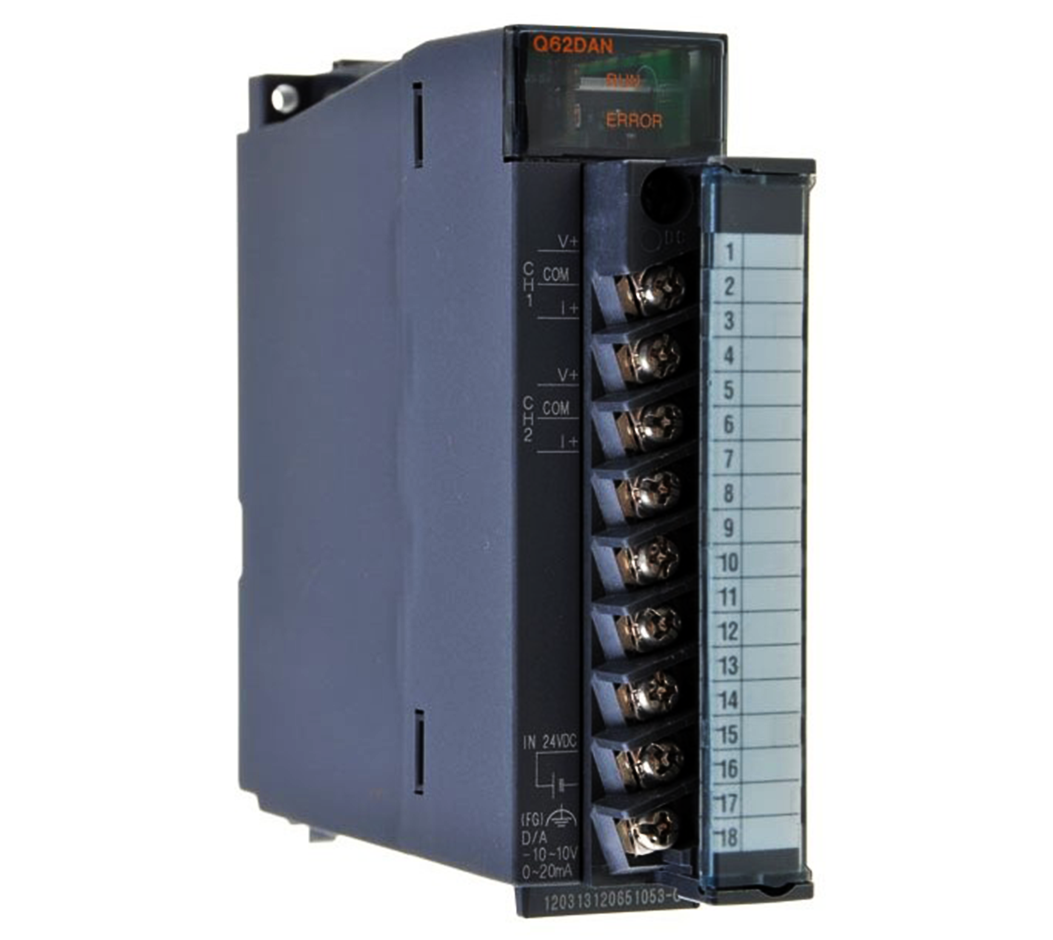

Q62DAN | Mitsubishi Digital-Analog Converter Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi Q62DAN module stands as a robust, high-performance digital-analog converter, purpose-built for seamless integration into MELSEC-Q series programmable logic controllers. Its dual-channel architecture provides versatile voltage and current outputs, proving indispensable for precise process control, motion applications, and various other industrial automation tasks where accurate analog signaling is paramount. This module is truly designed for demanding environments, ensuring reliable operation and flexible control options for engineers and purchasing managers alike.
| Parameter | Specification |
|---|---|
| Number of Analog Output Channels | 2 channels |
| Output Voltage Range | -10VDC to 10V; 0-5V; 1-5V |
| Output Current Range | DC0mA to 20mA; 4-20mA |
| Digital Input Resolution | 16-bit signed binary (Standard: -4096 to 4095; High: -12288 to 12287, -16384 to 16383) |
| D/A Conversion Speed | 80 ¦Ìs/1 channel |
| External Power Supply | 24VDC +20% -15% (Ripple & Spike 500mVP-P or less) |
| Internal Current Consumption (5VDC) | 0.33A |
| Output Short-Circuit Protection | Protected |
| Isolation Method | I/O terminal from PLC power: Photocoupler isolation; Analog output from external power: Transformer isolation |
| Dielectric Withstand Voltage | 500VAC for 1 min (I/O terminals to PLC power; Analog output to external power) |
| Insulation Resistance | 500VDC, 20M¦¸ or more (I/O terminals to PLC power; Analog output to external power) |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 112 mm |
| Weight | 0.19 kg |
| Wiring Connection | 18-point terminal block, Screw wiring |
