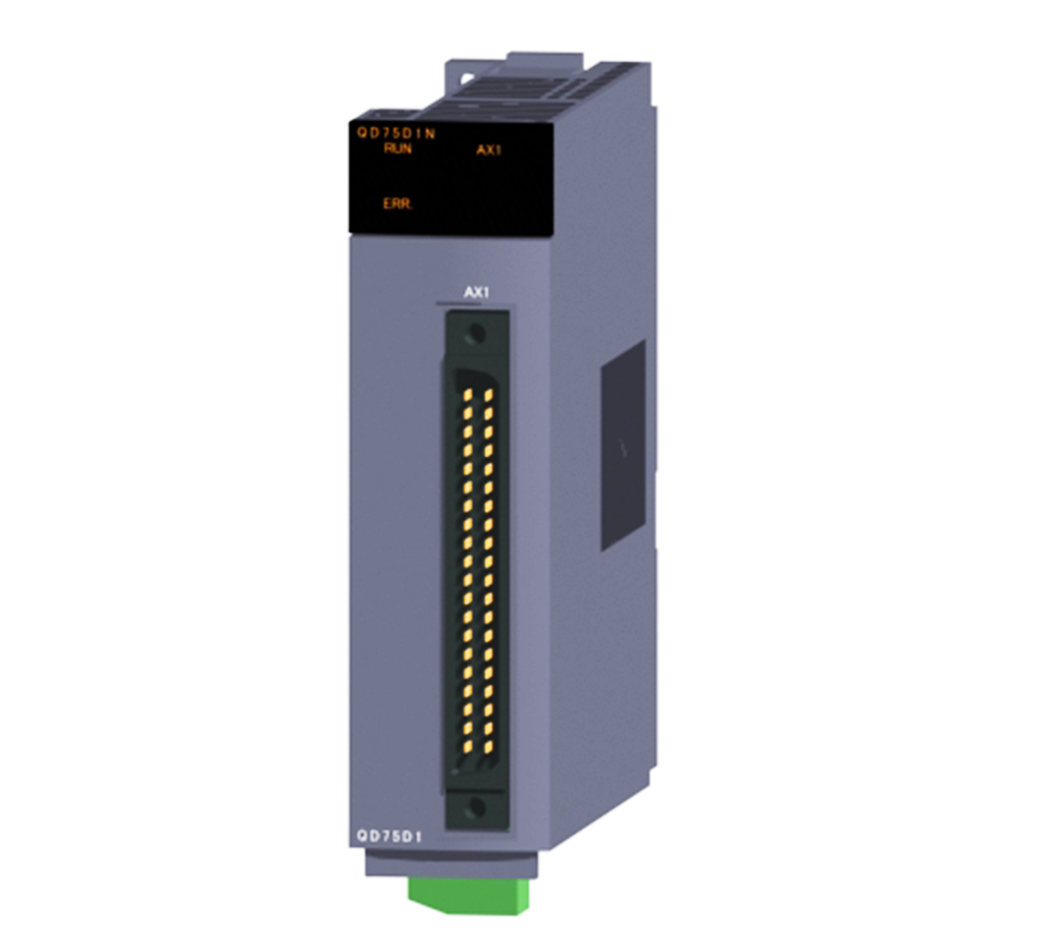

Positioning unit QD75D1N
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD75D1N is a high-performance positioning line driver output module, meticulously engineered for precise motion control within demanding industrial automation environments. This 1-axis unit, crucial for setups requiring exceptional accuracy and repeatability, ensures seamless integration with various Mitsubishi PLCs, notably those in the QnU Series. Furthermore, its robust design and differential driver output make it an invaluable component for advanced motion control applications, offering versatile functionalities while maintaining operational stability.
| Parameter | Specification |
|---|---|
| Module Type | Positioning Line Driver |
| Axis Count | 1 axis |
| Output Configuration | Differential Driver Output |
| Maximum Output Pulse | 1 Mpulse/s |
| Control Unit | mm/inch/degree/pulse |
| Number of Positioning Data | 600/axis |
| Communication Interface | QnU Series |
| DC5V Current Consumption | 0.52A |
| Enclosure Protection | IP20 |
| Operating Temperature | -10¡ãC to 60¡ãC |
| Weight | 0.15 kg (0.33 lb.) |
| Power Supply | External Power Supply Required |
| Max. Connection Distance (Servos) | 10m (32.81ft) |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), LR, NK, DNV, ABS, RINA, BV |
