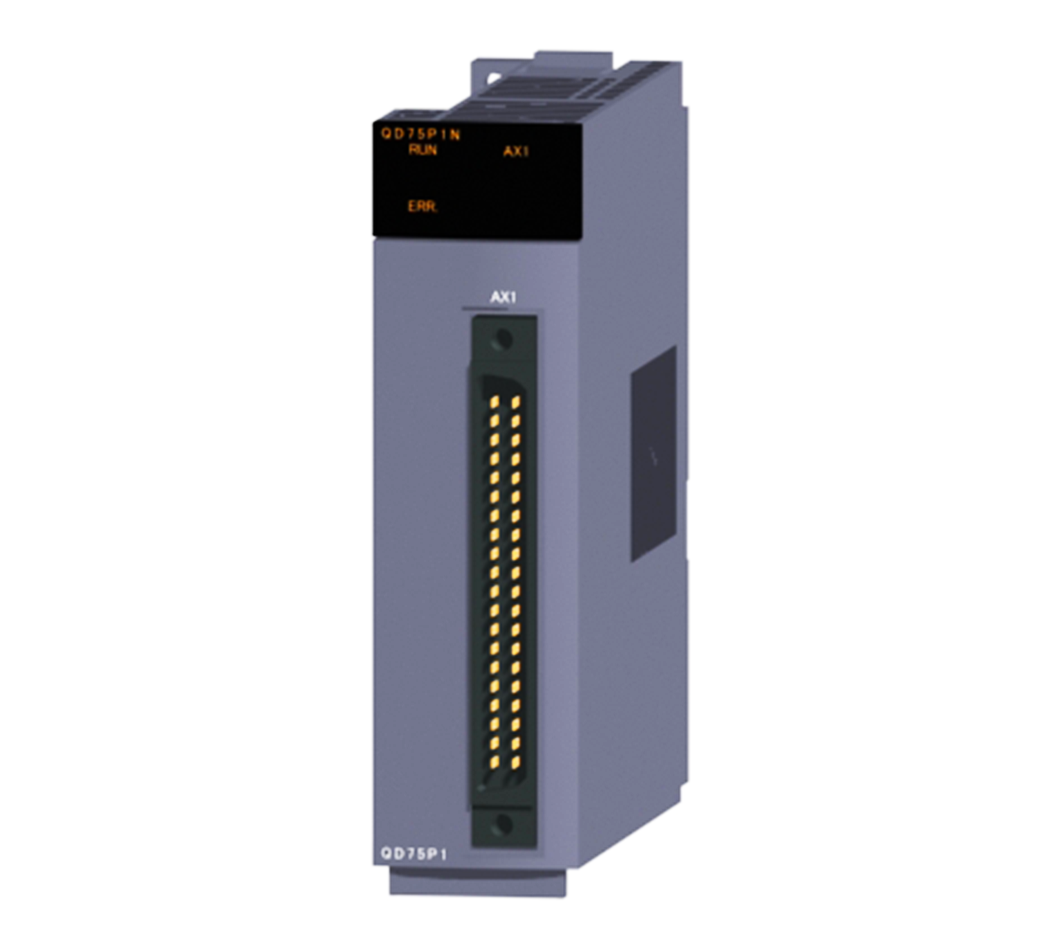

Positioning unit (open collector output type) QD75P1N
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for precision motion control, the Mitsubishi QD75P1N is a high-performance 1-axis positioning module. Seamlessly integrating into MELSEC-Q series systems, it offers exceptional accuracy and control for diverse industrial automation applications, ensuring robust and reliable operation.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q Series |
| Number of Control Axes | 1 axis |
| Output Type | Open Collector Output |
| Control Unit | mm, inch, degree, pulse |
| Number of Positioning Data | 600 data/axis |
| Max. Output Pulse | 200 kpps (kpulse/s) |
| DC5V Current Consumption | 0.29 A |
| Weight | 0.14 kg |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Conformance Standards | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
| Connector | 40-pin connector (connector sold separately) |
| Control Method | PTP control, trajectory control, speed/position switching control |
