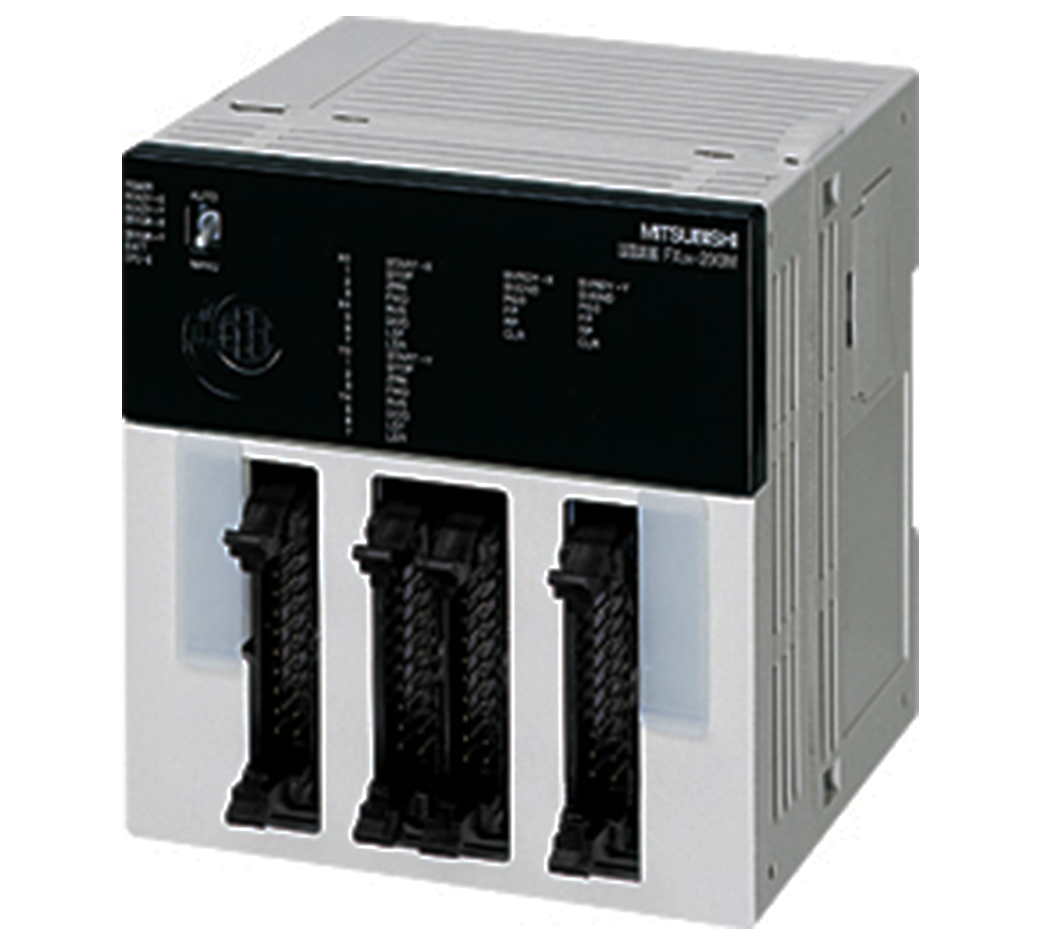

Positioning unit FX2N-20GM
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX2N-20GM is a robust, high-performance two-axis positioning control module, seamlessly integrating with FX2N series PLCs. It delivers precise motion control for demanding automation tasks, supporting point-to-point, linear, and circular interpolation, thereby proving ideal for applications ranging from robotic arms to automated assembly lines. Furthermore, its advanced features include absolute position detection and support for manual pulse generators, ensuring enhanced flexibility and control in complex systems.
| Parameter | Specification |
|---|---|
| Compatibility | Mitsubishi FX2N Series PLCs |
| Number of Control Axes | 2-axis positioning control |
| Control Modes | Point-to-point, Linear Interpolation, Circular Interpolation |
| Max. Pulse Output Frequency | 200 kHz (100 kHz during interpolation) |
| Power Supply Voltage | 24V DC +10%, -15% |
| Power Consumption | 10W |
| Allowable Instantaneous Power Failure Time | 5 ms or less |
| Operating Ambient Temperature | 0 to 55¡ãC |
| Operating Ambient Humidity | 35 to 85% RH (No condensation) |
| Vibration Resistance | 10 to 57 Hz: Half 0.035 mm amplitude; 57 to 150 Hz: 4.9 m/s2 Acceleration (Sweep count: 10 times in each X, Y, Z direction) |
| Shock Resistance | 147 m/s2 acceleration, 11 ms action time (3 times in each X, Y, Z direction) |
| Conformance Standards | UL cUL CE(EMC) KC(EMC) |
