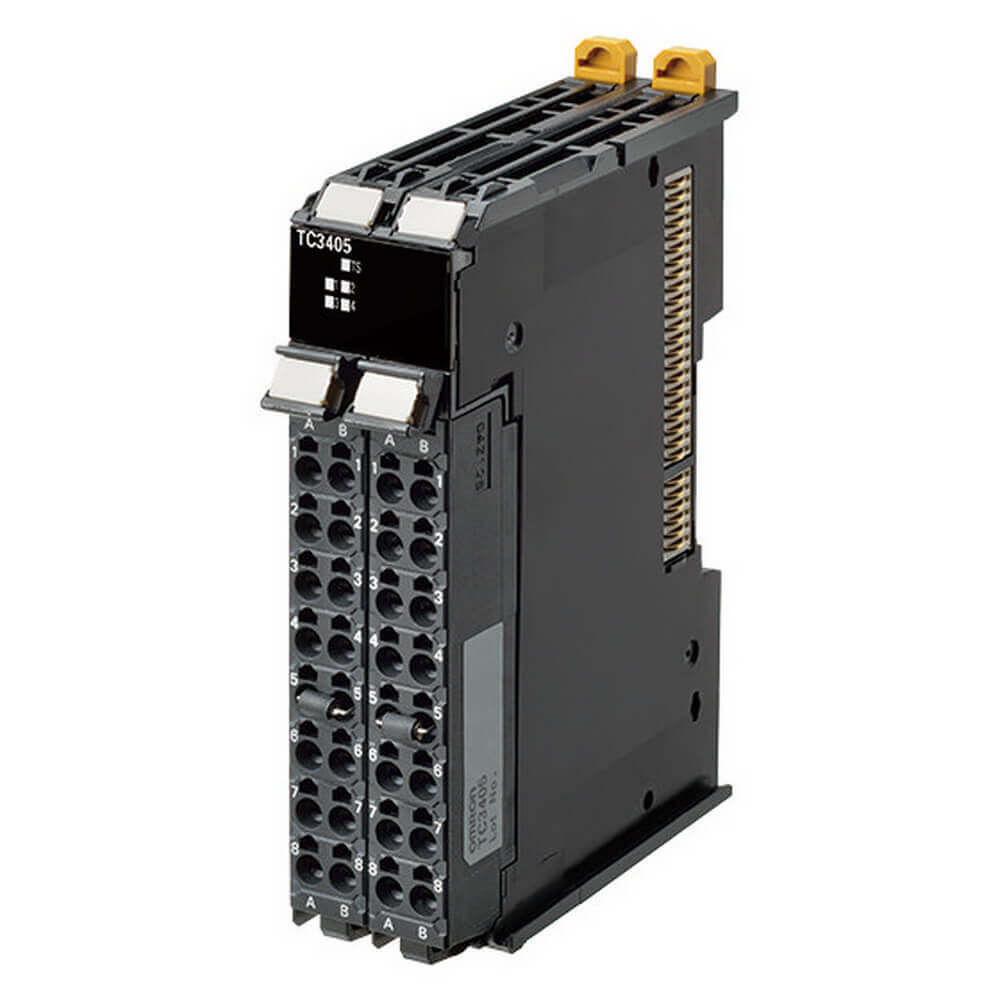

Omron | NX-TC3405 | NX-series Temperature Control Unit (4-Channel Type)
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting thermal management, the Omron NX-TC3405 stands as a robust 4-channel temperature control unit, meticulously designed for integration within the NX-series I/O system. This versatile module deftly handles a wide array of temperature sensor inputs, including thermocouples and Pt100/Pt1000 RTDs, alongside CT inputs for heater burnout detection. Furthermore, its reliable voltage outputs are perfectly suited for driving solid-state relays, ensuring consistent and precise control across diverse industrial automation environments.
| Parameter | Specification |
|---|---|
| Number of Channels | 4 channels |
| Input Type | Thermocouple (K, J, T, E, L, U, N, R, S, B, C/W, PLII), Pt100, JPt100, Pt1000, CT |
| Output Type | Voltage output (for driving SSR) |
| Number of Digital Outputs | 4 points |
| Rated Output Voltage | 24 VDC |
| Max. Load Current | 21 mA/point |
| Conversion Time | 50 ms/Unit |
| I/O System | NX I/O Bus |
| Heater Burnout Detection | True |
| Isolation Method | Isolated between sensor inputs/internal circuitry; between inputs |
| Degree of Protection | IP20 |
| Operating Ambient Temperature | 0 to 55 ¡æ |
| Connection Method | Screwless clamping terminal block / Push-in Plus terminals |
| Dimensions (H x W x D) | 100 x 24 x 80 mm |
