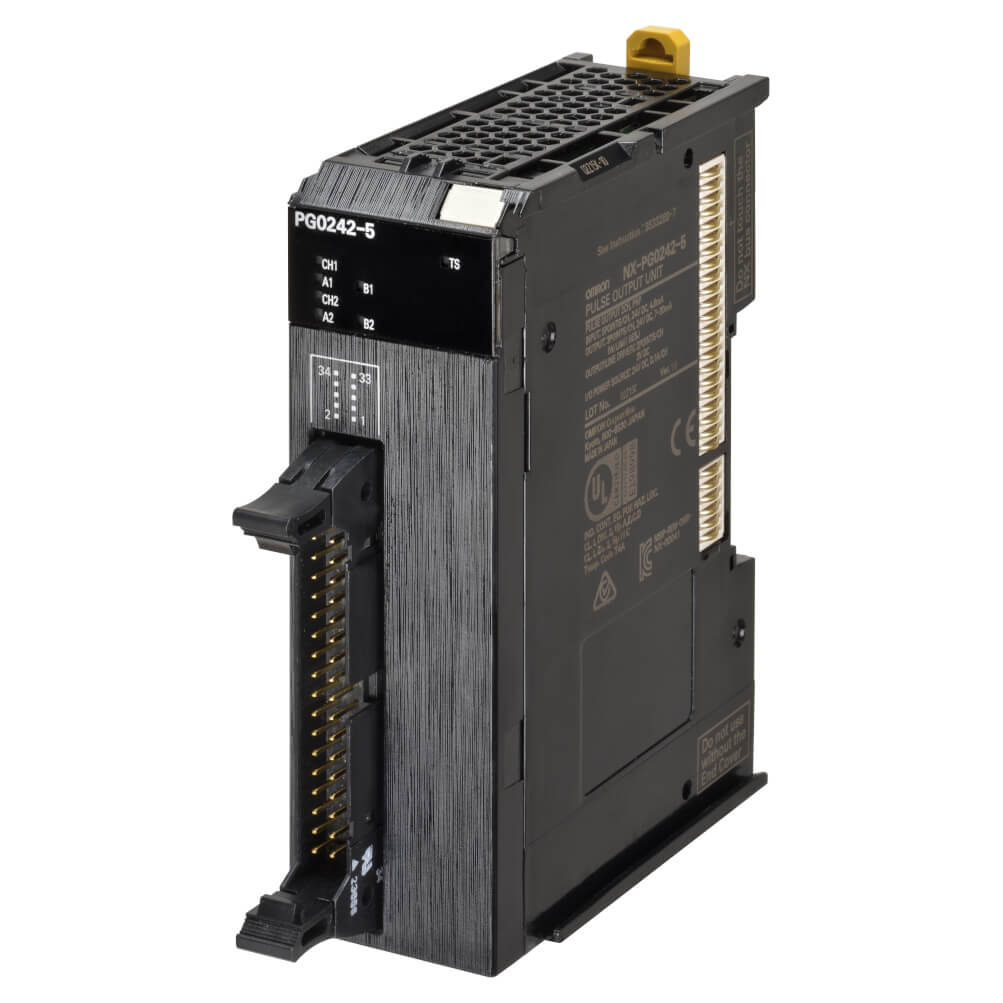

Omron | NX-PG0242-5 | Pulse Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting requirements in industrial automation, the Omron NX-PG0242-5 stands out as a sophisticated dual-channel pulse output unit. This unit is specifically designed to provide highly accurate and synchronized control signals, which are absolutely critical for modern PLC-based machine control systems. Moreover, its compact footprint, coupled with a convenient MIL connector and straightforward DIN rail mounting, simplifies integration into existing or new control panels, thus enhancing both reliability and operational efficiency.
| Parameter | Specification |
|---|---|
| Function | Pulse Output Unit |
| Output Channels | 2 channels |
| Output Type | Line driver (RS-422), PNP, Voltage pulse |
| Max. Pulse Output Frequency | 4 MHz (4000 kHz) |
| Digital Inputs | 5 x digital inputs (24Vdc, PNP, external inputs) |
| External Outputs | 3 x external outputs (PNP line driver control outputs) |
| I/O Connection Type | MIL connector (plug not included) |
| Mounting Type | DIN rail |
| Width | 12 mm |
| Height | 100 mm |
| Depth | 71 mm |
| Power Consumption | 1.15 W max. |
| Degree of Protection | IP20 |
| Ambient Operating Temperature | 0 to 55¡ãC |
| Ambient Operating Humidity | 10% to 95% (no condensation or icing) |
| Standards Compliance | cULus (Class I Division 2 for Hazardous Locations), RoHS compliant |
