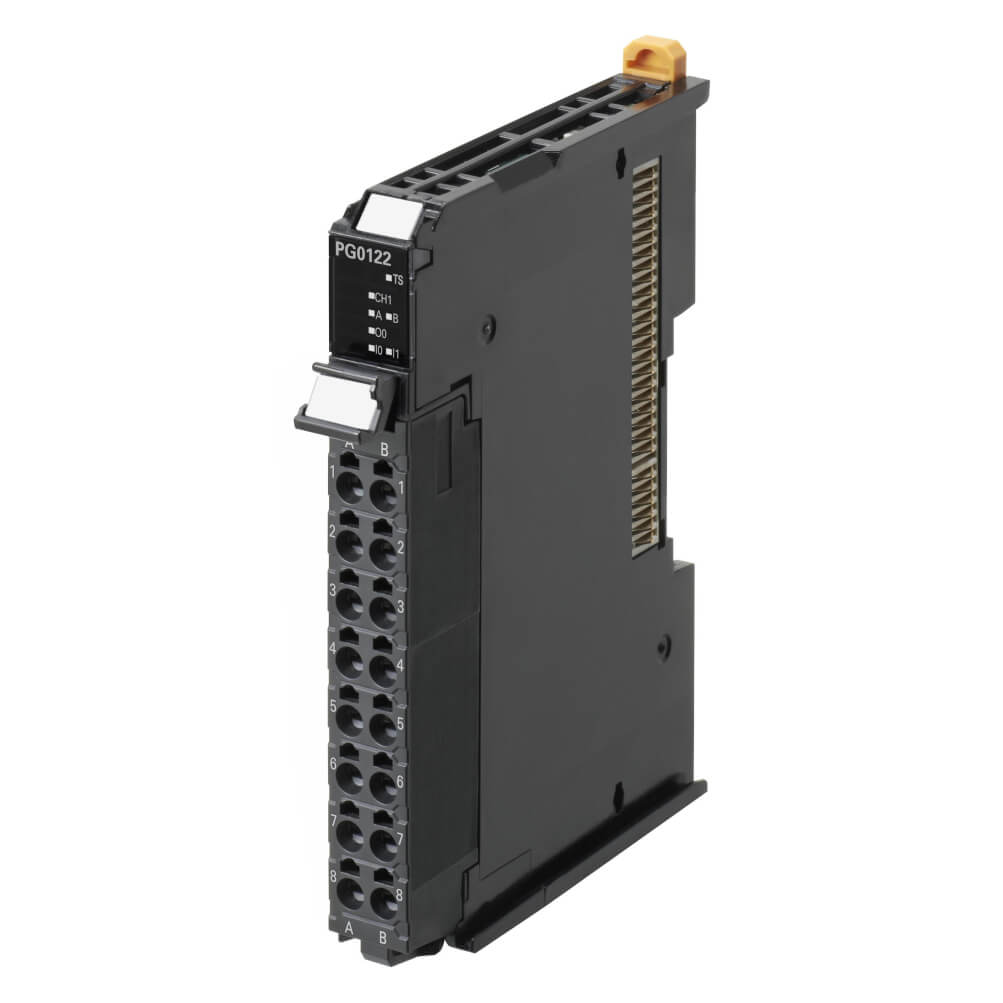

The Omron NX-PG0122 stands as a crucial pulse output unit designed specifically for single-axis motion control within Omron's advanced NX-series automation platform. This module offers robust positioning capabilities, making it ideal for accurately driving stepper motor and servo drives with pulse string inputs. Furthermore, its PNP open collector outputs ensure reliable operation in demanding industrial environments, seamlessly integrating into your existing control architecture via a screwless clamping terminal block for streamlined installation and maintenance.
| Parameter | Specification |
|---|---|
| Model | NX-PG0122 |
| Number of Axes | 1 |
| Output Type | Open Collector (PNP type) |
| External Connections | Screwless clamping terminal block (16 terminals) |
| Maximum Pulse Output Speed | 500 kpps |
| Input Voltage Range | 20.4 to 28.8 VDC (24 VDC +20%/-15%) |
| Rated Output Voltage | 24 VDC |
| Maximum Load Current | 30 mA |
| External Inputs | 2 (PNP) |
| External Outputs | 1 (PNP, configurable for forward/reverse pulse or external output) |
| Ambient Operating Temperature | 0 to 55¡ãC |
| Dimensions (W¡ÁH¡ÁD) | 12 ¡Á 100 ¡Á 71 mm |
| Power Consumption | 1.30 W max. (supplied from NX bus) |
| I/O Refreshing Method | Synchronous I/O refreshing or task period prioritized refreshing |
