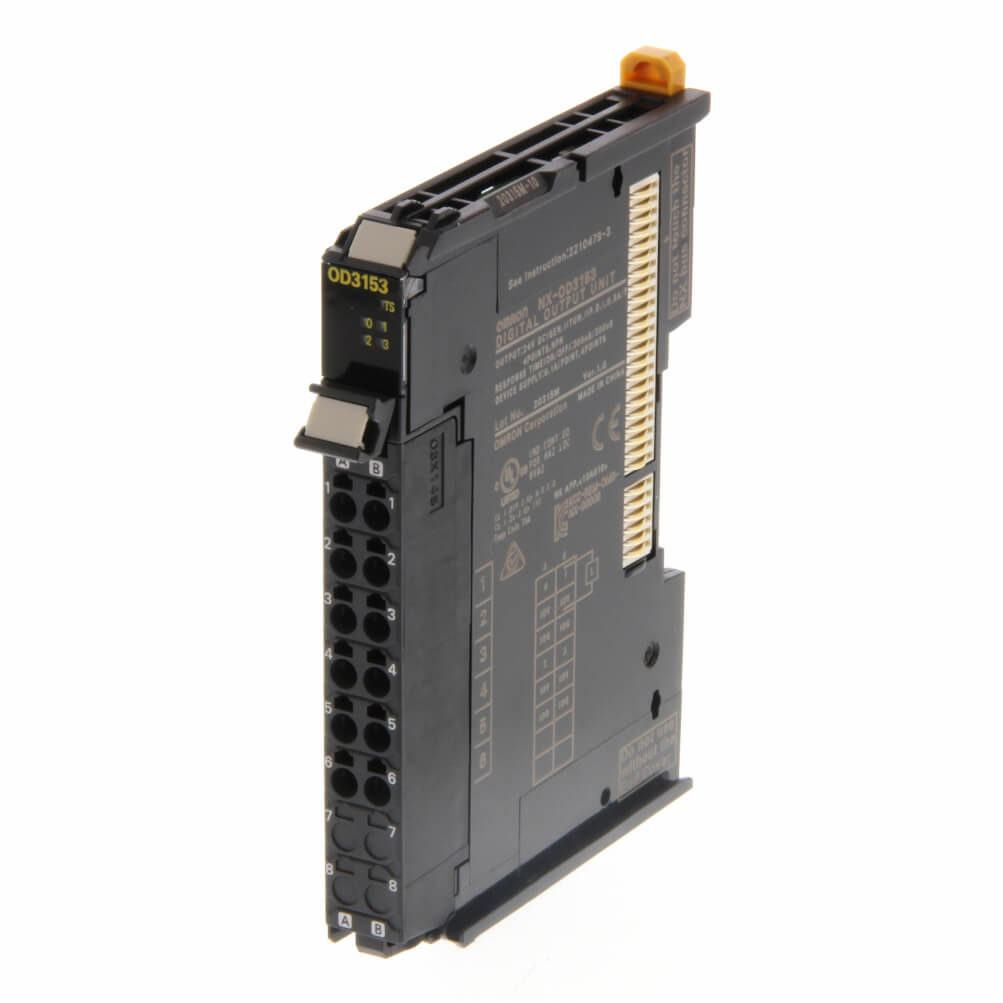

Omron | NX-OD3153 | Transistor Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting control in sophisticated industrial automation systems, the Omron NX-OD3153 stands out as a highly efficient 4-point NPN digital output unit. This module integrates seamlessly into the Omron NX Series, thereby offering superior performance for both high-speed synchronous and general-purpose applications. Furthermore, its compact 12mm width and convenient screwless push-in terminals significantly streamline installation and maintenance, truly a boon for purchasing managers and control engineers alike seeking to optimize cabinet design and operational reliability. Ultimately, this robust unit is designed to meet stringent demands, ensuring precise and dependable output management across a myriad of tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NX-OD3153 |
| Number of Output Points | 4 digital outputs |
| Output Type | NPN Transistor |
| Rated Output Voltage | 24 VDC |
| Max Output Current per Point | 0.5 A |
| Max Total Current per Unit | 2 A |
| I/O Refreshing Method | Selectable Synchronous I/O or Free-Run refreshing |
| ON/OFF Response Time | 300 ns max. (ON-to-OFF / OFF-to-ON) |
| Operating Load Voltage Range | 15 to 28.8 VDC |
| Connection Type | Screwless Push-in Terminal Block |
| Unit Width | 12 mm |
| Degree of Protection | IP20 |
| Power Consumption (Internal) | 0.90 W max. (30 mA max.) |
| Mounting Type | DIN Rail |
