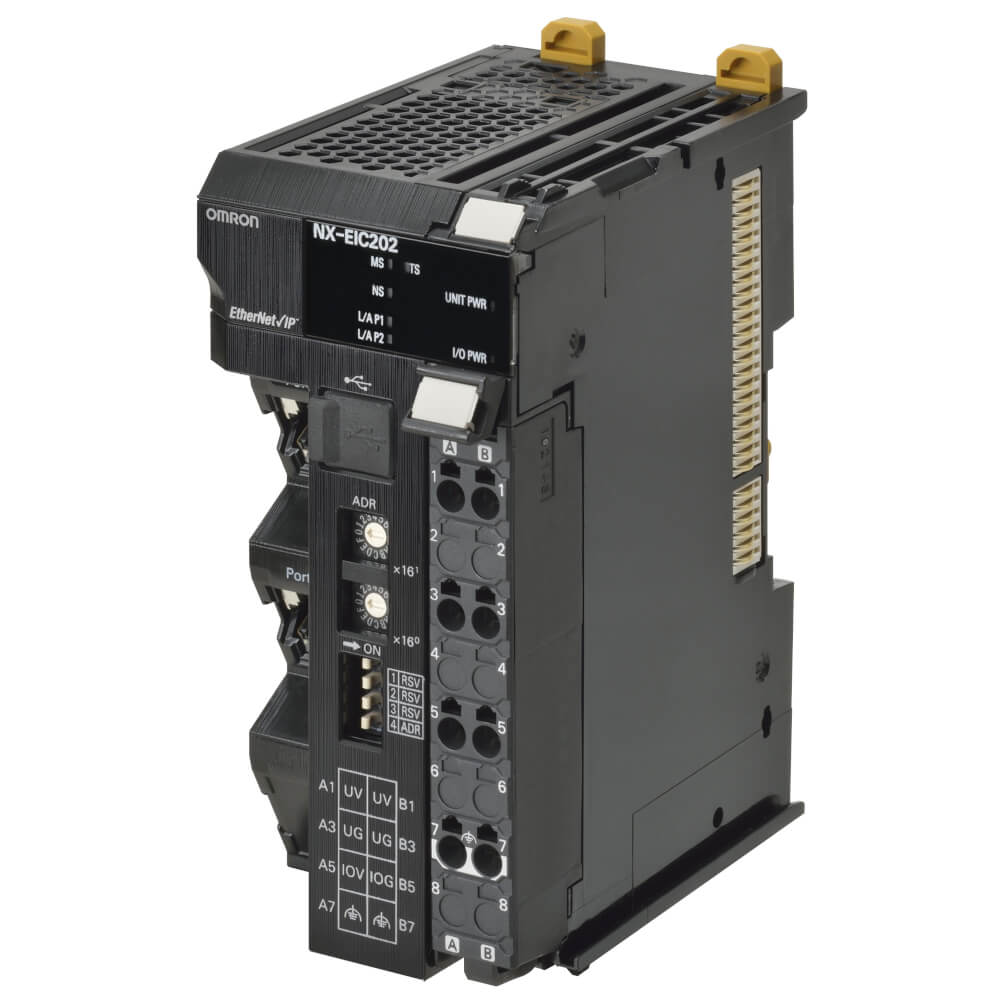

Omron | NX-EIC202 | NX-series EtherNet/IP Coupler Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for seamless integration within demanding industrial automation systems, the Omron NX-EIC202 EtherNet/IP coupler unit serves as a vital link, bridging the robust EtherNet/IP network with Omron's versatile NX-series I/O and safety units. This high-performance module supports up to 63 NX I/O units, allowing for incredibly flexible system designs where both standard and high-performance modules can be effortlessly mixed. Furthermore, its dual RJ45 ports facilitate various network topologies¡ªline, tree, or star¡ªwhile screwless push-in connectors streamline installation, ensuring efficient and reliable data exchange in even the most complex machine control or process automation environments. Configuration is notably simplified through a peripheral USB port, enabling direct connection to Sysmac Studio.
| Parameter | Specification |
|---|---|
| Model Number | NX-EIC202 |
| Communication Protocol | EtherNet/IP (UDP/IP, TCP/IP) |
| Network Ports | 2 x RJ45 (100BASE-TX) |
| Connectable NX Units | 63 Units max. |
| Power Supply Voltage | 24 VDC (20.4 to 28.8 VDC) |
| Max I/O Supply Current | 10 A |
| Power Consumption | 1.60 W max. |
| NX Bus I/O Data Size | Input: 512 bytes max.; Output: 512 bytes max. |
| EtherNet/IP I/O Connection Size | Input: 504 bytes max.; Output: 504 bytes max. |
| Protection Rating (IP) | IP20 |
| Mounting Type | DIN rail |
| Ambient Operating Temperature | 0 to 55¡ãC |
| Dimensions (W ¡Á H ¡Á D) | 46 mm ¡Á 100 mm ¡Á 80 mm |
| Weight | Approx. 150 g |
| Connector Type | Screwless Push-In |
| Certifications | CE, cULus, KC, RoHS |
