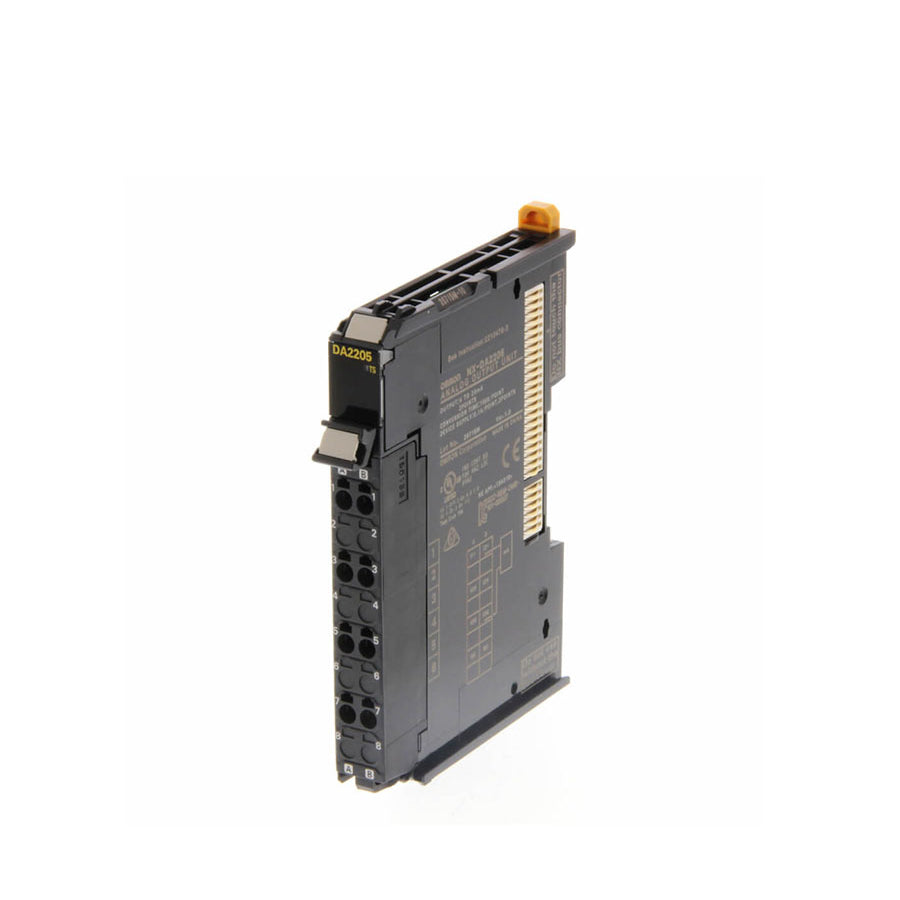

Omron | NX-DA2205 | Analog Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron NX-DA2205 stands as a robust, high-performance analog I/O unit engineered for demanding industrial automation applications. It crucially provides two highly precise 4-20 mA current outputs, ensuring impeccable signal integrity across various systems. Furthermore, its impressive 15-bit resolution, equating to 1:30000, guarantees exceptional accuracy, while a remarkably fast 0.02 ms/unit conversion time (or 10 ¦Ìs per channel) allows for real-time responsiveness. This compact module, designed for efficiency, integrates effortlessly into existing control systems thanks to its slim 12 mm width and convenient screwless push-in terminals, ultimately streamlining installation and ongoing maintenance. Therefore, the NX-DA2205 is an indispensable component for precise control system integration and robust process management.
| Parameter | Specification |
|---|---|
| Number of Analog Outputs | 2 |
| Linear Analog Output Type | 4 to 20 mA |
| Resolution of Analog Outputs | 15 Bit (1:30000) |
| Conversion Time | 0.02 ms/unit (10 ¦Ìs/ch) |
| I/O Refreshing Method | Selectable Synchronous I/O refreshing or Free-Run refreshing |
| I/O Connection Type | Screwless Push-in Spring-clamp Terminals |
| Width | 12 mm |
| Height | 100 mm |
| Depth | 71 mm |
| Degree of Protection | IP20 |
| Supply Voltage (DC) | 24 VDC |
| Power Consumption | 1.45 W max. (Connected to CPU Unit) |
| Compliant Standards | cULus (Class I Division 2), RoHS, CE |
