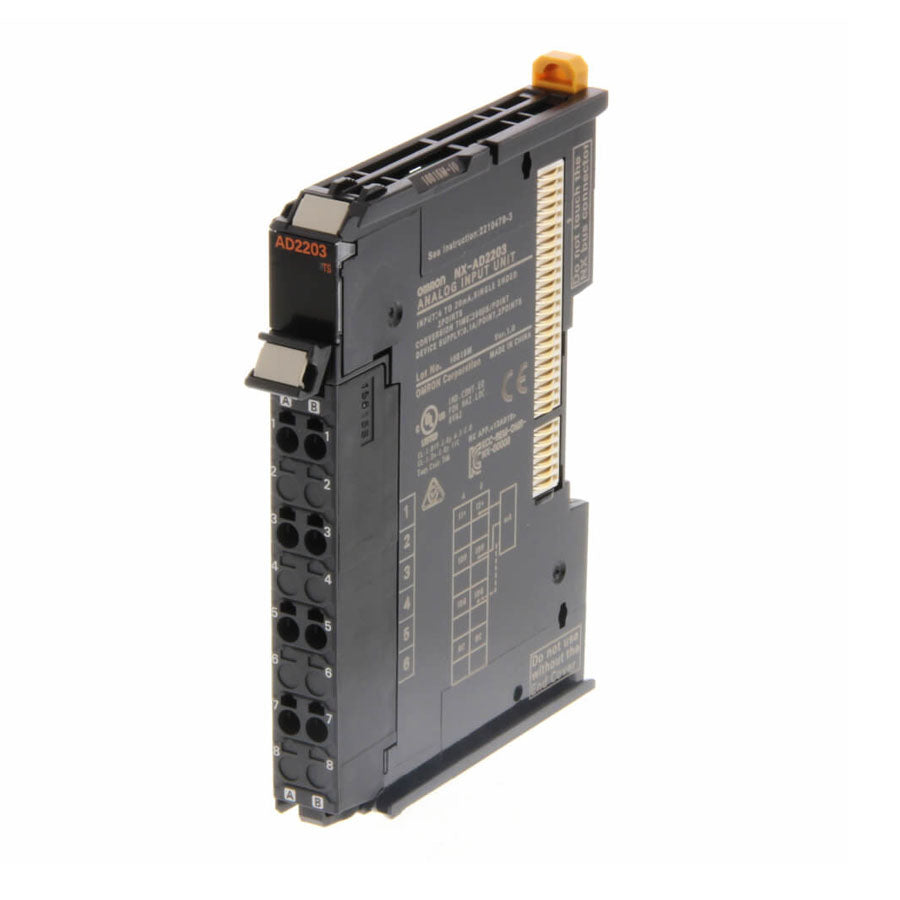

Omron | NX-AD2203 | Analog Input Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron NX-AD2203 stands out as a high-performance analog input unit, meticulously engineered for demanding industrial automation applications. It skillfully manages two analog inputs, specifically 4 to 20 mA single-ended signals, offering precise measurement capabilities thanks to its impressive 13-bit (1:8000) resolution. Furthermore, its rapid 0.5 ms conversion time per unit ensures swift data acquisition, which is often crucial in dynamic control environments. The module's compact 12 mm width and intuitive screwless push-in terminals, designed for easy DIN rail mounting, underscore its commitment to efficient installation and robust, reliable connections within complex control systems.
| Parameter | Specification |
|---|---|
| Number of Analog Inputs | 2 |
| Linear Analog Input Type | 4 to 20 mA |
| Resolution | 13 Bit (1:8000) |
| Conversion Time | 0.5 ms/unit (250 ¦Ìs/ch) |
| Input Circuit Type | Single-ended |
| I/O Connection Type | Screwless Push-in (Spring-Clamp) |
| Width | 12 mm |
| Height | 100 mm |
| Depth | 71 mm |
| Power Consumption | 0.9 W |
| Degree of Protection | IP20 |
| I/O System | NX I/O Bus |
| Supply Voltage (DC) | 24Vdc |
| Mounting Mode | DIN Rail |
| Compliant Standards | cULus (Class I Division 2), EC directives, NK Lloyd, RCM |
