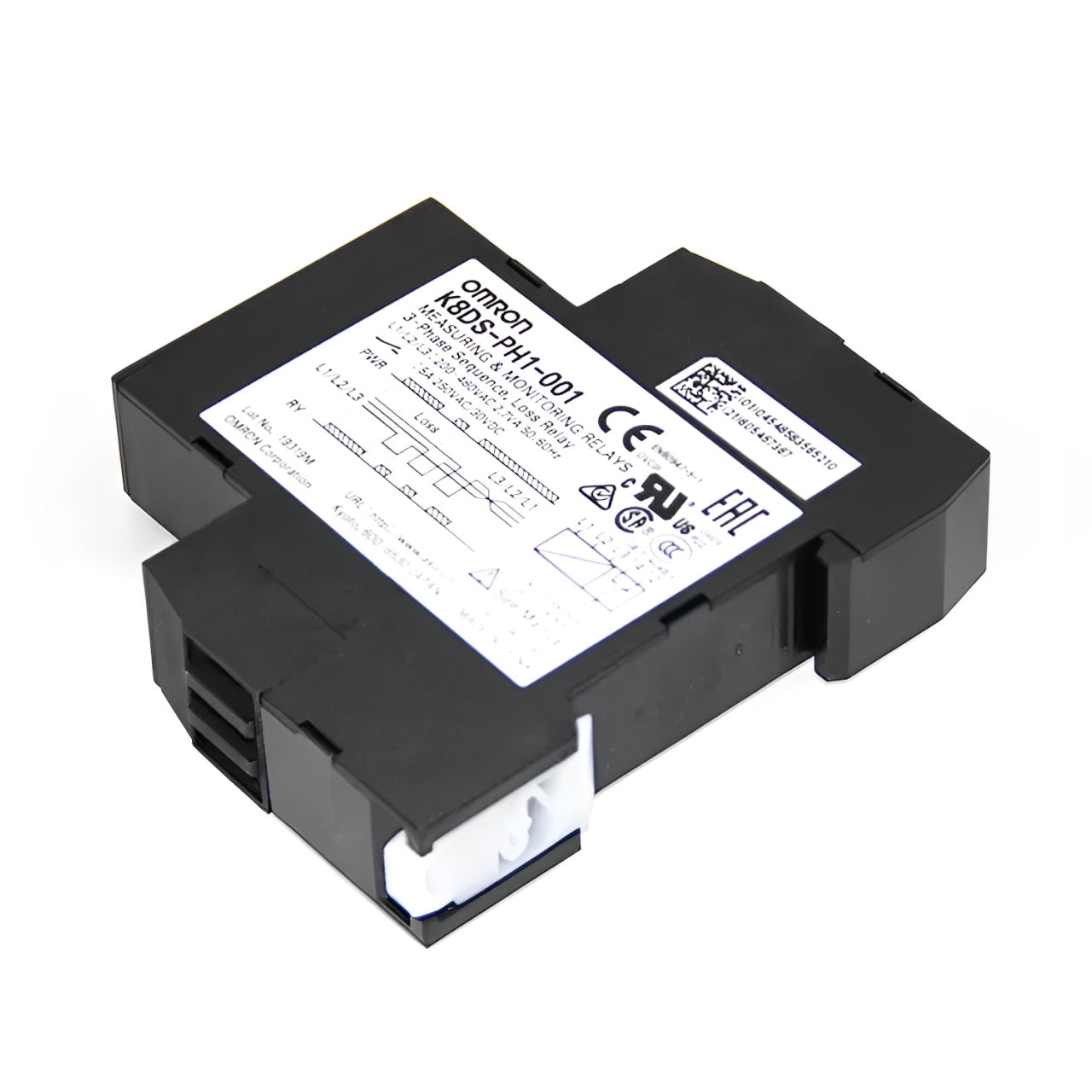

Omron | K8DS-PH1-001 | Three-phase Phase-sequence Phase-loss Relay
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for unwavering performance, the Omron K8DS-PH1-001 stands as a vital component for safeguarding 3-phase, 3-wire electrical systems. This compact relay vigilantly monitors for crucial phase sequence and loss conditions, thereby preventing costly motor damage and ensuring uninterrupted operational continuity. Furthermore, its slim 17.5mm housing facilitates efficient integration into crowded control panels, making it an indispensable asset for various industrial automation applications.
| Parameter | Specification |
|---|---|
| Rated Input Voltage | 200 to 480 VAC (3-phase, 3-wire) |
| Monitoring Functions | Phase sequence & phase loss detection |
| Output Relay Type | 1 SPDT (Single Pole Double Throw) |
| Output Relay Rating (Resistive) | 5 A at 250 VAC / 5 A at 30 VDC |
| Operating Time (Phase Sequence/Loss) | 0.1 s max. |
| Mounting | DIN Rail |
| Dimensions (W x D x H) | 17.5 ¡Á 80 ¡Á 74 mm |
| Ambient Operating Temperature | -20¡ãC to 60¡ãC |
| Degree of Protection (Terminals) | IP20 |
| Reset Method | Automatic Reset |
| Indicators | Power (PWR): Green, Relay Output (RY): Yellow |
| Noise Immunity | Greater resistance to inverter noise; 1,500 V common/normal mode |
| Weight | Approx. 60 g |
