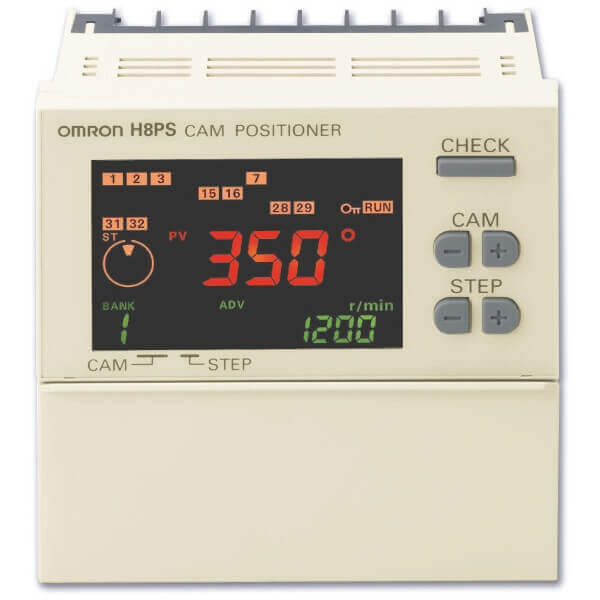

Omron | H8PS-8BF | Cam Positioner
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting control and seamless integration, the Omron H8PS-8BF cam positioner stands out as a robust solution for diverse industrial timing applications. This unit precisely converts absolute encoder angle signals into control outputs, thereby effectively replacing traditional mechanical cam switches. Notably, it supports high-speed operations, reaching up to an impressive 1,600 revolutions per minute, and boasts fine-tuned settings down to 0.5 degrees, ensuring exceptional accuracy across various machinery. Furthermore, its bright, backlit LCD provides clear visibility, while advanced features like advance angle compensation and an intuitive teaching function simplify complex setups, ultimately enhancing operational efficiency.
| Parameter | Specification |
|---|---|
| Product Type | Cam Positioner |
| Number of Outputs | 8 Outputs |
| Output Configuration | NPN Open-Collector Transistor |
| Mounting Method | Surface Mounting / Track Mounting |
| Supply Voltage | 24 VDC (85% to 110% of rated voltage) |
| Power Consumption | Approx. 4 W |
| Max. Response Speed (Encoder Input) | 1,600 r/min (Run Mode: 330 r/min max.) |
| Setting Precision | 0.5¡ã Increments (Cam control precision within 2¡ã) |
| Display Type | Backlit Negative Transmissive LCD |
| Output Capacity (Rated Current) | 100 mA max. (Do not exceed 1.6 A total for all cam outputs and RUN output) |
| Output Residual Voltage | 2 VDC max. |
| Output Response Time (Run Mode) | 0.5 ms max. |
| Ambient Operating Temperature | -10¡ãC to 55¡ãC (no icing) |
| Approved Standards | UL, CSA, EMC (EN50081-2, EN50082-2, EN61326) |
| Dimensions (W x H) | 96 x 96 mm (1/4-DIN size) |
| Weight | Approx. 300 g |
