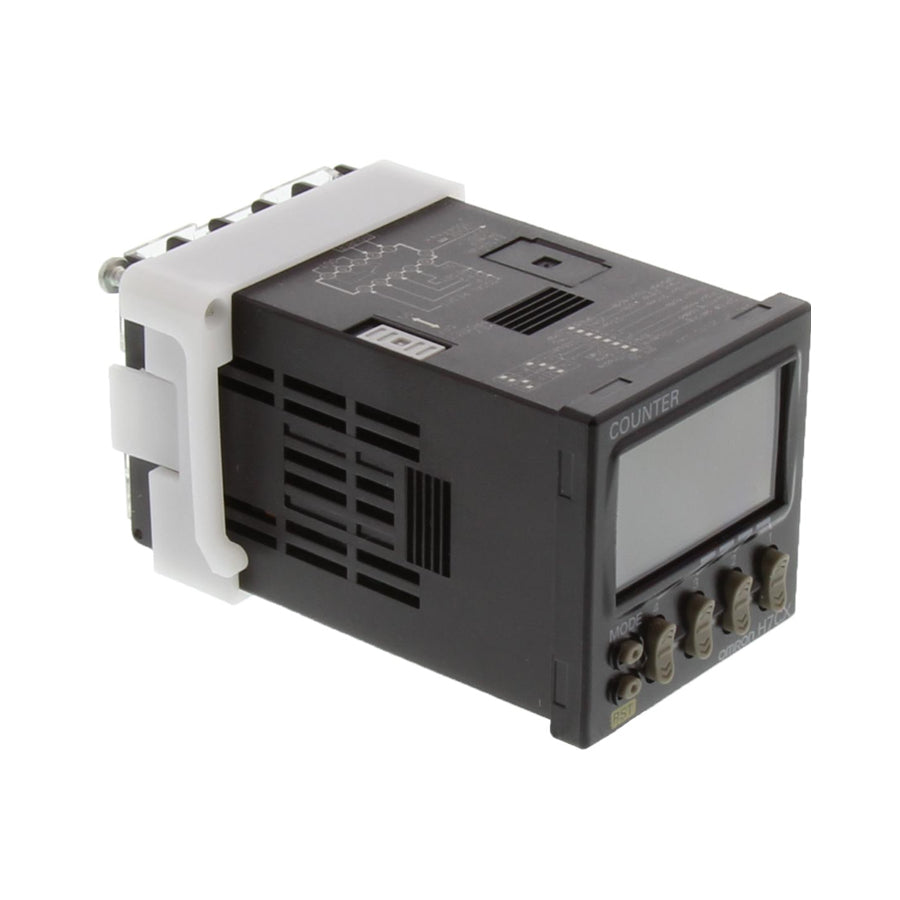

Omron | H7CX-AES-N | Multifunction Counter/Tachometer
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
When precision and adaptability are paramount in your automation systems, the Omron H7CX-AES-N multifunction counter/tachometer emerges as an exemplary choice. This DIN 48 x 48 mm unit doesn't just count; it provides unparalleled visibility through its negative transmissive LCD, boasting a programmable red, green, or orange display for its present value, making status monitoring intuitive even from a distance. Designed for seamless integration, it supports both no-voltage and voltage inputs, readily switchable between PNP/NPN configurations, thereby accommodating a broad spectrum of sensor types. Furthermore, its transistor output ensures reliable control, while robust IP66 front panel protection guarantees durability in challenging industrial environments. Whether you're tracking production counts or monitoring rotational speeds, this device's selectable 30 Hz or 5 kHz counting speed and extensive memory backup capabilities underscore its suitability for critical, high-speed applications.
| Parameter | Specification |
|---|---|
| Model | H7CX-AES-N |
| Classification | Multifunction Preset Counter / Tachometer |
| Display Type | 7-Segment, Negative Transmissive LCD with Backlight |
| Display Digits | 6 Digits (Preset Value & Set Value) |
| PV Display Color | Red, Green, or Orange (Programmable) |
| Supply Voltage | 100-240 VAC, 50/60 Hz |
| Power Consumption | Approx. 9.4 VA (at 100-240 VAC) |
| Input Type | No-voltage Input / Voltage Input (Switchable), PNP/NPN Switchable |
| Max. Counting Speed | 5 kHz (Selectable: 30 Hz / 5 kHz) |
| Output Type | NPN Open Collector Transistor |
| Transistor Output Rating | 100 mA at 30 VDC |
| Protection Class | IP66 / NEMA4 / UL Type 4X (Front Panel, with packing) |
| Mounting Method | Flush Mounting |
| Terminal Type | Screw Terminals |
| Memory Backup | EEPROM (Min. 10 years data retention, 100,000 overwrites) |
| Dimensions (W x H x D) | 48 x 48 x 78 mm (Approx.) |
