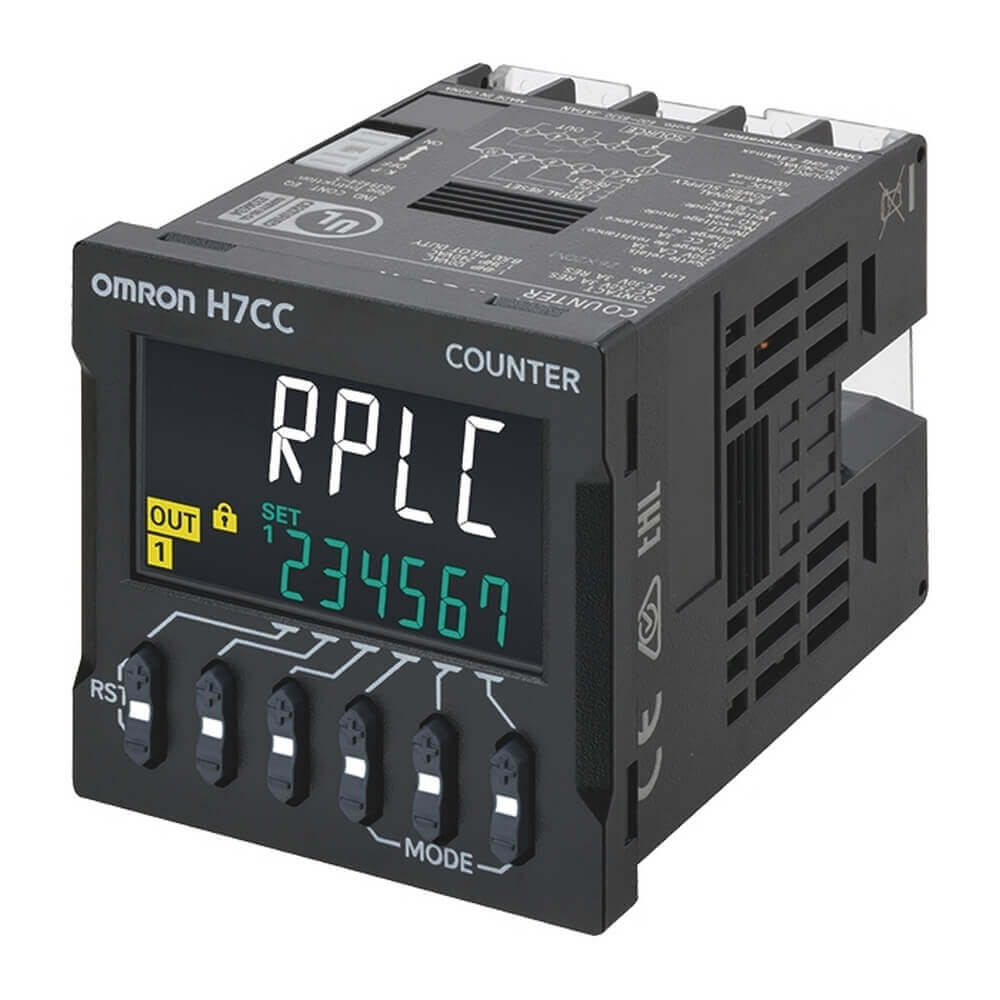

Omron | H7CC-A | Digital Counter (Standard)
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron H7CC-A digital counter delivers precise counting and tachometer functionalities crucial for demanding industrial automation tasks. Engineered with an improved user interface, it significantly streamlines programming and offers enhanced visibility, while its advanced diagnostic features, such as replacement time notification, bolster preventative maintenance strategies. This robust unit excels in various applications, from simple counting to complex batch control and speed measurement.
| Parameter | Specification |
|---|---|
| Power Supply Voltage | 100 to 240 VAC, 50/60 Hz; 24 VAC, 50/60 Hz or 12 to 48 VDC |
| Operating Voltage Fluctuation Range | 85% to 110% of rated supply voltage (DC: 90% to 110%) |
| Power Consumption | Approx. 6.8 VA (100 to 240 VAC); Approx. 5.5 VA/3.3 W (24 VAC/12 to 48 VDC) |
| Mounting Method | Flush mounting or surface mounting (Flush mounting) |
| Degree of Protection | IP66 for panel surface (when Y92S-P6 Waterproof Packing is used) |
| Maximum Counting Speed | 30 Hz or 10 kHz (selectable) |
| Input Modes | Increment (UP), Decrement (DOWN), Increment/Decrement (UP/DOWN A, B, C, D, E) |
| Output Type | Contact output (SPDT, 3 A at 250 VAC/30 VDC) or Transistor output (NPN open collector, 100 mA at 30 VDC) |
| Number of Digits | 6 digits (-99999 to 999999) |
| Display Type | LCD with white backlight (10 mm character height for main display) |
| Memory Backup | Non-volatile memory (100,000 overwrites min., 10 years min. data retention) |
| External Connections | Screw terminals (8-pin/11-pin socket also available for some models) |
| Operating Temperature Range | -10 to 55¡ãC (no icing or condensation) |
| Dimensions (H x W x D) | 48 x 48 x 59 mm (screw terminals model) |
