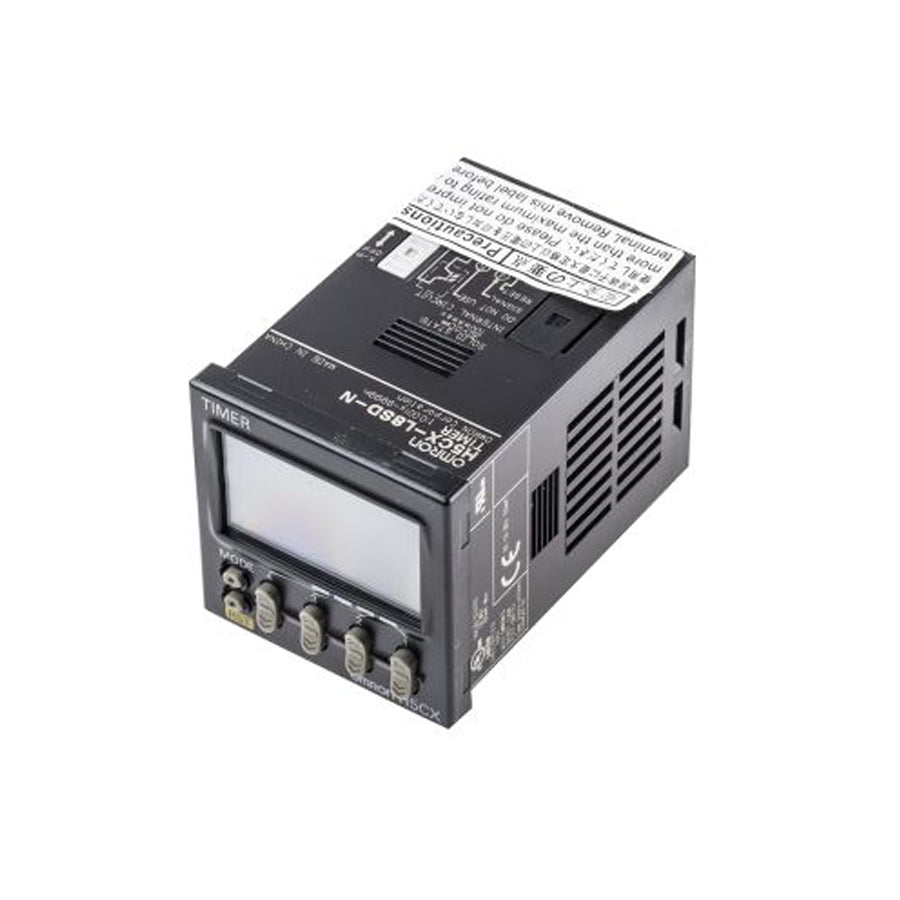

Omron | H5CX-L8SD-N | Multi Function Timer Relay
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting industrial environments, the Omron H5CX-L8SD-N stands out as an incredibly versatile multifunction digital timer. It offers superior timing control across a broad spectrum of applications, from basic power-on delays to intricate twin timer operations. Furthermore, its ultra-compact design ensures easy integration into existing panels, while the highly visible 4-digit display, switchable between red, green, and orange, significantly enhances operational clarity for purchasing managers and control engineers alike. This unit, undeniably a workhorse in its class, provides reliable and precise performance for optimizing your automation processes.
| Parameter | Specification |
|---|---|
| Model | H5CX-L8SD-N |
| Type | Digital Timer, Multifunction |
| Display | 2 rows x 4-digits LCD (PV: 12mm, Red/Green/Orange; SV: 6mm, Green) |
| Time Range | 0.001 seconds to 9999 hours |
| Supply Voltage | 12-24 VDC / 24 VAC (50/60 Hz) |
| Output Type | Transistor Output (NPN, 30 VDC, 100 mA max.) |
| Input Type | No-voltage input / Voltage input (switchable); NPN open collector (SIGNAL, RESET) |
| Mounting | Plug-in, 8-pin DIN rail socket; DIN 48 x 48 mm panel cutout |
| Protection Class | IP66 (Front Panel) |
| Body Depth | 59 mm (for 24 VAC/12-24 VDC models) |
| Operating Modes | 4 Timer modes, 2 Twin Timer modes (e.g., Power ON Delay, Repeat Cycle, Flicker) |
