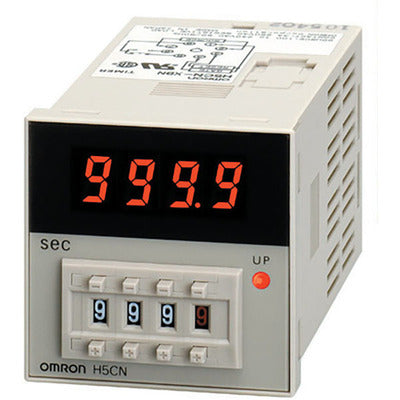

The Omron H5CN-XCN-Z digital quartz timer delivers precise UP display and Power ON-delay output for industrial automation. With a broad 1-second to 99-minute 59-second time range, this compact unit is ideally suited for critical process control applications requiring dependable timing accuracy.
| Parameter | Specification |
|---|---|
| Product Type | Digital Quartz Timer |
| Display Type | UP Display (increments from 0) |
| Rated Time Range | 1 second to 99 minutes 59 seconds |
| Output Mode | N Mode (Power ON-delay) |
| Rated Supply Voltage | 100 to 240 VAC (50/60 Hz), 12 to 48 VDC |
| Control Output | SPDT Contact (3 A at 250 VAC resistive load) |
| Display Method | 7-segment LEDs (10-mm high characters), UP indicator |
| Mounting Method | Flush mounting or Surface mounting |
| Power Consumption | Approx. 12 VA at 240 VAC / 2.5 W at 48 VDC |
| Operating Temperature | -10¡ãC to 55¡ãC (with no icing or condensation) |
| Operating Humidity | 35% to 85% |
| Dielectric Strength | 2,000 VAC, 50/60 Hz for 1 min |
| Insulation Resistance | 100 M¦¸ min. (at 500 VDC) |
| Mechanical Life | 10,000,000 operations min. |
| Electrical Life | 100,000 operations min. (3 A at 250 VAC resistive load) |
| Protection Class | IP66, UL508 Type 4X (front panel) |
| Dimensions (H x W x D) | 48 x 48 x 72.5 mm |
