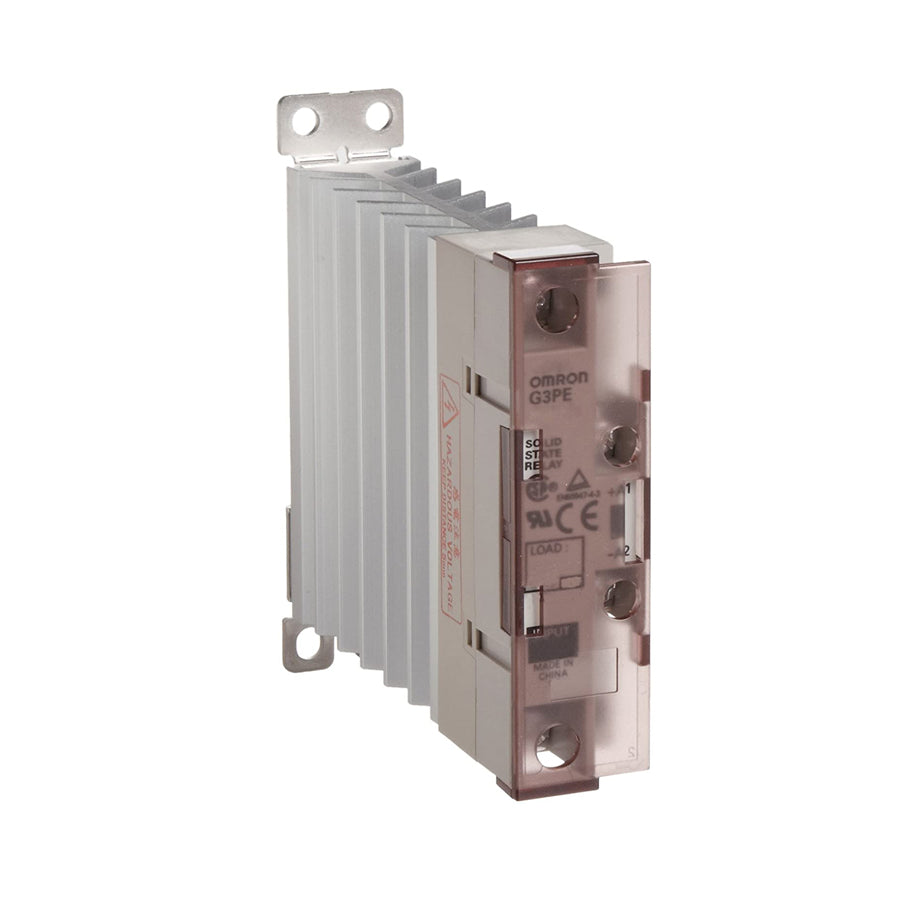

Omron | G3PE-545B-2N-VD | Solid State Contactors
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Omron G3PE-545B-2N-VD three-phase solid state relay is a premier solution for demanding industrial heating applications. Expertly designed with an integrated heatsink, it ensures efficient thermal management, while its zero-cross function minimizes electrical noise during switching, offering superior performance and reliability. Its compact, slim profile and versatile DIN rail or screw mounting options make integration into existing systems remarkably straightforward, and its adherence to UL, CSA, and EN standards further underscores its dependable operation across various environments.
| Parameter | Specification |
|---|---|
| Main Function | Solid State Relay (SSR) for Heater Control |
| Series | G3PE Series |
| Number of Poles | 2-poles (2P) |
| Rated Load Voltage | 200-480 VAC (Operating: 180-528 VAC) |
| Rated Load Current | 45A (at 25¡ãC ambient temp.) |
| Rated Input Voltage (Control) | 12-24 VDC (Operating: 9.6-30 VDC) |
| Zero Cross Function | Equipped |
| Insulation Method | Phototriac Coupler Insulation |
| Output ON Voltage Drop | 1.8 V (RMS) max. |
| Output OFF Leakage Current | 20 mA max. (at 480 Vac) |
| Rated Insulation Voltage (Ui) | 2500 V (50/60Hz; 1 min.) |
| Mounting Type | DIN Rail or Screw Mounting |
| Operating Temperature Range | -30 to +80¡ãC |
