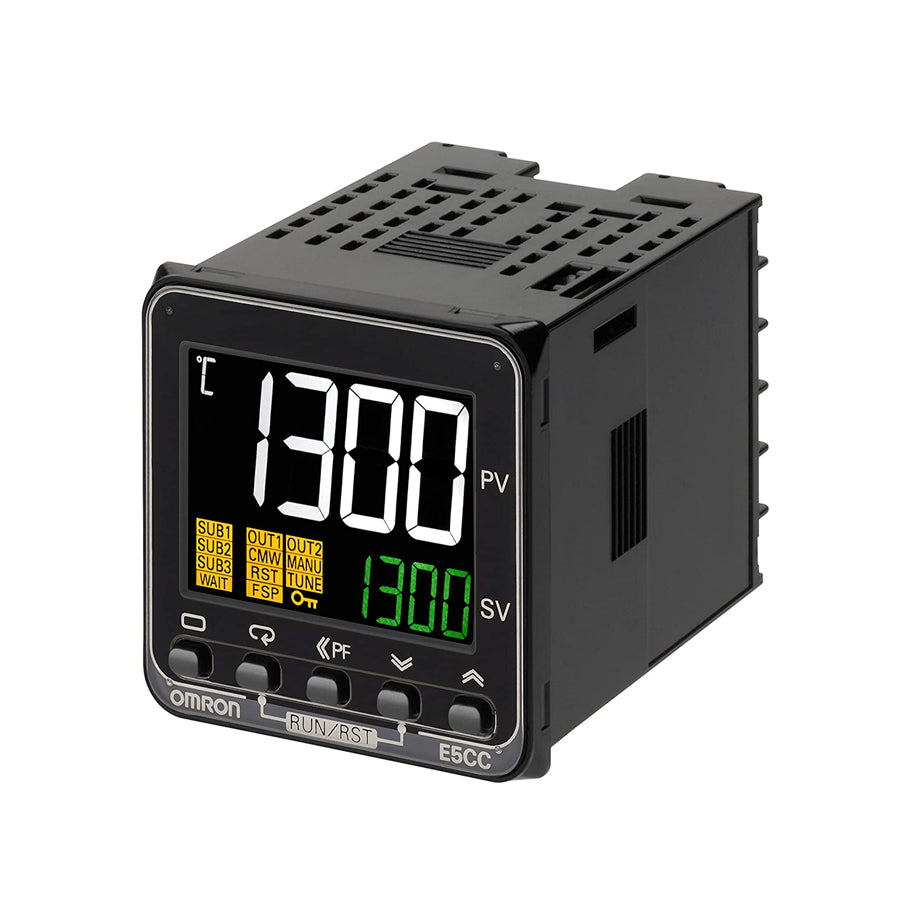

Omron | E5CC-RX2ASM-801 | Digital Temperature Controller
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed for demanding industrial environments, the Omron E5CC-RX2ASM-801 digital temperature controller is an indispensable component for precise thermal management. This compact 48x48mm unit, part of the robust E5CC series, elegantly combines advanced functionality with user-friendly operation. It capably handles complex control tasks through its ON/OFF or sophisticated 2-PID control with auto-tuning, furthermore incorporating a crucial heater burnout detection function to safeguard processes.
Equipped with a highly visible white PV display, engineers and purchasing managers will appreciate its readability, while the flexible input options ¡ª ranging from thermocouples and RTDs to various analog signals ¡ª ensure compatibility across a broad spectrum of applications. Auxiliary relay outputs provide enhanced control capabilities, making this controller a truly adaptable solution for maintaining stable and accurate temperatures within critical systems.
| Parameter | Specification |
|---|---|
| Model Number | E5CC-RX2ASM-801 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) (Heating and Cooling PID settable separately) |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Control Output 1 | Voltage output (for driving SSR) |
| Auxiliary Outputs | 2 x Relay outputs (SPST-NO, 250 VAC, 3 A resistive load) |
| Sensor Input Types | Thermocouple (K, J, T, E, L, U, N, R, S, B, C/W, PL II), RTD (Pt100, JPt100), Infrared Temp. Sensor, Analog (Current: 4-20mA, 0-20mA; Voltage: 1-5V, 0-5V, 0-10V) |
| Event Inputs | 2 x Dry contact inputs |
| Heater Burnout Detection | Yes, 1-channel (requires external CT) |
| Display Type | 2 rows x 4-digits, 11-segment LCD; PV: 15.2mm (White), SV: 7.1mm (Green) |
| Sampling Period | 50 ms |
| Panel Dimensions (W x H) | 48 x 48 mm (1/16 DIN) |
| Protection Class (Front Panel) | IP66 |
| Terminal Type | Screw terminals |
| Mounting Method | Flush mounting on door |
| Ambient Operating Temperature | -10 to 55¡ãC |
