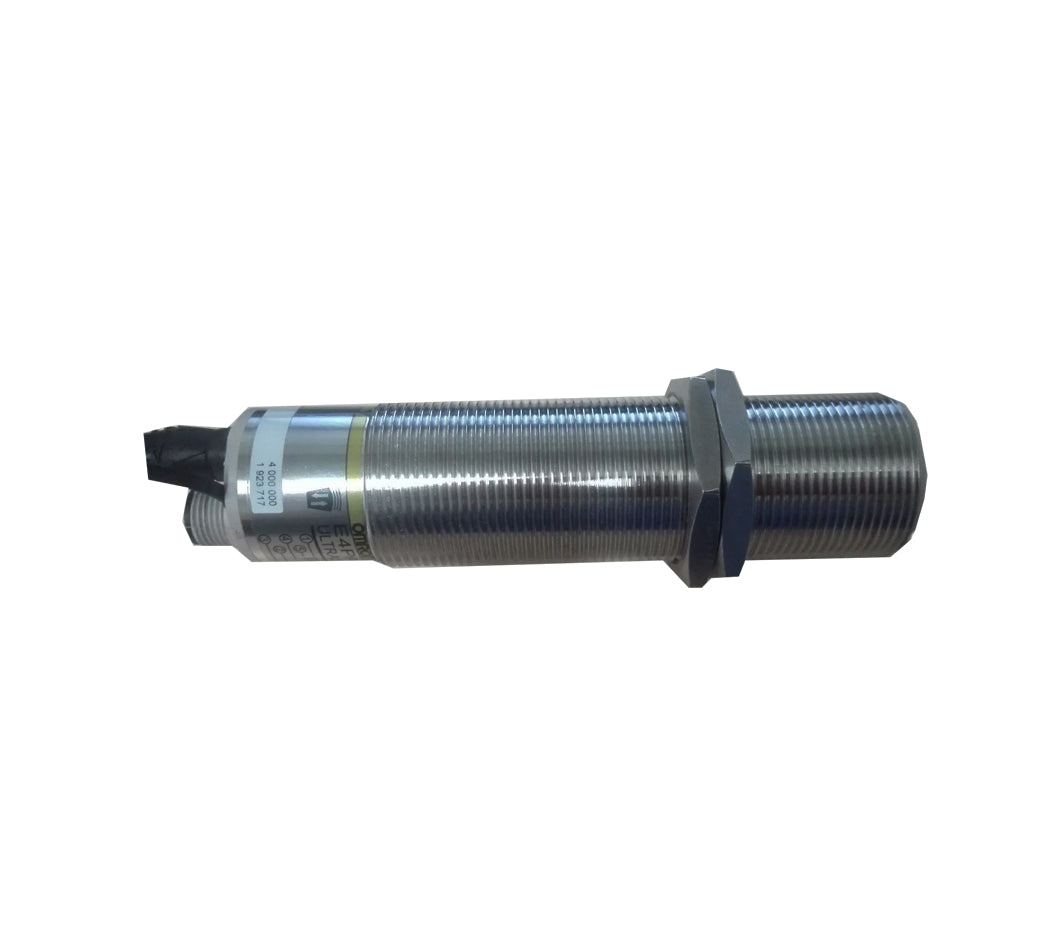

Omron | E4PA-LS200-M1-N | Ultrasonic Displacement Sensor
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for unwavering performance in demanding industrial environments, the Omron E4PA-LS200-M1-N ultrasonic displacement sensor delivers exceptional accuracy across a broad 120 to 2,000 mm sensing range. Remarkably, its ultrasonic principle means detection remains consistently reliable, irrespective of object color or material properties, even accommodating transparent or highly viscous substances. This sensor, a cornerstone of the E4PA-N series, further benefits from an integrated mutual interference prevention function, allowing for multiple units to operate in close proximity without issues, thereby streamlining complex automation tasks and bolstering process control efficacy across diverse applications.
| Parameter | Specification |
|---|---|
| Sensing Range | 120 to 2,000 mm |
| Dead Band Distance | 0 to 120 mm |
| Standard Sensing Object | 100 ¡Á 100 mm flat plate |
| Applied Frequency | Approx. 180 kHz |
| Response Time | 195 ms max. |
| Power Supply Voltage | 10 to 30 VDC; ripple (p-p): 10% max. |
| Power Consumption | 1,800 mW max. |
| Analog Output | Current: 4 to 20 mA (500 ¦¸ max. load); Voltage: 0 to 10 V (1,000 ¦¸ min. load) |
| Protective Circuit | Load short-circuit protection, mutual interference prevention |
| Linearity | ¡À1% FS max. |
| Repeat Accuracy | 0.1% FS max. |
| Operating Ambient Temperature | -10 to 55¡ãC (no icing or condensation) |
| Degree of Protection | IP65 |
| Housing | M18 Threaded Cylindrical, SUS303 Stainless Steel |
| Connection Method | M12 Connector (5-pole) |
| Head Depth | 114 mm |
