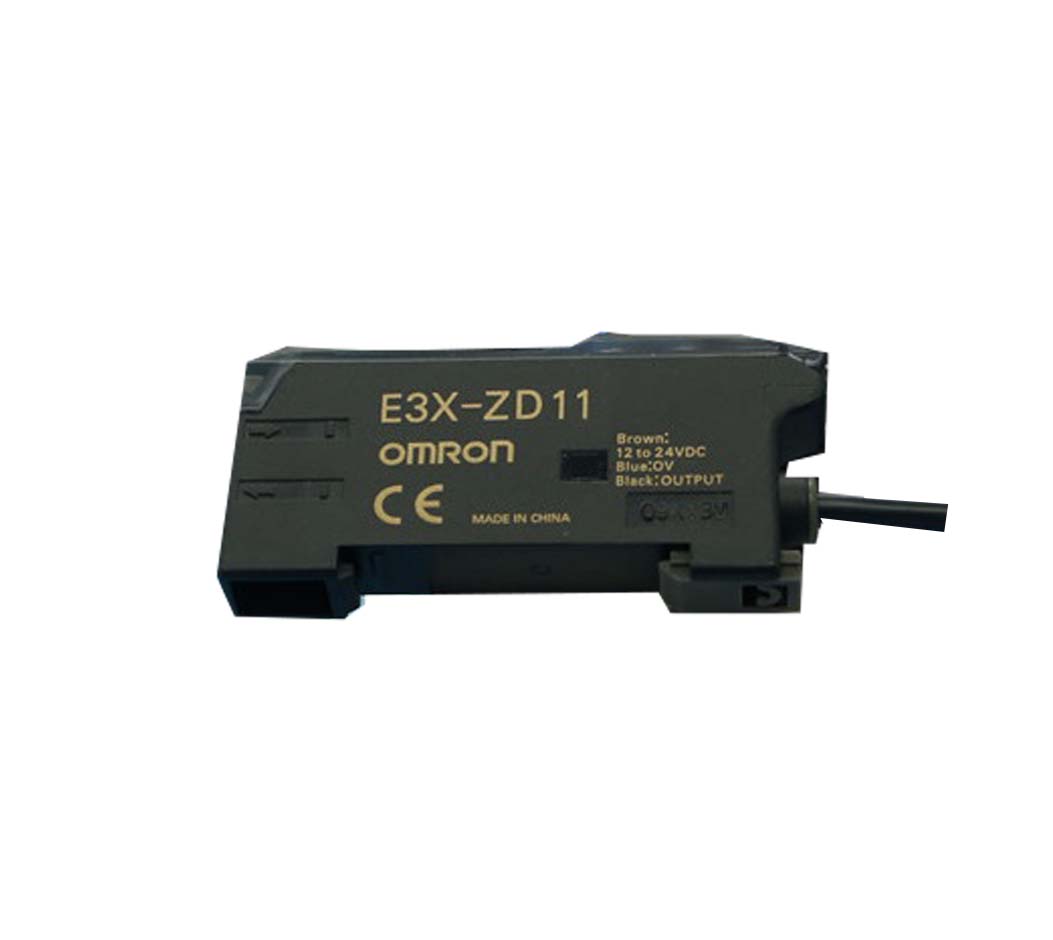

Omron | E3X-ZD11 | Fiber Optic Amplifier
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron E3X-ZD11 stands as a robust digital optical fiber amplifier, purpose-built for high-precision object detection within demanding industrial automation and process control environments. This NPN type amplifier ensures reliable performance across a spectrum of sensing tasks, from assembly line monitoring to intricate inspection systems, offering exceptional sensitivity and rapid response times. Its intuitive teaching function simplifies setup, while durable construction with fluororesin-covered lead wires ensures longevity even in challenging conditions.
| Parameter | Specification |
|---|---|
| Model | E3X-ZD11 |
| Brand | Omron |
| Light Source (Wavelength) | Red AIGALNN LED (620nm) |
| Power Supply Voltage | DC 12 to 24V ±10% Ripple (P-P) 10% max. |
| Power Consumption (Current) | 960mW max. (40mA max. at 24VDC) |
| Control Output | Open collector (NPN or PNP), Load current 50mA max., Residual voltage 1.5V max. |
| Response Time | Action/Reset: 200µs maximum for each |
| Sensitivity Adjustment | Teaching (With/without workpiece/Automatic) or manual adjustment |
| Digital Display | Light power/Threshold 0 to 9999 |
| Protection Circuit | Power reverse protect, output short-circuit protection, reverse output polarity protection |
| Vibration Resistance (Destruction) | 10 to 55Hz, 1.5mm double amplitude for 2h each in X, Y, Z directions |
| Shock Resistance (Destruction) | 500 m/s² for 3 times each in X, Y, Z directions |
| Ambient Illumination | Incandescent lamp: 10,000lx max., Sunlight: 20,000lx max. |
| Ambient Humidity Range | Operating and Storage: 35% to 85% (no condensation) |
