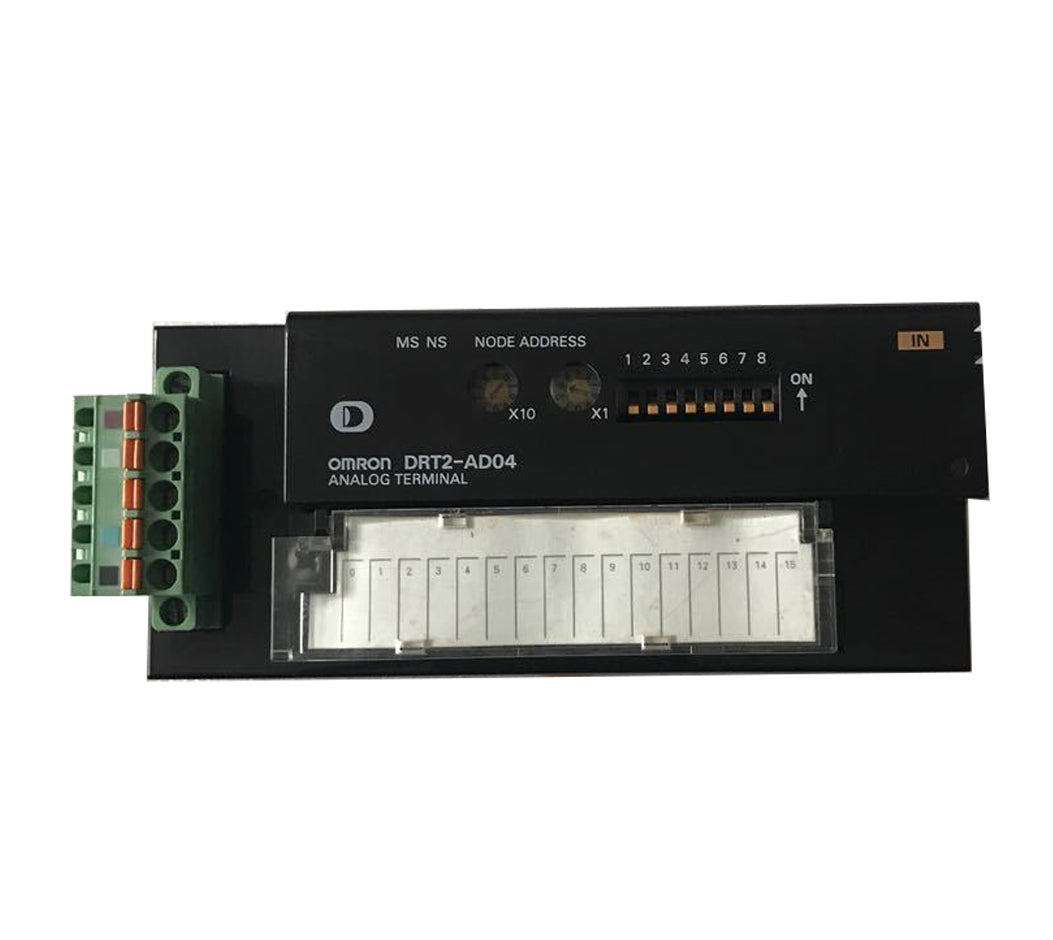

Omron | DRT2-AD04 | Analog Input Terminal
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron DRT2-AD04 stands as a highly capable DeviceNet analog input unit, meticulously engineered for seamless integration into sophisticated industrial automation environments. It¡¯s not just a simple input module; indeed, this versatile terminal excels at performing intricate calculations directly on analog values right within the slave itself. Furthermore, it boasts an impressive resolution of 1/6,000 (full scale), ensuring remarkably accurate data acquisition across a broad spectrum of signal types, ranging from common voltage inputs like 0-10V and ±10V to standard current loops such as 4-20mA. This unit also benefits from Omron's Smart Slave functionalities, which significantly enhance preventative maintenance and troubleshooting efforts, ultimately contributing to a more reliable and efficient operational setup. Its integrated features, including scaling, peak/bottom hold, comparator functions, and cumulative counters, truly allow for sophisticated signal processing right at the edge.
| Parameter | Specification |
|---|---|
| Model | DRT2-AD04 |
| Product Category | Analog I/O Terminal, DeviceNet Slave |
| Number of Analog Inputs | 4 inputs |
| Input Ranges (Signals) | 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 to 10 V, 0 to 20 mA, 4 to 20 mA |
| Resolution | 1/6,000 (full scale) |
| AD Conversion Cycle | Configurable, e.g., 4 ms max. for 4 points |
| Communications Power Supply Voltage | 11 to 25 VDC (from communications connector) |
| Current Consumption | 90 mA max. at 24 VDC |
| Noise Immunity | Conforms to IEC61000-4-4, 2 kV (power line) |
| Dielectric Strength | 500 VAC for 1 min (comm. to analog circuit) |
| Ambient Operating Temperature | -10°C to 55°C (no icing/condensation) |
| Ambient Operating Humidity | 25% to 85% |
| Mounting Method | DIN 35 mm-track mounting |
| I/O Connection Type | Screw terminals |
| Protection Class (IP) | IP20 |
| Weight | 170 g max. |
