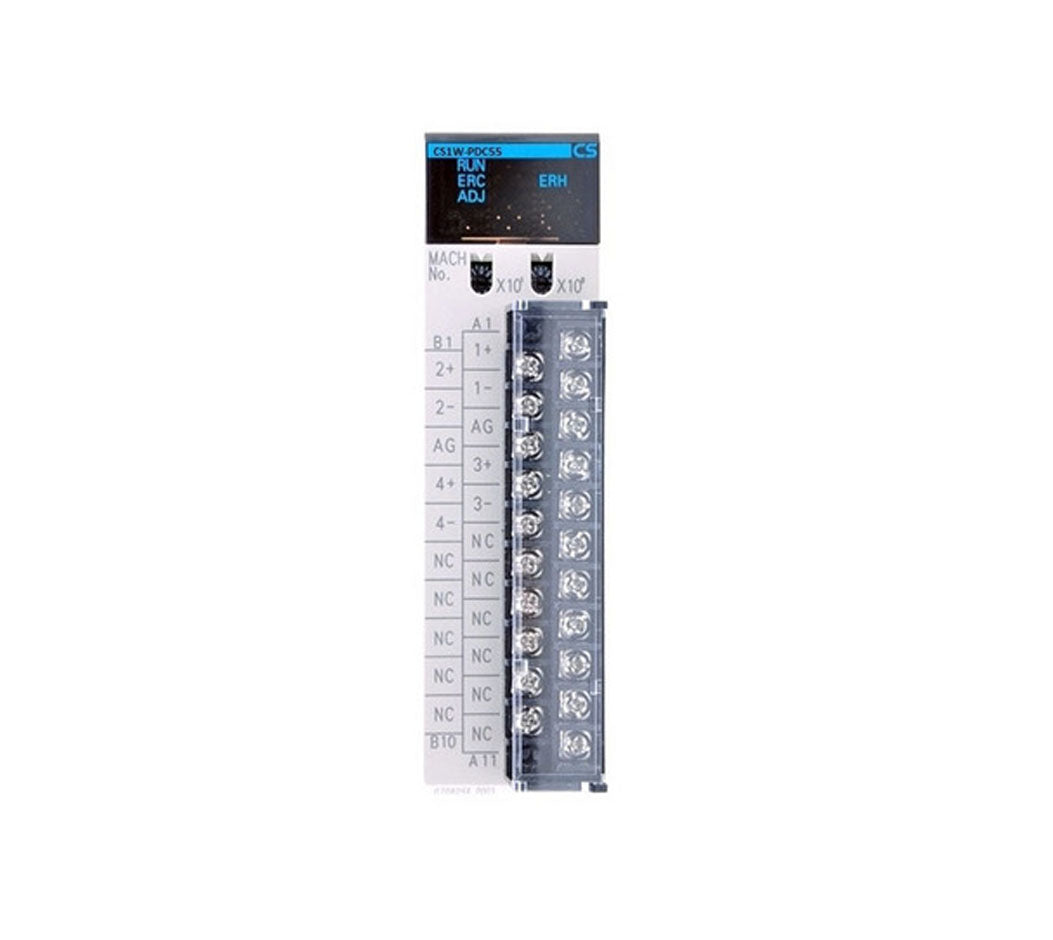

Omron | CS1W-PDC55 | CS-series Process Analog I/O Units
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting industrial environments, the Omron CS1W-PDC55 stands out as a high-performance, isolated DC input unit within the renowned SYSMAC CS-series. This sophisticated module, designed to enhance control system efficiency, expertly handles up to eight distinct analog inputs, converting diverse signal types like 0-10V, 4-20mA, or 1-5V into reliable digital data. Furthermore, its integrated functionalities, encompassing a square root function and comprehensive process value alarms, ensure not only superior data acquisition but also intelligent process monitoring, making it a critical component for optimizing automation workflows and maintaining system integrity.
| Parameter | Specification |
|---|---|
| Unit Type | Isolated-type DC Input Unit |
| Product Series | SYSMAC CS-series |
| Number of Inputs | 8 (Analog) |
| Input Signal Types | 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA (selectable per input) |
| Maximum Input Voltage | 15 V |
| Maximum Input Current | 30 mA |
| Resolution | 1/16,000 of full scale |
| Conversion Period | 250 ms/8 inputs |
| Current Consumption (5V DC) | 0.18 A (0.90 W) |
| Current Consumption (26V DC) | 0.06 A (1.56 W) |
| Dimensions (W ¡Á H ¡Á D) | 35 ¡Á 130 ¡Á 126 mm |
| Weight | 450 g max / 0.45 kg |
| Operating Temperature | 0¡ãC to 55¡ãC |
| Mounting Type | Backplane |
| External Connection Terminals | 24-point removable terminal block (M3 screws) |
| Isolation | Between inputs and between inputs and PLC signals by transformer and photocoupler |
