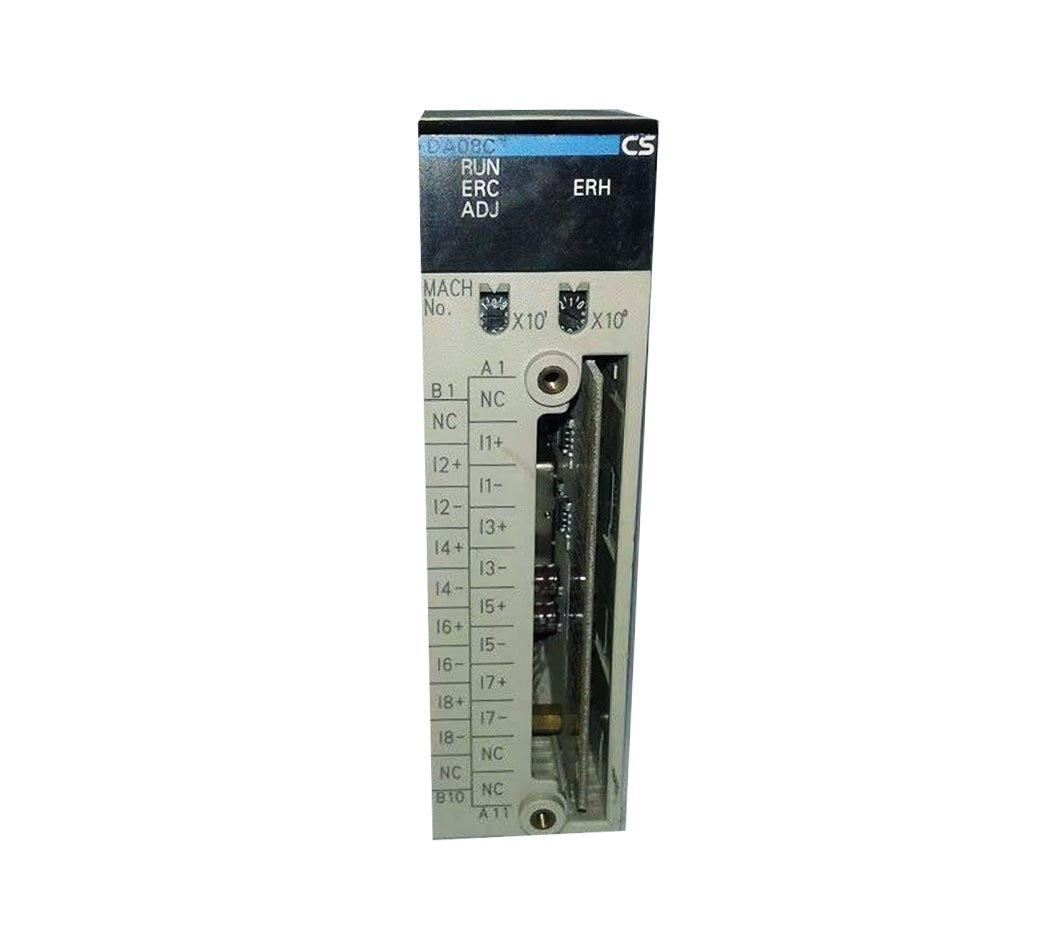

Omron | CS1W-DA08C | Analog Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Omron CS1W-DA08C analog output unit is a pivotal component for precise control within industrial automation and process systems. It seamlessly integrates into your existing SYSMAC CS1 series PLC architecture, consequently empowering you with eight distinct channels of high-resolution, 4-20mA current output. Featuring a rapid D/A conversion time, this module ensures responsive and accurate signal transmission, which is absolutely crucial for controlling actuators, valves, and other analog devices in demanding environments.
| Parameter | Specification |
|---|---|
| Model | CS1W-DA08C |
| Type | Analog Output Unit |
| Number of Output Channels | 8 outputs |
| Output Signal Range | 4 to 20 mA (Current Output) |
| Resolution | 12-bit (4,000 full scale) |
| D/A Conversion Time | 1.0 ms/point max |
| Current Consumption (5 VDC) | 0.13 A (130 mA max) |
| Current Consumption (26 VDC) | 0.25 A (250 mA max) |
| External Connection | 21-point detachable terminal block (M3 screws) |
| Compatible PLC Series | SYSMAC CS1 series |
| Mounting Position | CS-series CPU Rack or CS-series Expansion Rack |
| Dimensions (W x H x D) | 35 ¡Á 130 ¡Á 126 mm |
| Weight | 450 g max |
| Accuracy (23 ¡À 2 ¡ãC) | ¡À0.5% of full scale (Current output) |
| Maximum Permissible Load Resistance | 600 ¦¸ (current output) |
| Isolation | Photocoupler between I/O and PLC signals (No isolation between individual I/O signals) |
